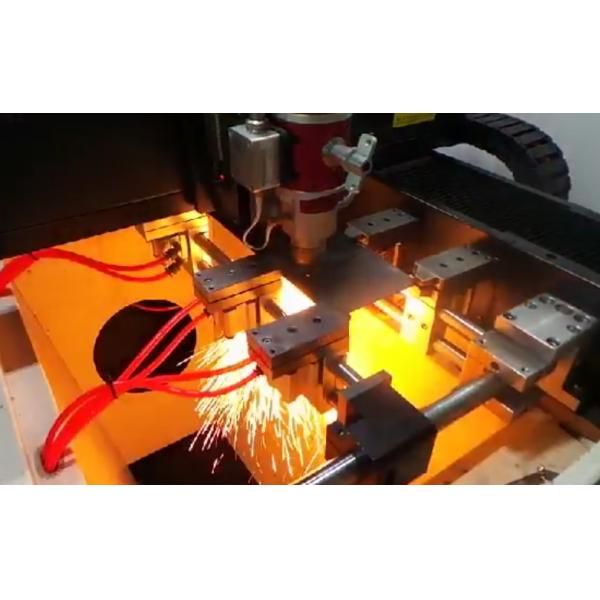

MAX/IPG/RECI 6000W Sheet Metal Fiber Laser Cutting Machine Fully Automatic
MAX/IPG/RECI 6000W Sheet Metal Fiber Laser Cutting Machine Fully Automatic
Specifications
Brand Name :
Herolaser
Model Number :
4020
Certification :
ISO9001/CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
20 sets per month
Delivery Time :
30-45 days
Packaging Details :
Wooden case
Model :
ML-CZ-4020FB
Laser wavelength :
1070nm
Laser output power :
6000W
Positioning accuracy :
±0.03mm/m
Effective cutting :
4000mm*2000mm
Cutting thickness (related to laser power) :
Carbon steel ≤ 22mm; Stainless steel ≤ 14mm; Aluminum alloy ≤ 12mm; Brass ≤ 10mm
Description

4020 Fully Automatic CNC Fiber Laser Cutting Machine MAX/IPG/RECI 6000W

  • Configuration Parameters

Item

Model

Remark

1

Machine tool

ML-CZ-4020FB

Herolaser

2

Numerically controlled system

CypCut

China

3

X/Y1/Y2/Z Servo drive motor

YASKAWA

Japan

4

High-precision disc gearbox

MOTOREDUCER

France

5

High precision inclined rack

YYC

Taiwan, China

6

Z-axis screw

TBI

Japan

7

Linear guide rail

HIWIN

Taiwan, China

8

Laser device

MAX/IPG

China/Germany

9

Cutting head

Empower/ Precitec

China/Germany

10

Cooling-water machine

Teyu

China

11

Pneumatic components

SMC (or equivalent)

Japan

12

Electrical components

Schneider (or equivalent)

France

13

Technology of machine tool

Whole welding annealing vibration aging finishing

China

14

Dedusting and ventilation system

Jiuzhou

China


(Note: in case of brand replacement due to delivery date or model change of supplier's products, we only use high-quality products of the same brand, different series or similar brands in the industry, which will never reduce the product quality.)

  • Technical Specifications

Item

Technical parameters

1

Model

ML-CZ-4020FB

2

Laser wavelength

1070nm

3

Laser output power

6000W

4

Effective cutting range

4000mm*2000mm

5

Cutting thickness (related to laser power)

Carbon steel ≤ 22mm; Stainless steel ≤ 14mm; Aluminum alloy ≤ 12mm; Brass ≤ 10mm

6

Positioning accuracy

±0.03mm/m

7

Repeat positioning accuracy

±0.02mm/m

8

Synthesis speed

120m/min

9

Acceleration during idle operation

1.0G

10

Machine tool load-bearing

1500KG

11

Electricity demand

AC380V±5%/50Hz

12

Overall power consumption

80KW

13

Machine dimensions

11500x3400x2100(mm)

14

Machine weight

Around 9.5T

15

Support graphic format

plt/dxf...
