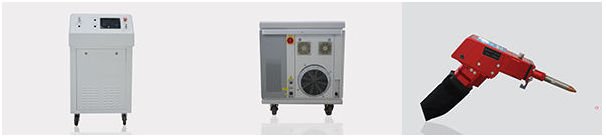

1500W Auto Feeding Handheld Laser Welding Machine For Stainless Steel
1500W Auto Feeding Handheld Laser Welding Machine For Stainless Steel
1500W Auto Feeding Handheld Laser Welding Machine For Stainless Steel
1500W Auto Feeding Handheld Laser Welding Machine For Stainless Steel
1500W Auto Feeding Handheld Laser Welding Machine For Stainless Steel
1500W Auto Feeding Handheld Laser Welding Machine For Stainless Steel
1500W Auto Feeding Handheld Laser Welding Machine For Stainless Steel
1500W Auto Feeding Handheld Laser Welding Machine For Stainless Steel
1500W Auto Feeding Handheld Laser Welding Machine For Stainless Steel
1500W Auto Feeding Handheld Laser Welding Machine For Stainless Steel
1500W Auto Feeding Handheld Laser Welding Machine For Stainless Steel
1500W Auto Feeding Handheld Laser Welding Machine For Stainless Steel
Specifications
Brand Name :
Herolaser
Model Number :
ML-1500
Certification :
CE, SGS
Place of Origin :
CHINA
MOQ :
1 SET
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
100 SETS PER MONTH
Delivery Time :
10-15DAYS
Packaging Details :
PLYWOOD BOX
Pulse width :
0.5~20ms
Condition :
New
Warranty :
2 Years
Single pulse energy :
80J
Wavelength :
1064nm
Focal spot diameter :
0.2mm~3mm
Cooling system :
Water Cooling
Welding depth :
0.1-3.5mm
Pulse frequency :
0~100Hz
Power supply :
220v/50Hz, 380V/50/60HZ
Laser type :
IPG/MAX/RECI
Keywords :
Laser Welding Machine
Max. output power :
300-500w
Description

Handheld Laser Wobble Welding Equipment 1500W Fiber Laser Solution

  • The welding speed is 2-10 times faster than the traditional welding speed. It can help you to save at least two welders each year;
  • Laser welding consumes less material and has a long life;
  • Easy to operate, even unskilled operator can weld products beautifully;
  • The welding seam is smooth and small, which reduces the subsequent grinding process and saves time and cost;
  • No deformation, no welding spot;
  • Safer and more environment-friendly.

Hand-held Laser Welding VS Argon Welding

Welding type Argon welding Laser welding
Labor workers 4 1
One person’s Labour cost/month 8000 RMB 6000 RMB
Polishing worker 1 0
Polishing worker’s cost/month 9000 RMB 0
Total labour cost per month 41000 RMB 6000 RMB
Total income for labour worker/year 492000 RMB 72000 RMB

1500W Auto Feeding Handheld Laser Welding Machine For Stainless Steel

Specification

No. Item ML-WF-1500W
1 Laser Power 1500W
2 laser Wavelength 1070 NM
3 Fiber Cable length 10 meters
4 Cooling method Water
5 Voltage 220V
6 Power consumption 5KW
7 Frequency 50/60 HZ
8 Currency 23A
9 Laser gun Motor/lens wobble
10 Focus length 150mm
11 Cryogenic water flow 70 L/min
12 Room temperature water flow 15 L/min
13 water distilled water
14 laser Control method laser enable+ security lock+ metal switch/ safety clamp
15 Touch screen PLC screen and board
16 Wire feeder Auto feeding and drawback

Application
Ambry industry, railings of stairs and elevator, shelves, oven, stainless steel guardrail, distribution box, stainless steel home supplies etc.

1500W Auto Feeding Handheld Laser Welding Machine For Stainless Steel
