CCD Vision IPG Laser Robotic Arm Welder With With Wobble Welding Head
CCD Vision IPG Laser Robotic Arm Welder With With Wobble Welding Head
CCD Vision IPG Laser Robotic Arm Welder With With Wobble Welding Head
CCD Vision IPG Laser Robotic Arm Welder With With Wobble Welding Head
CCD Vision IPG Laser Robotic Arm Welder With With Wobble Welding Head
CCD Vision IPG Laser Robotic Arm Welder With With Wobble Welding Head
Specifications
Brand Name :
Purple Horn
Model Number :
ML-WF-4D-3000W
Certification :
CE, FDA
Place of Origin :
China
MOQ :
1 SET
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
50 sets/month
Delivery Time :
15-20 days
Packaging Details :
Wooden case package
Laser source brand :
IPG/MAX/RECI
Laser head brand :
Purple Horn
Wavelength :
1070nm
Power Supply :
380VAC ± 10% / 50HZ
Dimensional :
1200 x 1300 x 1400mm
Laser Type :
Continuous laser
After-sales services :
Online support, Video technical support
Warranty :
24 months
Description

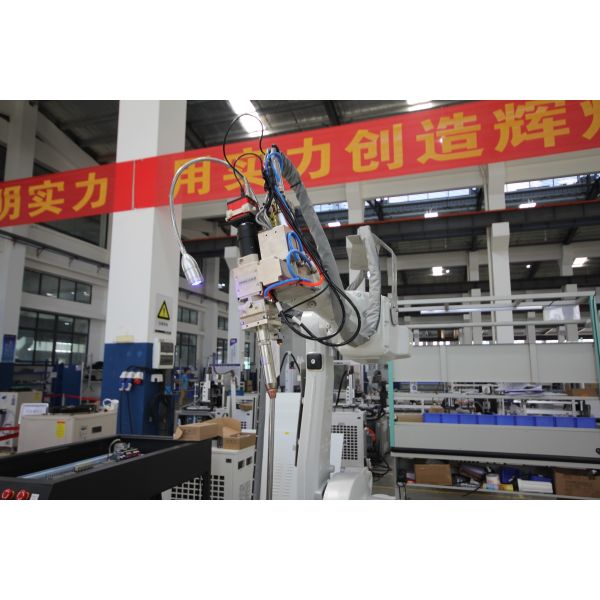

Wobble Welding Robot Laser Welding Machine with Automatic Wire Feeding

Product introduction:

The robot laser welding system consists of fiber laser, laser power supply, control system, laser indicating and positioning system, motion system, rotation system, swing laser welding joint, cooling system and so on. Laser generator adopts imported fiber laser, laser pulse waveform can be edited arbitrarily, high stability of energy output.

Laser welding joints adopt Purple Horn laser welding joints independently developed, with high welding stability and flexibility, can be 360 degrees of rotation and swing welding.

The cooling system of fiber laser welding machine consists of temperature measuring device, water circulation, radiator and deionized resin. The temperature measuring device detects the water temperature in the water tank in real time to judge whether the water temperature is too high. If the temperature exceeds the upper limit, the system will automatically shut down the laser to avoid damaging the laser. After the machine is opened, the water cycle and the radiator form heat exchange with the outside world, and quickly take away the heat generated when the laser works, to ensure the normal operation of the laser. The integrated design of cooling system and whole machine makes the system more concise and occupies a small area.

Product parameters:
Laser power
1500W
2000W
3000W
Laser wavelength
1080±10nm
Robot
Six-axis welding robot
Maximum load on wrist
12KG
Repositioning accuracy
±0.03mm
Range of motion
Lower arm
J1
340º/370º
J2
235º
J3
455º
Upper arm
J4
380º
J5
380º
J6
900º
Max speed
Lower arm
J1
260º/s
J2
240º/s
J3
260º/s
Upper arm
J4
430º/s
J5
450º/s
J6
720º/s
Thickness of welding material
≤4mm
≤6mm
≤8mm
Welding gap requirements
≤0.3mm
Voltage
380V±10%
Total power
≤8kw
≤10kw
≤12kw
Gross weight
200KG

Main Configuration:

Laser source IPG/MAX/RECI brand
Control System Android system
Computer Standard computer,win 7
Observing System CCD visual
Rotary Optional

Welding software: Android System or DSP1.0

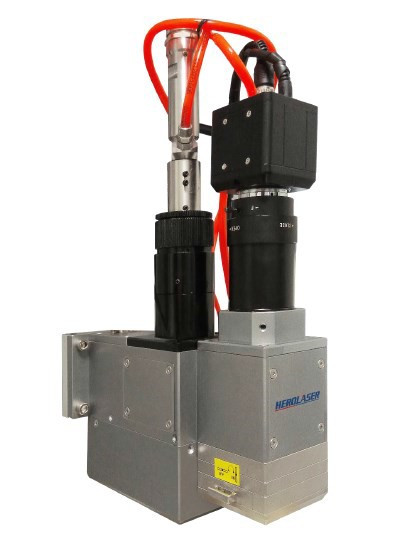

CCD vision

Wobble welding head

CCD Vision IPG Laser Robotic Arm Welder With With Wobble Welding Head

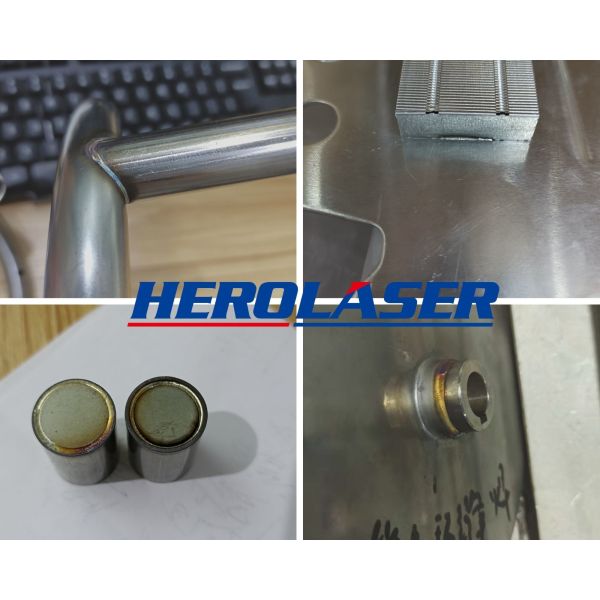

Samples for reference:
CCD Vision IPG Laser Robotic Arm Welder With With Wobble Welding Head
F&Q:
1. How is the payment?
  • 30% deposit before production and the balance 70% before shipment
2. How is the delivery and shipment?
  • Ship in 7 days after 100% payment;
  • Plywood box packaging
3. How will you guarantee aftersales services?
  • We offer two warranty for laser source, one year for whole machine and lifetime maintenance services.
  • Engineers available to service machinery overseas
  • Free technical training in our factory
  • Free sample can be sent to you
  • Professional technical team 24 hours online
4. How about your presales service?
  • Speeding offer within 8 hours quick response and free consulting.
  • Free sample welding or testing is available
  • Progressing solution design to all clients, including distributors and end users.
