ABB YASKAWA Robot Arm 3000W IPG Laser Welding Machine
ABB YASKAWA Robot Arm 3000W IPG Laser Welding Machine
ABB YASKAWA Robot Arm 3000W IPG Laser Welding Machine
ABB YASKAWA Robot Arm 3000W IPG Laser Welding Machine
Specifications
Brand Name :
Herolaser
Model Number :
ML-WF-4D-3000W
Certification :
CE, FDA
Place of Origin :
China
MOQ :
1 SET
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
50 sets/month
Delivery Time :
15-20 days
Packaging Details :
Wooden case package
Laser source brand :
IPG
Laser head brand :
Herolaser
Wavelength :
1070nm
Power Supply :
380VAC ± 10% / 50HZ
Dimensional :
1200 x 1300 x 1400mm
Laser Type :
Continuous laser
After-sales services :
Online support, Video technical support
Warranty :
24 months
Description

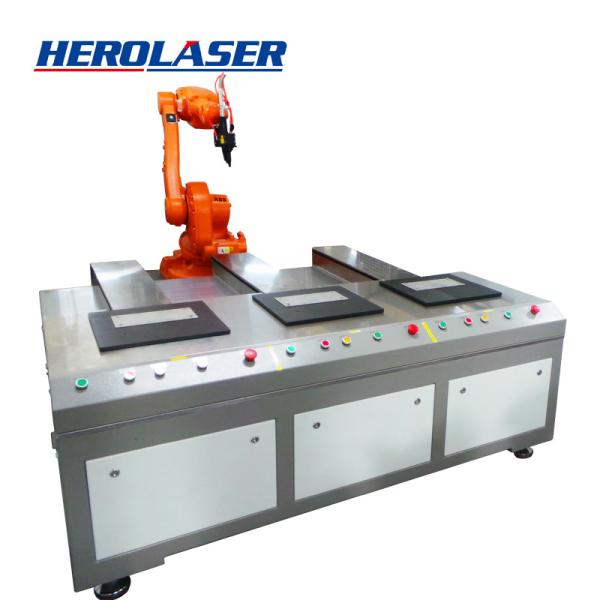

Robot Laser Welding Machine with ABB YASKAWA Robot Arm

Product introduction:

The product is mainly composed of fiber laser, cooling system, robot system, power control system, double station feeding system and so on. With safety protection performance; The whole system has a very perfect anti-static treatment system. The equipment is easy to use, operate and maintain, beautiful in appearance and does not pollute the environment.
It is characterized by narrow weld, large length-diameter ratio, small deformation, good weld surface forming and good material adaptability.
The equipment is easy to operate, electrical safety, personal safety and health in accordance with the European and Chinese standards and requirements.

Features and advantages:

  • The fiber laser spot is very small, the heat affected zone is small, the deformation is small, the welding speed is super-fast.
  • Fiber laser service life of 100,000 hours, complete no consumables, daily maintenance is more convenient.
  • 30% of the energy provided by the power supply is converted into laser energy, making the equipment more energy saving and electricity saving.
  • CCD LCD monitoring and observation system, can clearly observe the product positioning and welding effect according to the red light indication.
  • Fiber laser multi-mode welding, according to the requirements of the product can be freely converted pulse and continuous mode.
  • It can be difficult to approach the precise parts, the implementation of flexible transmission of non-contact welding, has a great flexibility, adapt to a variety of complex products seam welding, welding, butt welding, stack welding, etc.
Product parameters:
Model ML-WF-4D
Average laser power 1000w 1500w 3000w
Max laser power 1000w 1500w 3000w

Max energy of single pulse

85J

110J

150J
Laser wavelength 1070nm
Laser weld depth 0-3 mm(up to material)
Laser welding frequency 1HZ-5000Hz
Spot size range 0.3-2mm
Power Supply 380VAC ± 10% / 50HZ
Power Consumption 5KW 6KW 8KW
Dimensional 1200 x 1300 x 1400mm
Weight 220 250 270
Cooling Way Water cooling
Laser Type Continuous laser
IPG Laser IPG made in Germany

Main Configuration:

Item Spec. Qty
Robot

ABB1600

repeated position accuracy 0.05mm

 1 set
Fiber laser source IPG 1 set
Wobble welding head Herolaser 1 set
Control cabinet Herolaser 1 set
Software Herolaser 1 set
CCD observation system Welding purpose 1 set
PLC FX-3U-48MT (MITSUBISHI) 1 set

Applicable Industry:


Mobile communication;Electronic component;Medical instrument;Auto components;Mould repairing.


Applicable Materials:


Materials that can be welded are extensive: cold work alloy steel, hot work alloy steel, nickel tool steel, steel alloy, high tenacity aluminum alloy, etc. Other metals like gold, silver, brass, aluminum-magnesium alloy, titanium, and platinum are also applicable.

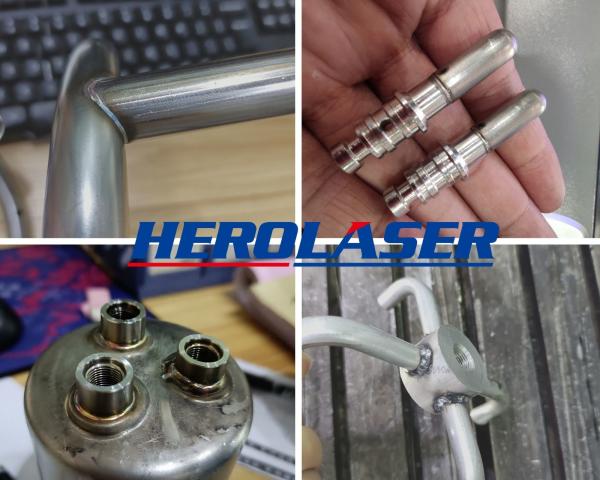

Samples for reference:
ABB YASKAWA Robot Arm 3000W IPG Laser Welding Machine
F&Q:
1. How is the payment?
  • 30% deposit before production and the balance 70% before shipment
2. How is the delivery and shipment?
  • Ship in 7 days after 100% payment;
  • Plywood box packaging
3. How will you guarantee aftersales services?
  • We offer two warranty for laser source, one year for whole machine and lifetime maintenance services.
  • Engineers available to service machinery overseas
  • Free technical training in our factory
  • Free sample can be sent to you
  • Professional technical team 24 hours online
4. How about your presales service?
  • Speeding offer within 8 hours quick response and free consulting.
  • Free sample welding or testing is available
  • Progressing solution design to all clients, including distributors and end users.
