380VAC CNC 6 Axis Robot Laser Welding Machine With Purple Horn Head
380VAC CNC 6 Axis Robot Laser Welding Machine With Purple Horn Head
380VAC CNC 6 Axis Robot Laser Welding Machine With Purple Horn Head
380VAC CNC 6 Axis Robot Laser Welding Machine With Purple Horn Head
Specifications
Brand Name :
Purple Horn
Model Number :
ML-WF-6D-2000W
Certification :
CE, FDA
Place of Origin :
China
MOQ :
1 SET
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
50 sets/month
Delivery Time :
15-20 days
Packaging Details :
Wooden case package
Laser source brand :
IPG/MAX/RECI
Laser head brand :
Purple Horn
Wavelength :
1070nm
Power Supply :
380VAC ± 10% / 50HZ
Dimensional :
1200 x 1300 x 1400mm
Laser Type :
Continuous laser
After-sales services :
Online support, Video technical support
Warranty :
24 months
Description

CNC Robot Laser Welding Machine with 6 Axis Robotic Process Automation

Product introduction:

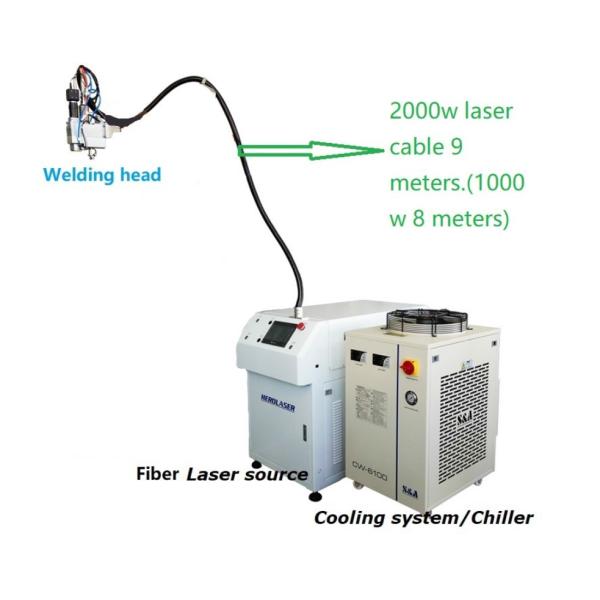

The robot laser welding system consists of fiber laser, laser power supply, control system, laser indication and positioning system, motion system, rotating system, WOBBLE laser welding joint, cooling system and so on. Laser generator adopts imported fiber laser, laser pulse waveform can be edited arbitrarily, high stability of energy output.


Laser welding joint adopts laser welding joint independently developed by Purple Horn, which has very high welding stability and flexibility, and can be welded by 360 degrees rotation and swing.


The cooling system of fiber laser welding machine is composed of temperature measuring device, water circulation, radiator and deionized resin. The temperature measuring device detects the water temperature in the water tank in real time and judges whether the water temperature is too high. If the temperature exceeds the upper limit, the system will automatically shut down the laser to avoid damage to the laser. After the machine is opened, the water circulation and the radiator form heat exchange with the outside world, which quickly takes away the heat generated when the laser is working to ensure that the laser works normally. The cooling system and the whole machine adopt the integrated design, which makes the system more concise and occupies a small area.

Wobble double wedge swing welding joint technical characteristics:

Purple Horn’s patented wobble welding technology is the first in China. In laser welding head WOBBLE configuration module, its unique way of wedge vibration makes weld widened, wide range of laser welding application, for more master pieces, weld wider artifacts can realize high precision laser welding, and welding quality effect is better than common welding head, weld surface is relatively smooth, beautiful, good welding quality.


1. The allowable range of weld width is expanded
2. Extremely high process repeatability/process stability
3. Better weld formability
4. High quality spot welding
5. Lower requirements for laser power
6. Excellent welding ability of aluminum alloy

Product parameters:
Model No. 500W/1000W/1500W/2000W/3000W
Wavelength 1070nm
Work mode Continuous/modulation
Control cabinet HPurple Horn laser control system
Positioning CCD and red light position
Cooling Water cooling
Power consumption 5kw~12kw
Cooling system Water cooling
Power supply 220V±10%, 50Hz/60Hz AC

Main Configuration:

Item Spec. Qty
Fiber laser source IPG 2000W 1 set
Wobble welding head Purple Horn 1 set
Control cabinet Purple Horn 1 set
Software system Purple Horn 1 set
CCD observation system Welding purpose 1 set
Cooling system S&A Teyu 1 set
Automatic wire feeding system Purple Horn 1 set

Consumable parts:

Item Model Reference price Replacement period
Deionized water No requirement 10 Euro 1 month
Protective lens Dia. 30mm 25 Euro Up to actual usage

Application:

Suitable for welding of stainless steel, iron sheet, aluminum, copper, alloy, steel, diamond equivalent materials or dissimilar materials, cabinets, kitchens, stair elevators, shelves, ovens, stainless steel doors and windows guardrails, distribution boxes, Stainless steel household and other industries.

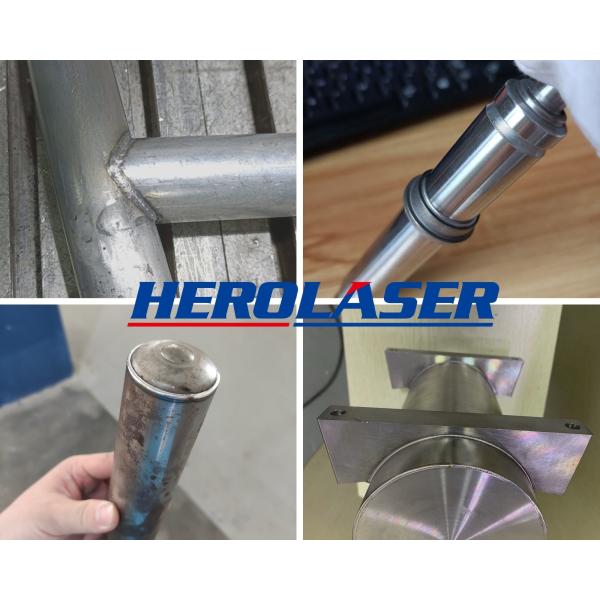

Samples for reference:
380VAC CNC 6 Axis Robot Laser Welding Machine With Purple Horn Head
F&Q:
1. How is the payment?
  • 30% deposit before production and the balance 70% before shipment
2. How is the delivery and shipment?
  • Ship in 7 days after 100% payment;
  • Plywood box packaging
3. How will you guarantee aftersales services?
  • We offer two warranty for laser source, one year for whole machine and lifetime maintenance services.
  • Engineers available to service machinery overseas
  • Free technical training in our factory
  • Free sample can be sent to you
  • Professional technical team 24 hours online
4. How about your presales service?
  • Speeding offer within 8 hours quick response and free consulting.
  • Free sample welding or testing is available
  • Progressing solution design to all clients, including distributors and end users.
