Mini Portable Purple Horn 4mm Laser Welding Machine For Metal SS
Mini Portable Purple Horn 4mm Laser Welding Machine For Metal SS
Mini Portable Purple Horn 4mm Laser Welding Machine For Metal SS
Mini Portable Purple Horn 4mm Laser Welding Machine For Metal SS
Mini Portable Purple Horn 4mm Laser Welding Machine For Metal SS
Mini Portable Purple Horn 4mm Laser Welding Machine For Metal SS
Mini Portable Purple Horn 4mm Laser Welding Machine For Metal SS
Mini Portable Purple Horn 4mm Laser Welding Machine For Metal SS
Mini Portable Purple Horn 4mm Laser Welding Machine For Metal SS
Mini Portable Purple Horn 4mm Laser Welding Machine For Metal SS
Specifications
Brand Name :
Purple Horn
Model Number :
ML-W-1000
Certification :
ISO9001, FDA
Place of Origin :
China, Shenzhen
MOQ :
1 Set
Price :
USD 4999~8600/Set
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
180 sets/month
Delivery Time :
7 work days
Packaging Details :
Wooden Case
welding thickness :
0-5mm
Laser Wavelength :
1060nm~1070nm
Technical :
Continuous wave / PULSE
Welding Depth :
0.5 ~2.5 mm
Welding gap :
≤ 0.5(mm)
Welding speed :
0-120mm/s
Application material :
Aluminum Stainless Steel Carbon Steel Copper Iron
Cooling method :
Water Cooliing
Control :
Manual
Dimension :
1100 mm*600 mm*1700 mm
Description

Product Description

Purple Horn Mini Portable 4mm Laser Welding Machine for Metal SS

Model ML-500w
Average laser power 500w
Max laser power 3000w
Max energy of single pulse 75J
Laser wavelength 1064nm
Laser weld depth ≤ 5mm
Pulse width 0.3-20ms
Laser welding frequency 0.5 -100HZ
Spot size range 0.2-2mm
Welding wire 0.1-0.4mm
Power Supply 380VAC ± 10% / 50-60HZ
Power Consumption 2KW
Water pressure protection 0.025MPa
Cooling water temperature 35 degrees
Temperature protection 45 degrees
Cooling water flow 10L/min
Dimensional 1000mm x 630mm x 940mm
Weight 150kg
Cooling Way Water cooling
Laser Type Pulse

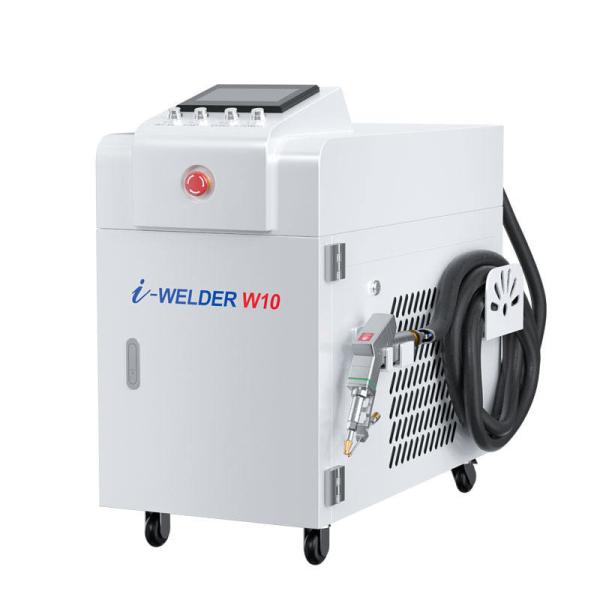

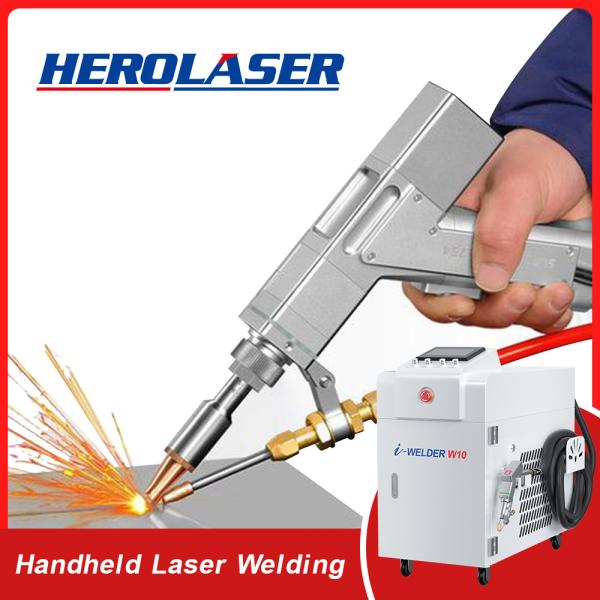

Features for handheld laser welding machine

1) Mini Machine: 1000*630*940(mm)(L*W*H), whoile machine weight: 150kg
2) With Wheels: The machine with wheels that no matter how heavy it is, it can be moved with a slight push
3) Optical fiber line: 5m, Various length options
4) Water cooling design, protective gas design for workpiece
5) Except on / off button on machine, But also on / off button on welding gun, More safety for user.
Mini Portable Purple Horn 4mm Laser Welding Machine For Metal SS

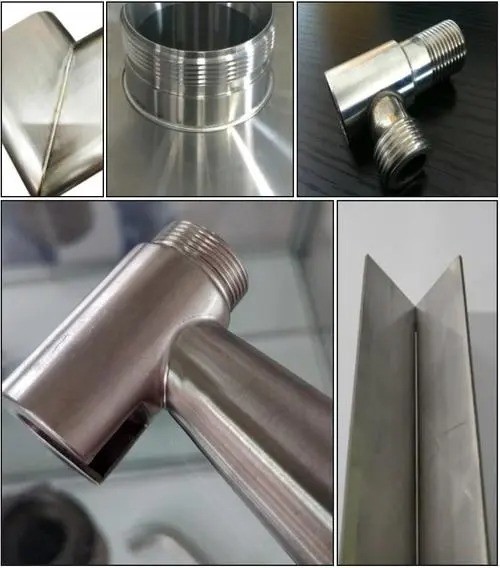

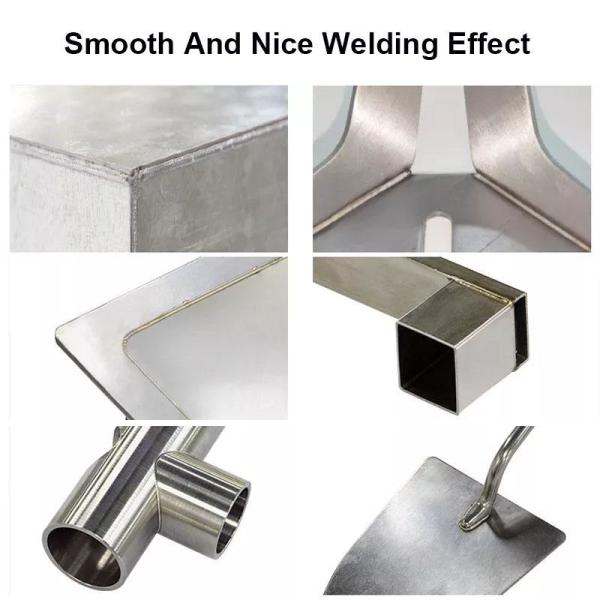

Applied to various metal material, such as stainless steel carbon steel brass copper aluminum aluminum alloy iron
(Purple Horn CE ROHS Welding Device for Butt Fusion Automatic Wire Feeding Portable Laser Welding Machine)
