2000w Herolaser Laser Cutting Machine For Metal Sheet 1070nm
2000w Herolaser Laser Cutting Machine For Metal Sheet 1070nm
2000w Herolaser Laser Cutting Machine For Metal Sheet 1070nm
2000w Herolaser Laser Cutting Machine For Metal Sheet 1070nm
2000w Herolaser Laser Cutting Machine For Metal Sheet 1070nm
2000w Herolaser Laser Cutting Machine For Metal Sheet 1070nm
2000w Herolaser Laser Cutting Machine For Metal Sheet 1070nm
2000w Herolaser Laser Cutting Machine For Metal Sheet 1070nm
Specifications
Brand Name :
Herolaser
Model Number :
ML-CF-4020
Certification :
ISO9001, FDA
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T, D/A, D/P
Supply Ability :
20 sets per month
Delivery Time :
30-45 days
Packaging Details :
Wooden case
Laser power :
2000w
Laser wave length :
1070nm
Max Cutting Range :
6000*2000mm
Positioning accuracy :
±0.03mm
Laser Input Power :
12000w
Dimension size :
8100mm*2650mm*2200mm
Description

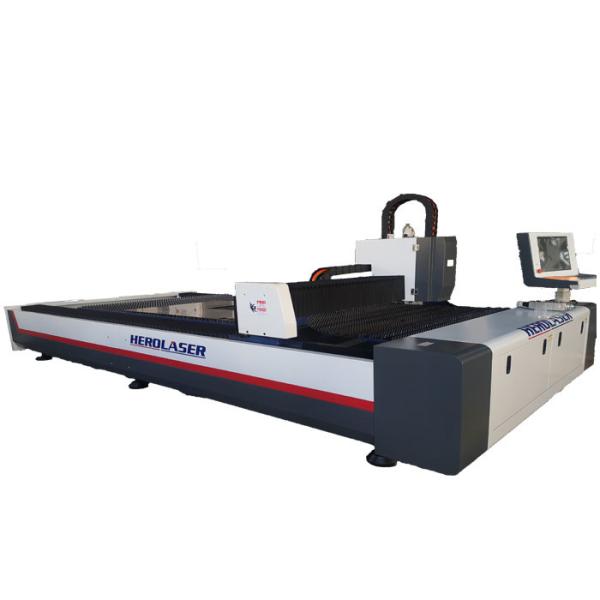

Herolaser Laser Cutting Machine Cut Equipment for Metal Sheet

Fiber laser heads are able to detect jutting obstacles to effectively reduce the damage rate and save the maintenance cost of a laser cutter.

2000w Herolaser Laser Cutting Machine For Metal Sheet 1070nm

Bigger Adjustment Range

The smoke produced by cutting can be filtrated inside, it’s non-polluting and environmentally, friendly.

Long Service Life

Collimator lens and focus lens both have water-cooling heat sink which reduces the temperature of the cutting head

to improve the life of the cutting head.

2000w Herolaser Laser Cutting Machine For Metal Sheet 1070nm

2000w Herolaser Laser Cutting Machine For Metal Sheet 1070nm

Stable Cutting Performance


Fiber laser source can produce excellent beam quality,finer cutting lines,higher working efficiency and better machining quality.Fully closed

constant temperature working environment makes laser source more effective to ensure the stable operation.

Machine Parameters:

S/N Name Model Remarks
1 High power fiber laser cutting machine ML-CB-6020T Herolaser
2 Numerical control system CypCut Shanghai Bochu
3 Servo drive Fuji Japan
4 Reducer Modoli France
5 X, Y-axis rack YYC Taiwan China
6 Z-axis lead screw HIWIN Taiwan China
7 Linear guide rail HIWIN Taiwan China
8 Laser MAX/RECI/IPG China/German
9 Cutting head Osprey China
10 Cooling-water machine Teyu China
11 Pneumatic components SMC (or equivalent) Japan
12 Electrical components Schneider (or equivalent) France

Cutting Process Parameters

There are differences due to different types of cutting head and laser. Taking 1500W as an example, the following parameters are for reference only:

S/N Material Thickness(mm) Speed(m/min) Auxiliary gas
1 Stainless Steel 1 35-45 HP N2
2 Stainless Steel 2 12-18 HP N2
3 Stainless Steel 3 4.5-5.5 HP N2
4 Stainless Steel 4 2.5-3.5 HP N2
5 Stainless Steel 5 1.5-2.0 HP N2
6 Stainless Steel 6 0.8-0.9 HP N2
7 Stainless Steel 8 0.2-0.3 HP N2
8 Carbon steel 1 16-20 O2
9 Carbon steel 2 7.8-8.3 O2
10 Carbon steel 3 4.6-5.2 O2
11 Carbon steel 4 2.5-3.0 O2
12 Carbon steel 5 2.0-2.5 O2
13 Carbon steel 6 1.7-2.0 O2
14 Carbon steel 8 1.2-1.5 O2
15 Carbon steel 10 1.0-1.2 O2
16 Carbon steel 12 0.8-0.9 O2
17 Carbon steel 16 0.5-0.7 O2
18 Aluminum 1 23-35 HP N2
19 Aluminum 2 7.5-9 HP N2
20 Aluminum 3 4-5 HP N2
21 Aluminum 4 2-2.5 HP N2
22 Aluminum 5 0.9-1.3 HP N2
23 Aluminum 6 0.5-0.7 HP N2
24 Aluminum 8 0.2-0.25 HP N2

S/N Material Thickness(mm) Speed(m/min) Auxiliary gas
1 Stainless Steel 1 35-45 HP N2
2 Stainless Steel 2 12-18 HP N2
3 Stainless Steel 3 4.5-5.5 HP N2
4 Stainless Steel 4 2.5-3.5 HP N2
5 Stainless Steel 5 1.5-2.0 HP N2
6 Stainless Steel 6 0.8-0.9 HP N2
7 Stainless Steel 8 0.2-0.3 HP N2
8 Carbon steel 1 16-20 O2
9 Carbon steel 2 7.8-8.3 O2
10 Carbon steel 3 4.6-5.2 O2
11 Carbon steel 4 2.5-3.0 O2
12 Carbon steel 5 2.0-2.5 O2
13 Carbon steel 6 1.7-2.0 O2
14 Carbon steel 8 1.2-1.5 O2
15 Carbon steel 10 1.0-1.2 O2
16 Carbon steel 12 0.8-0.9 O2
17 Carbon steel 16 0.5-0.7 O2
18 Aluminum 1 23-35 HP N2
19 Aluminum 2 7.5-9 HP N2
20 Aluminum 3 4-5 HP N2
21 Aluminum 4 2-2.5 HP N2
22 Aluminum 5 0.9-1.3 HP N2
23 Aluminum 6 0.5-0.7 HP N2
24 Aluminum 8 0.2-0.25 HP N2

S/N Material Thickness(mm) Speed(m/min) Auxiliary gas
1 Stainless Steel 1 35-45 HP N2
2 Stainless Steel 2 12-18 HP N2
3 Stainless Steel 3 4.5-5.5 HP N2
4 Stainless Steel 4 2.5-3.5 HP N2
5 Stainless Steel 5 1.5-2.0 HP N2
6 Stainless Steel 6 0.8-0.9 HP N2
7 Stainless Steel 8 0.2-0.3 HP N2
8 Carbon steel 1 16-20 O2
9 Carbon steel 2 7.8-8.3 O2
10 Carbon steel 3 4.6-5.2 O2
11 Carbon steel 4 2.5-3.0 O2
12 Carbon steel 5 2.0-2.5 O2
13 Carbon steel 6 1.7-2.0 O2
14 Carbon steel 8 1.2-1.5 O2
15 Carbon steel 10 1.0-1.2 O2
16 Carbon steel 12 0.8-0.9 O2
17 Carbon steel 16 0.5-0.7 O2
18 Aluminum 1 23-35 HP N2
19 Aluminum 2 7.5-9 HP N2
20 Aluminum 3 4-5 HP N2
21 Aluminum 4 2-2.5 HP N2
22 Aluminum 5 0.9-1.3 HP N2
23 Aluminum 6 0.5-0.7 HP N2
24 Aluminum 8 0.2-0.25 HP N2

After-Sales Services

1. 2 year guarantee for laser source(people damaged are charged)


2. Full technical support / by e-mail, call and video


3. Spare parts supply.


4. Free online training installation and operation


5. 12 hours quick feedback & after-sales services


6. ODM/OEM service

FAQ

1. What model does Herolaser produce?
Production of Laser Welding series, Laser Cleaning series, Laser Cutting series and Laser New energy automation, etc.

2. What are the payment methods of Herolaser Company?
T/T, LC, CAD, OA, Trade Insurance, Alibabapay

3. Does Herolaser accept Acceptance?
Yes, we accept bank acceptances within 6 months, not commercial acceptances.

4. Can I visit the factory?
Available to have a visit to our factory at any time.

5. What can I get with the purchase of equipment?
Each machine has a set of standard accessories.

6. Can I go to the factory to test the machine before shipment?
Of course you can.

7.How is the delivery and shipment?
Ship in 7 days after 100% payment; Packaged with Plywood box.

8.How will you guarantee after-sales services?
We offer two years warranty for laser source, one year for the machine.
