Silver Tungsten Faced Resistance Welding Electrodes For Low Resistance Welding
Silver Tungsten Faced Resistance Welding Electrodes For Low Resistance Welding
Silver Tungsten Faced Resistance Welding Electrodes For Low Resistance Welding
Silver Tungsten Faced Resistance Welding Electrodes For Low Resistance Welding
Silver Tungsten Faced Resistance Welding Electrodes For Low Resistance Welding
Silver Tungsten Faced Resistance Welding Electrodes For Low Resistance Welding
Specifications
Brand Name :
JBNR
Model Number :
W70Ag30
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
Negotiation
Price :
Negotiable
Payment Terms :
L/C, , T/T, Western Union
Delivery Time :
15days
Packaging Details :
as customer required
Material :
silver tungsten
Density :
14.9
Hardness :
82HRB
Application :
low resistant welding
Electric conductivity :
45% IACS
name :
Welding Electrodes
Description

Silver Tungsten Faced Resistance Welding Electrode For Low Resistance Welding

Description:

JBNR’s tungsten, copper-tungsten, silver tungsten, molybdenum and TZM-faced tips listed here withstand greater heat and pressure, at the expense of some conductivity. Besides being used for spot welding high resistance base metals, they are useful in achieving “heat balance” when welding dissimilar metals. We can make the standard one with taper and shank, also we can make the electrode per customer’s drawing.



Product Properties:

Component(%wt) Density(g/cm³) Conductivity(%IACS) Hardness(HRB)
W65Ag35 14.5 48 75
W70Ag30 14.9 45 82
W75Ag25 15.4 41 86


Application:

Low Resistance Welding

Product picture:

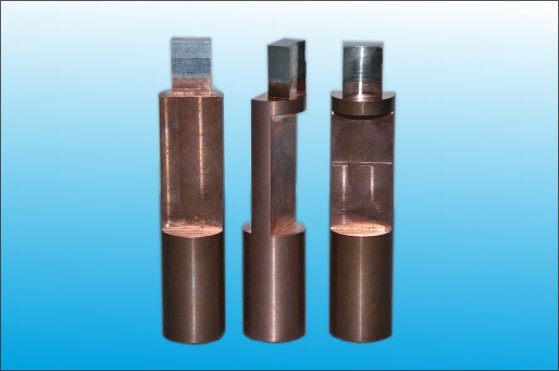

Silver Tungsten Faced Resistance Welding Electrodes For Low Resistance Welding
