Copper Wire Welding / Leading Wire Welding Molybdenum Faced Electrode
Copper Wire Welding / Leading Wire Welding Molybdenum Faced Electrode
Copper Wire Welding / Leading Wire Welding Molybdenum Faced Electrode
Copper Wire Welding / Leading Wire Welding Molybdenum Faced Electrode
Copper Wire Welding / Leading Wire Welding Molybdenum Faced Electrode
Copper Wire Welding / Leading Wire Welding Molybdenum Faced Electrode
Copper Wire Welding / Leading Wire Welding Molybdenum Faced Electrode
Copper Wire Welding / Leading Wire Welding Molybdenum Faced Electrode
Specifications
Brand Name :
JBNR
Model Number :
CuCrZr
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
Negotiation
Price :
Negotiable
Payment Terms :
L/C, , T/T, Western Union
Delivery Time :
15days
Packaging Details :
as customer required
Material :
CuCrZr
Density :
8.9
Application :
battery lead wire field
Conductivity :
80
HRB :
80
RWMA :
Class 2
Description

Copper Wire Welding / Leading Wire Welding Molybdenum Faced Electrode

Description:

JBNR’s tungsten, copper-tungsten, silver tungsten, molybdenum and TZM-faced tips listed here withstand greater heat and pressure, at the expense of some conductivity. Besides being used for spot welding high resistance base metals, they are useful in achieving “heat balance” when welding dissimilar metals. We can make the standard one with taper and shank, also we can make the electrode per customer’s drawing.



Product Properties:
Content(%wt.) Density(g/m³) Electrical conductivity(%IACS) Hardness(HRB) Grade Application
Cr:0.6-1% 8.9 85 70 C18200 shank
Cr:0.6-1.5%;Zr:0.05-0.25%;Cu:balance 8.9 80 80 C18150 shank
75W25Cu 14.5 94 38 10W3 face



Application:

leading wire welding, copper wire welding, silver part welding.(Battery lead wire field, low voltage part field)

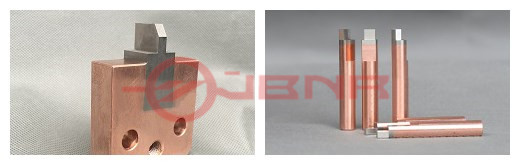

Product picture:

Copper Wire Welding / Leading Wire Welding Molybdenum Faced ElectrodeCopper Wire Welding / Leading Wire Welding Molybdenum Faced Electrode
