WCu Flanges / Heat Sink W90Cu10 W80Cu20 W50Cu50 Substrates With Excellent TC
WCu Flanges / Heat Sink W90Cu10 W80Cu20 W50Cu50 Substrates With Excellent TC
WCu Flanges / Heat Sink W90Cu10 W80Cu20 W50Cu50 Substrates With Excellent TC
WCu Flanges / Heat Sink W90Cu10 W80Cu20 W50Cu50 Substrates With Excellent TC
WCu Flanges / Heat Sink W90Cu10 W80Cu20 W50Cu50 Substrates With Excellent TC
WCu Flanges / Heat Sink W90Cu10 W80Cu20 W50Cu50 Substrates With Excellent TC
Specifications
Brand Name :
JBNR
Model Number :
50WCu,75WCu,80WCu,85WCu,90WCu
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
Negotiation
Price :
Negotiable
Payment Terms :
L/C, , T/T, Western Union
Delivery Time :
15days
Packaging Details :
as customer required
Material :
tungsten copper
Density :
12.2
CTE :
12.5
TC :
310-340
Plating :
gold
Application :
electronic packaging
Description

WCu Flanges / Heat Sinks W90Cu10 W80Cu20 W50Cu50 Substrates With excellent TC

Description:

W-Cu heat sink material is a composite of tungsten and copper, with both tungsten low expansion characteristics, but also has copper of high thermal conductivityproperties, and the tungsten and copper in the thermal expansion coefficient andthermal conductivity can be adjusted with the W-Cu composition, also the compositecan be machined to various shape, these features make the application of thiscomposite with great convenience. The thermal expansion can be adjusted to matchwith the following materials:

(1) Ceramic materials: Al203(A-90, A-95, A-99), BeO(B-95, B-99), AIN, etc

(2) Semiconductor materials: Si, GaAs, SiGe, SiC, GaP, GaAs

(3)Metal Material: Kovar alloy (4J29), 42 alloy;


Advantages:

No Fe, Co, Ni, Mn and other elements addeled as the sintering activator, to maintain a high thermal conductivity.
Excellent hermeticity
Can provide semi-finished or finished (Ni/Au plated)products
Precision machining and excellent dimensional control, surface finish and flatness
With close technical supports including product design, custom manufacturing testing and post sale supports


Product Properties:

Type Composition Properties
Tungsten Content Density CTE Thermal Conductivity
W90Cu 90 ± 1 wt % 17.0 g/cm3 6.5 ppm/K 180 - 190 W/m.K
W85Cu 85 ± 1 wt % 16.3 g/cm3 7.0 ppm/K 190 - 200 W/m.K
W80Cu 80 ± 1 wt % 15.6 g/cm3 8.3 ppm/K 200 - 210 W/m.K
W75Cu 75 ± 1 wt % 14.9 g/cm3 9.0 ppm/K 220 - 230 W/m.K

Application:

This composite are widely used in applications such as microwave carriers, ceramic substrate carriers, laser diode mounts, optical packages, power packages, butterfly packages and crystal carriers for solid state lasers, etc.

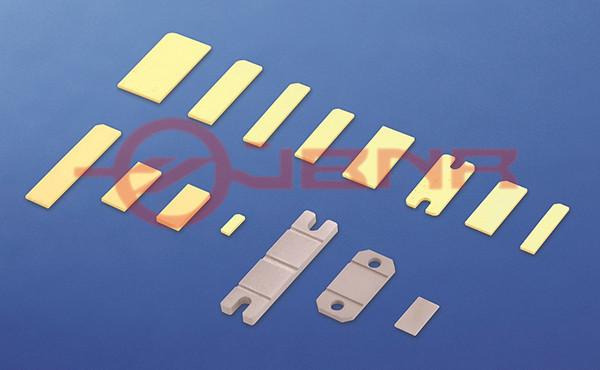

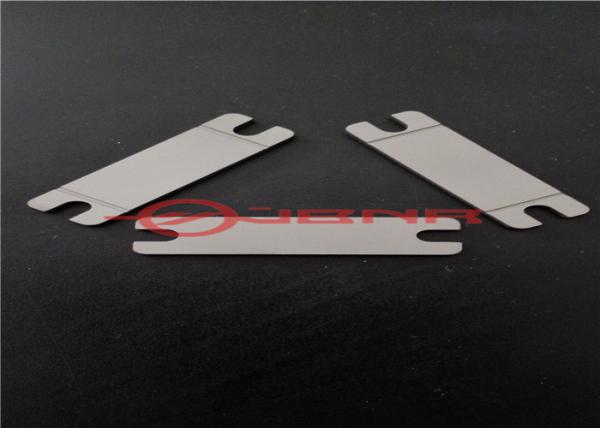

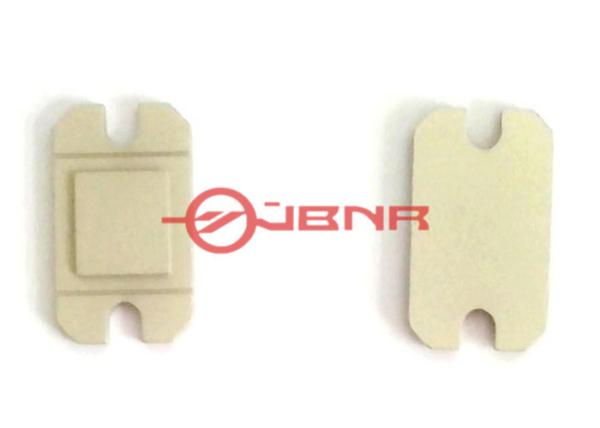

Product picture:
WCu Flanges / Heat Sink W90Cu10 W80Cu20 W50Cu50 Substrates With Excellent TC
