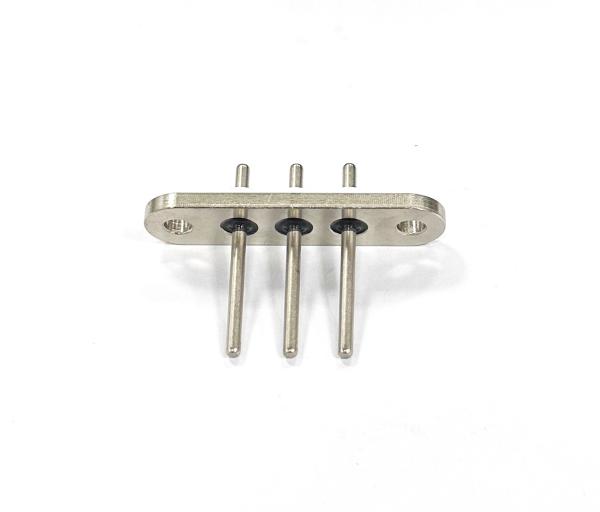

3500VAC - Hermetically Sealed Terminal With Dielectric Strength

Product Description:

We could provide various types of sintered seal terminals according to customers'specific requirements. The performance parameters of our products reach a high standard, for example:

• Material: 45 Steel
• Hi-pot : 3000v≤0.5MA leak current
• IR:1000V IR > 1000MΩ
• leak Test: 4MPa N2 pressure No leak
• Burst Test:5MPa No leak
• Operating Temperature Range:-70°C to 300°C

Features:

• Product Name: Hermetically Sealed Terminal
• Current Rating: 20A-30A
• Dielectric Strength: 3500VAC
• Salt Spray Resistance: 48h The Rusted Area < 5%
• Material: 45 Steel
• Temperature Rating: -70°C - 300°C
• Hermetically Sealed Control: Yes
• Hermetically Sealed Interface: Yes
• Hermetically Sealed Equipment: Yes

Technical Parameters:

Our company develops all products using an environmentally friendly electroless nickel plating method. The coating thickness is between 3 and 5 microns, which is up to EU standards and has been certified by SGS environmental testing report.

Unlike some other nickel coatings, the coating developed by our company does not contain any mercury, lead, cadmium and hexavalent chromium or any other harmful substances. Furthermore, the coating also plays a role of electrical connection in many cases.

Applications:

The Hermetically Sealed System supplied by SSCore is the perfect terminal solution for a wide range of applications. Manufactured in ShenZheng, this terminal system is certified by IATF16949 and comes in a vacuum package. You can order a minimum of 5 pieces at a price of 10-40 $ each. With a delivery time of 7-14 work days, you can choose from a variety of payment terms such as L/C, D/A, T/T, and D/P. SSCore has a production capacity of 50w pieces a month. The voltage rating of this terminal is 1000V, and the insulation resistance is 1000MΩ. The temperature rating of the Hermetically Sealed System is -70°C - 300°C, with salt spray resistance of 48h and The Rusted Area is less than 5%. The raw material used in its construction is 45 steel.

Customization:

Support and Services:

Hermetically Sealed Terminal offers comprehensive technical support and service to our customers. We provide a variety of resources and support options to help you get the most out of your Hermetically Sealed Terminal experience. Our team of certified technicians are available to answer any questions you may have and provide assistance with installation, troubleshooting, and maintenance. We also offer free technical support via phone, email, and live chat. Additionally, we provide a library of online documents and videos to help you make the most of your Hermetically Sealed Terminal.
