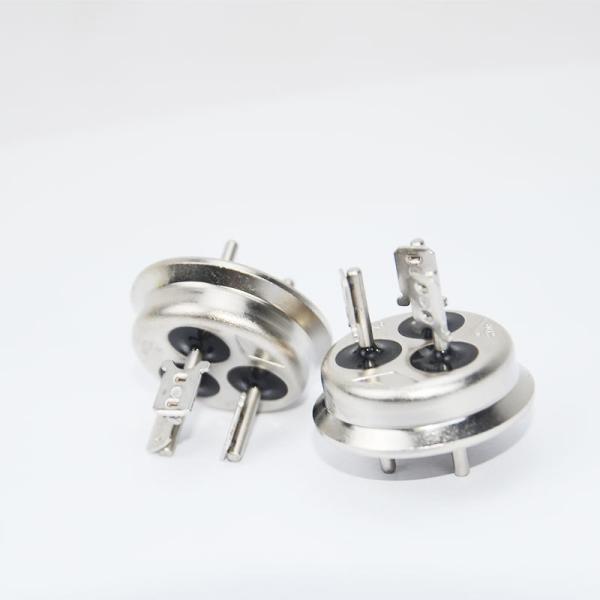

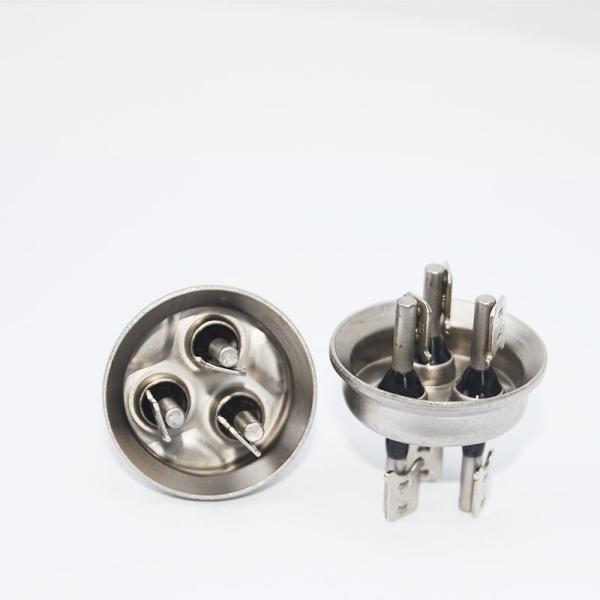

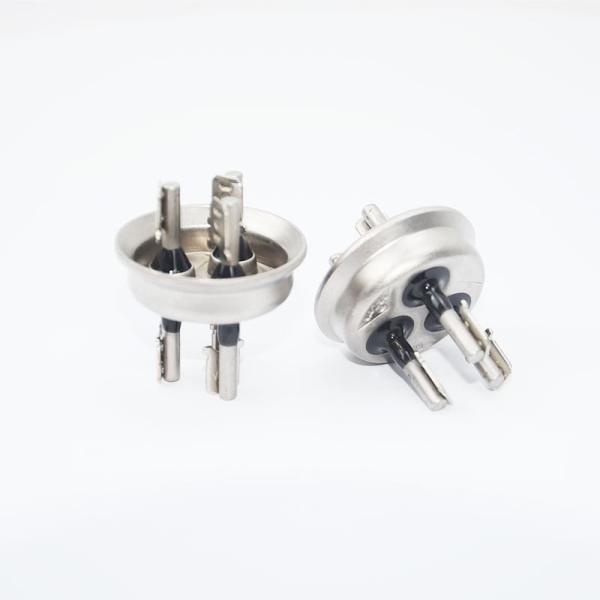

ISO Hermetically Sealed Terminal Voltage 72V Sintered Seal Terminal
ISO Hermetically Sealed Terminal Voltage 72V Sintered Seal Terminal
ISO Hermetically Sealed Terminal Voltage 72V Sintered Seal Terminal
ISO Hermetically Sealed Terminal Voltage 72V Sintered Seal Terminal
ISO Hermetically Sealed Terminal Voltage 72V Sintered Seal Terminal
ISO Hermetically Sealed Terminal Voltage 72V Sintered Seal Terminal
ISO Hermetically Sealed Terminal Voltage 72V Sintered Seal Terminal
ISO Hermetically Sealed Terminal Voltage 72V Sintered Seal Terminal
ISO Hermetically Sealed Terminal Voltage 72V Sintered Seal Terminal
ISO Hermetically Sealed Terminal Voltage 72V Sintered Seal Terminal
Specifications
Brand Name :
SSCore
Model Number :
SC-1-88A
Certification :
ISO16949
Place of Origin :
ShenZheng
MOQ :
5pcs
Price :
¥ 5.00 10PCS minimum batch ¥ 4.00 500-49999PCS ¥ 3.00 ≥50000PCS
Payment Terms :
L/C, D/A, T/T
Supply Ability :
12000 per day
Delivery Time :
7-14 work days
Packaging Details :
Cato package 9*9
High insulation performance :
Static test at 500VDC, insulation greater than 5000MΩ
High sealing performance :
2.5MPa does not leak
High voltage resistance :
≥2000VAC, leakage current ≤0.5mA
Corrosion resistance :
Refer to the salt spray standard GB/T2423.17, which can reach the level of 8 or above
Resistant to various refrigerant and refrigerant oil :
R114a,R410a,R22 and CO2 refrigerant
Thermal shock resistance :
It can maintain normal operation in the environment of minus 40℃ to 300℃
Operating voltage :
72V-810V
Description

Binding Posts For Household Air Three Pin Five Pin Glass-Metal Sintering

The sintered seal terminal is mainly used in the 72V-810V compressor of automobile air conditioning, and plays the role of sealing, insulating, voltage and pressure resistant electrical connection

ISO Hermetically Sealed Terminal Voltage 72V Sintered Seal TerminalISO Hermetically Sealed Terminal Voltage 72V Sintered Seal TerminalISO Hermetically Sealed Terminal Voltage 72V Sintered Seal TerminalISO Hermetically Sealed Terminal Voltage 72V Sintered Seal TerminalISO Hermetically Sealed Terminal Voltage 72V Sintered Seal Terminal
