High Speed 300mm Servo Pleater Automatic Textile Folding Machine Industrial
High Speed 300mm Servo Pleater Automatic Textile Folding Machine Industrial
High Speed 300mm Servo Pleater Automatic Textile Folding Machine Industrial
High Speed 300mm Servo Pleater Automatic Textile Folding Machine Industrial
High Speed 300mm Servo Pleater Automatic Textile Folding Machine Industrial
High Speed 300mm Servo Pleater Automatic Textile Folding Machine Industrial
High Speed 300mm Servo Pleater Automatic Textile Folding Machine Industrial
High Speed 300mm Servo Pleater Automatic Textile Folding Machine Industrial
Specifications
Brand Name :
TONGCHEN
Model Number :
TC-5752
Certification :
ISO
Place of Origin :
Anhui,China
MOQ :
1
Price :
$25000~28000
Payment Terms :
T/T
Supply Ability :
15
Delivery Time :
30
Packaging Details :
Wooden box
Computerized :
Yes
Guarantee Time :
1 Year
Adjustable Width of Filter Paper :
25 – 1050 mm
Paper Conveying Speed :
0.5 m/min – 25 m/min (adjustable)
Maximum Product Width :
Width 850 mm
Adjustable Folding Height :
20-300 mm (depending on material)
Description

High Speed 300mm Servo Pleater - Automatic Textile Folding Machine Industrial

High-speed textile folding system designed for precision filter production with fully automated operation.
Product Overview

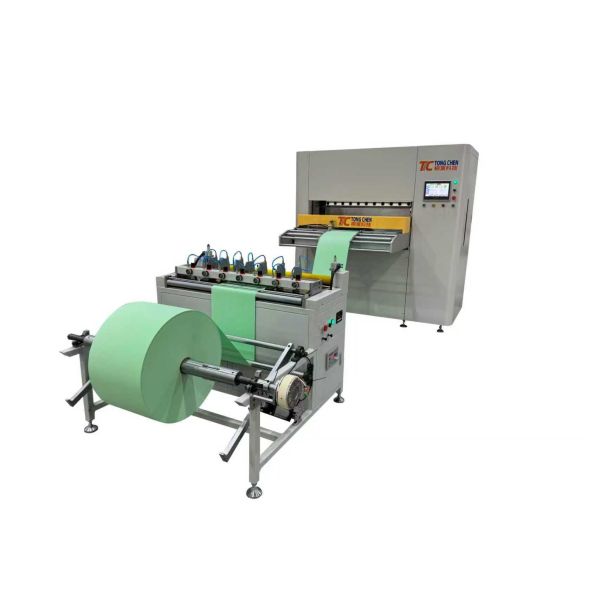

The seventh-generation fully automatic pleating production line integrates automatic feeding, pre-cutting, counting, and folding into one continuous process. This advanced system delivers high-speed, precise, and efficient pleating for various filter materials with adjustable speed and folding height, intelligent temperature control, and user-friendly digital interface.
Technical Specifications
Pre-cutting Paper Conveying Machine
Item Specification
Paper Conveying Speed 0.5 m/min - 25 m/min (adjustable)
Adjustable Width of Filter Paper 25 - 1050 mm
Power Supply Voltage 220V / 50Hz
Motor Power 0.55 kW
Working Air Pressure 0.6 Mpa
Machine Weight 250 kg
Dimensions (L × W × H) 1280 × 1100 × 1200 mm
Folding Machine
Item Specification
Maximum Product Width 850 mm
Adjustable Folding Height 20-300 mm (depending on material)
Folding Speed 0 - 280 folds/min (stepless adjustable)
Power Supply Voltage 380V / 50Hz
Main Motor Power 1.5 kW
Lifting Motor Power 0.4 kW
Preheating Power 6 kW
Temperature Control Range Normal temperature - 260°C
Working Air Pressure 0.6 Mpa
Machine Weight 450 kg
Dimensions (L × W × H) 1800 × 1900 × 1650 mm

High Speed 300mm Servo Pleater Automatic Textile Folding Machine Industrial

Key Features & Advantages
  • Fully Automatic Operation: Integrates paper feeding, pre-cutting, counting, and folding for seamless workflow
  • High Precision Folding: Knife-type mechanism ensures neat and consistent pleats
  • Adjustable Speed and Height: Flexible for different materials and filter specifications
  • Energy-Efficient Heating System: Fast preheating with precise temperature control
  • User-Friendly Control Panel: Simple operation with digital adjustments and safety design
  • Stable Performance: High-quality components ensure long-term durability and low maintenance
Applications
  • Automotive Air Filters
  • Cabin Filters
  • Industrial Dust Filters
  • Air Purification Filters
  • HEPA Filter Production Lines
Packaging & Delivery
Selling Units: Single item
High Speed 300mm Servo Pleater Automatic Textile Folding Machine Industrial
Manufacturer Profile
Bengbu Tongchen Automation Technology Equipment Co., Ltd. is located in Bengbu, China—an important transportation hub and industrial base. Our company specializes in the development, design, and production of filter manufacturing equipment, providing advanced, practical, and efficient solutions that meet both domestic trends and international standards.
Product Range
  • Paper folding equipment and rotating machines
  • Diesel engines and large air filter production equipment
  • Partitionless and partitioned filter production equipment
  • Pleating machines and glass fiber strip production lines
High Speed 300mm Servo Pleater Automatic Textile Folding Machine Industrial High Speed 300mm Servo Pleater Automatic Textile Folding Machine Industrial High Speed 300mm Servo Pleater Automatic Textile Folding Machine Industrial
