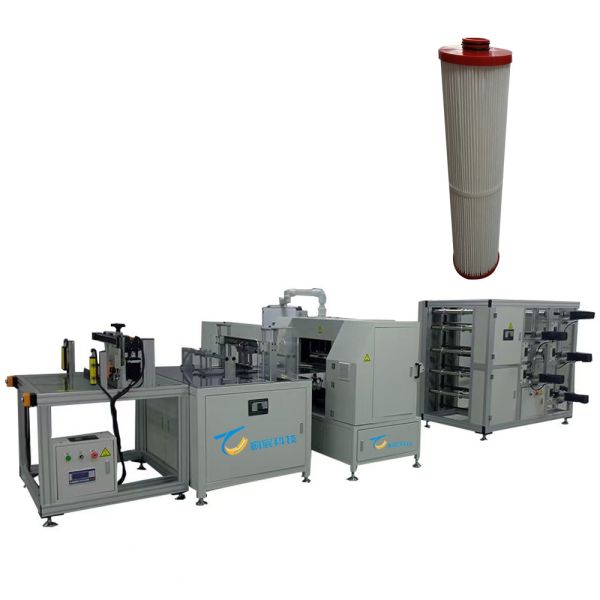

Adjustable Multi-Layer Filter Paper Folding Production Line
Adjustable Multi-Layer Filter Paper Folding Production Line
Adjustable Multi-Layer Filter Paper Folding Production Line
Adjustable Multi-Layer Filter Paper Folding Production Line
Adjustable Multi-Layer Filter Paper Folding Production Line
Adjustable Multi-Layer Filter Paper Folding Production Line
Specifications
Brand Name :
Beengbu Tongchen
Model Number :
TC-7020
MOQ :
1set
Price :
15000-20000
Payment Terms :
,T/T
Delivery Time :
15-30days
Description

Multi-Layer Filter Paper Folding Production Line



Specifications

Automatic Paper Feeding Section
Item Specification
Paper Feeding Speed 0.5 – 12 m/min (adjustable)
Adjustable Paper Width 32 – 1000 mm
Adjustable Layers 1 – 5 layers
Max Roll Diameter 450 mm
450 mm 220V / 50Hz
Feeding Motor

0.2 kW × 5
Air-Expanding Shaft

70 mm
Working Air Pressure

0.6 MPa
Machine Weight

550 kg
Dimensions

2800 × 1880 × 1500 mm


Paper Folding Machine
Item Specification
Max Product Width 1000 mm
Folding Height 5 – 70 mm (varies with material)
Folding Speed 0 – 280 pcs/min
Power Supply 380V / 50Hz
Main Motor Power 0.75 kW × 2
Lifting Motor Power 0.85 kW × 2
Press Plate Motor 0.4 kW
Pre-Heating Power 6 kW
Temperature Range Room temp – 260°C
Working Air Pressure 0.6 MPa
Machine Weight

850 kg
Dimensions 1800 × 1900 × 1655 mm


Vertical Cutting Machine
Item

Specification
Cutting Width ≤100–1000 mm
Cutting Knives 4 knives (adjustable)
Motor Power

1.5 kW
Working Air Pressure 0.6 MPa
Power Supply 380V / 50Hz

Machine Weight

 580 kg
Dimensions 1200 × 1900 × 1800 mm


Horizontal Cutting Machine
Item

Specification

Cutting Width

20–1000 mm
Working Air Pressure 0.6 MPa
Stepping Motor

0.73 kW

Power Supply

220V / 50Hz
Machine Weight

220 kg
Dimensions 1200 × 1800 × 1500 mm

Adjustable Multi-Layer Filter Paper Folding Production Line


Main Features

  • Automatic Servo Paper Feeding with adjustable speed from 0.5–12 m/min

  • 1–5 multi-layer folding capability, suitable for different filter material structures

  • Full-servo electronic cam control for precise folding angles & knife adjustments

  • High-speed folding up to 280 pieces/min, depending on folding height

  • Dual heating plates for stable shaping (0–260°C adjustable)

  • Vertical & horizontal cutting integration for efficient product output

  • Wide width compatibility up to 1000 mm

  • Touch screen + PLC control (INOVANCE brand) for easy setting and monitoring

  • Industrial-grade frame and components ensuring durability and long service life


Advantages

  • High Productivity – continuous servo feeding and fast folding speed

  • High Stability & Accuracy – electronic cam + synchronous belt structure

  • Multi-Material Compatibility – supports nonwoven, meltblown, composite, paper materials

  • Flexible Production – adjustable folding height, width, and layers

  • Reduced Labor Cost – fully automated forming and cutting process

  • Easy Operation – intuitive 10-inch touch screen

  • Durable Construction – heavy-duty steel frame, upgraded bearings, and plating treatment

  • Smart Control System – dot counting, auto height adjustment, angle adjustments
