Filter Special Aluminum Foil Paper Origami Corrugated Production Machine
Filter Special Aluminum Foil Paper Origami Corrugated Production Machine
Filter Special Aluminum Foil Paper Origami Corrugated Production Machine
Filter Special Aluminum Foil Paper Origami Corrugated Production Machine
Filter Special Aluminum Foil Paper Origami Corrugated Production Machine
Filter Special Aluminum Foil Paper Origami Corrugated Production Machine
Filter Special Aluminum Foil Paper Origami Corrugated Production Machine
Filter Special Aluminum Foil Paper Origami Corrugated Production Machine
Specifications
Brand Name :
TONGCHEN
Model Number :
TC-5710
Certification :
ISO
Place of Origin :
Anhui,China
MOQ :
1
Price :
$5500~7500
Payment Terms :
T/T
Supply Ability :
15
Delivery Time :
30
Packaging Details :
Wooden box
Production Speed (Max) :
0 - 30 sheets/min
Corrugation Height :
3 mm - 6 mm (customizable)
Computerized :
Yes
Guarantee Time :
1 Year
Description
Filter Special Aluminum Foil Paper Origami Corrugated Production Machine

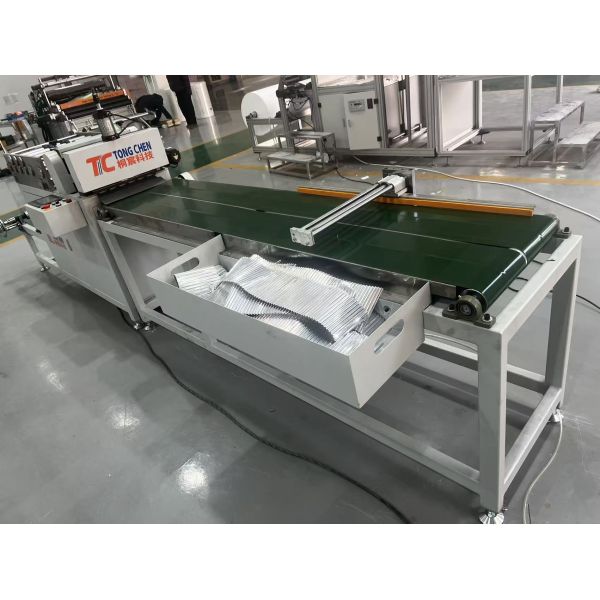

The 350mm Corrugating Machine is a state-of-the-art industrial solution designed for precision separation of aluminum foil and paper composite materials. Featuring a durable painted frame for enhanced precision and aesthetic appeal, this equipment offers an ergonomic layout that facilitates easy roll replacement, adjustment, and operation. The complete process—from roll feeding and tension control to flanging, corrugation, sizing, cutting, and automatic discharge—is fully optimized for maximum efficiency, superior quality output, and minimal operator fatigue.
Process Workflow

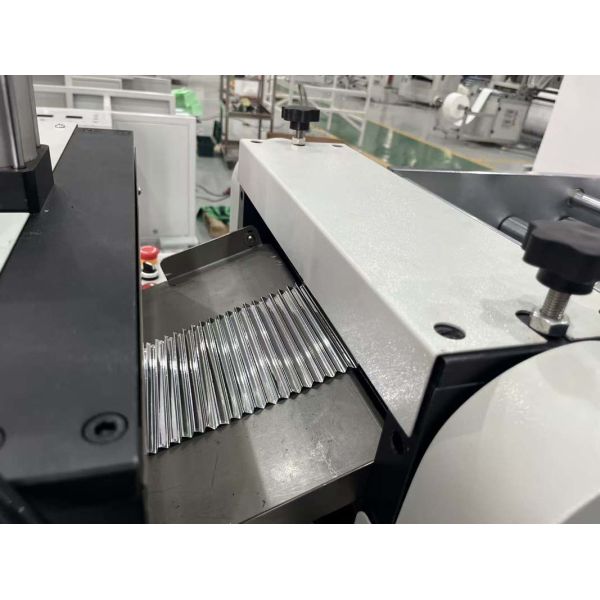

Rolled aluminum foil (paper) → Coiling → Tension unwinding → Tension feeding → Flanging → Corrugation pressing (heat setting) → Automatic sizing cutting → Automatic discharge
Technical Specifications
Material CompatibilityAluminum foil (semi-hard, flat) or paper
Maximum Roll Diameter700 mm
Maximum Material Width320 mm
Material Thickness0.04 ± 0.005 mm
Corrugated Edge Width After Pressing3 mm - 10 mm
Corrugation Height3 mm - 6 mm (customizable)
Sizing LengthFreely adjustable
Production Speed (Maximum)0 - 30 sheets/min
Power Supply380V, 50Hz
Compressed Air Requirement0.6 m³/min
Machine Dimensions (L × W × H)3800 × 950 × 1395 mm
Motor ConfigurationThree-phase motor
Mechanical Parts TreatmentShafts: electroplated hard chrome; Others: decorative nitro-iron and black treatment
Pneumatic Components BrandJiahe brand, Harbin bearings
Instrument InstallationReasonable layout, easy to remove
Filter Special Aluminum Foil Paper Origami Corrugated Production Machine
Industrial Applications

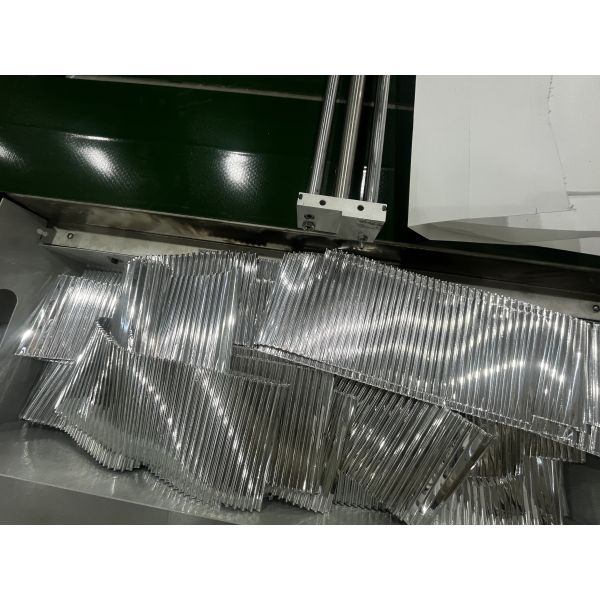

  • Production of aluminum foil corrugated separators
  • Manufacturing of paper-based separators
  • Industrial packaging materials
  • Electronics and battery separator sheets
  • Custom corrugated sheets for industrial applications
Filter Special Aluminum Foil Paper Origami Corrugated Production Machine Filter Special Aluminum Foil Paper Origami Corrugated Production Machine
Key Advantages
  • High production efficiency (up to 30 sheets/min)
  • Fully customizable corrugation height (3-6mm) and sheet length
  • Stable production due to tension-controlled feeding
  • Ergonomic design improves operator comfort and safety
  • Easy maintenance with accessible and replaceable components
  • Suitable for both aluminum foil and paper materials
  • Painted frame ensures durability and precision alignment
Packaging & Delivery
Selling Units: Single item
Filter Special Aluminum Foil Paper Origami Corrugated Production Machine
Manufacturer Profile
Bengbu Tongchen Automation Technology Equipment Co., Ltd. is strategically located in Bengbu, China—an important transportation hub and industrial base. Our company specializes in the development, design, and production of advanced filter manufacturing equipment, providing practical and efficient solutions that meet both domestic industry trends and international quality standards.
Product Range
  • Paper folding equipment and rotating machines
  • Diesel engines and large air filter production equipment
  • Partitionless and partitioned filter production equipment
  • Pleating machines and glass fiber strip production lines
Filter Special Aluminum Foil Paper Origami Corrugated Production Machine Filter Special Aluminum Foil Paper Origami Corrugated Production Machine Filter Special Aluminum Foil Paper Origami Corrugated Production Machine
