Precision Fully Automatic Filter Paper Feeding Pre Cutting Pleating Production Line
Precision Fully Automatic Filter Paper Feeding Pre Cutting Pleating Production Line
Precision Fully Automatic Filter Paper Feeding Pre Cutting Pleating Production Line
Precision Fully Automatic Filter Paper Feeding Pre Cutting Pleating Production Line
Precision Fully Automatic Filter Paper Feeding Pre Cutting Pleating Production Line
Precision Fully Automatic Filter Paper Feeding Pre Cutting Pleating Production Line
Specifications
Brand Name :
TONGCHEN
Model Number :
TC-5710
Certification :
ISO
Place of Origin :
Anhui,China
MOQ :
1
Price :
$16000~25000
Payment Terms :
T/T
Supply Ability :
15
Delivery Time :
30
Packaging Details :
Wooden box
Computerized :
Yes
Guarantee Time :
1 Year
Paper Conveying Speed :
0.5 m/min - 25 m/min (adjustable)
Adjustable Width of Filter Paper :
25 - 850mm
Maximum Product Width :
850 mm
Folding Speed :
0 - 280 folds/min (stepless adjustable)
Description

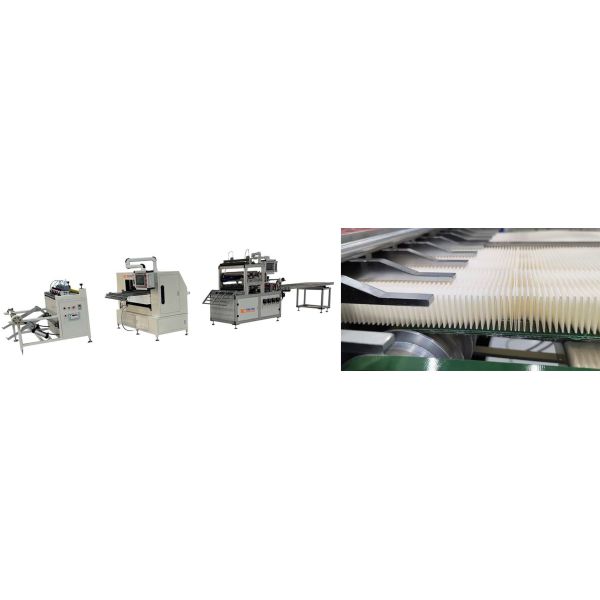

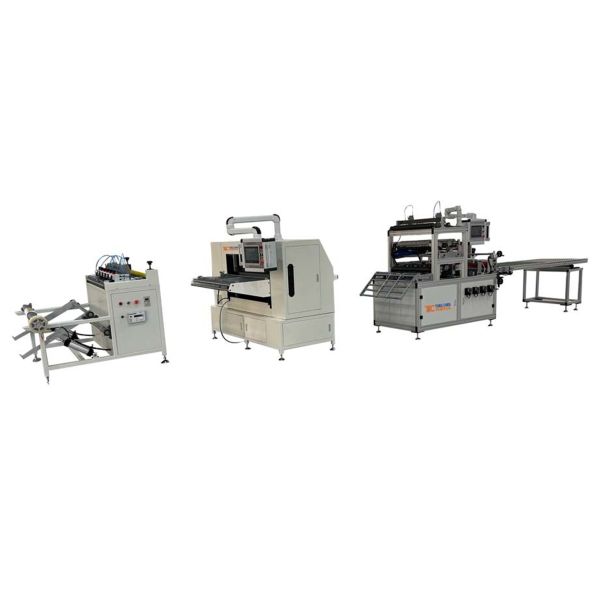

Precision Fully Automatic Filter Paper Feeding Pre-cutting Pleating Production Line

This advanced production line is engineered for automotive, air purification, water filtration, and industrial filtration industries. It delivers high-speed production, consistent glue application, and flexible parameter adjustment to accommodate various filter specifications.
Precision Fully Automatic Filter Paper Feeding Pre Cutting Pleating Production Line
Technical Specifications
Pre-cutting Paper Conveying Machine
ParameterSpecification
Paper Conveying Speed0.5 m/min - 25 m/min (adjustable)
Adjustable Width of Filter Paper25 - 850mm
Power Supply Voltage220V / 50Hz
Motor Power0.55 kW
Working Air Pressure0.6 Mpa
Machine Weight250 kg
Dimensions (L × W × H)1280 × 1100 × 1200 mm
Folding Machine
ParameterSpecification
Maximum Product Width850 mm
Adjustable Folding Height5-100 mm (depending on material)
Folding Speed0 - 280 folds/min (stepless adjustable)
Power Supply Voltage380V / 50Hz
Main Motor Power1.5 kW
Lifting Motor Power0.4 kW
Preheating Power6 kW
Working Air Pressure0.6 Mpa
Machine Weight450 KG
Dimensions (L × W × H)1800 × 1900 × 1650 mm
Gluing Machine
ParameterSpecification
Maximum product width700 mm
Adjustable folding height range6 - 55 mm
Production speed4 - 25 m/min
Glue strip spacing25.4 mm
Number of glue strips2 × 26, each controlled by electronic valve
Glue-off controlAutomatic intermittent glue-off function
Power supply voltage380V / 50Hz
Total power13 kW
Operating air pressure0.6 MPa
Machine weight500 kg
Glue machine dimensions (L × W × H)160 × 100 × 130 mm
Main machine dimensions (L × W × H)4000 × 130 × 160 mm
Precision Fully Automatic Filter Paper Feeding Pre Cutting Pleating Production Line
Main Features
  • Fully Automatic Operation: Integrates paper feeding, pre-cutting, counting, and folding for seamless workflow
  • High Precision Folding: Knife-type mechanism ensures neat and consistent pleats
  • Adjustable Speed and Height: Flexible configuration for different materials and filter specifications
  • Energy-Efficient Heating System: Fast preheating with precise temperature control
  • User-Friendly Control Panel: Simple operation with digital adjustments and safety design
  • Stable Performance: High-quality components ensure long-term durability and minimal maintenance
Precision Fully Automatic Filter Paper Feeding Pre Cutting Pleating Production Line
Applications
Automotive Air Filters
Cabin Filters
Industrial Dust Filters
Air Purification Filters
HEPA Filter Production Lines
Package
Precision Fully Automatic Filter Paper Feeding Pre Cutting Pleating Production Line

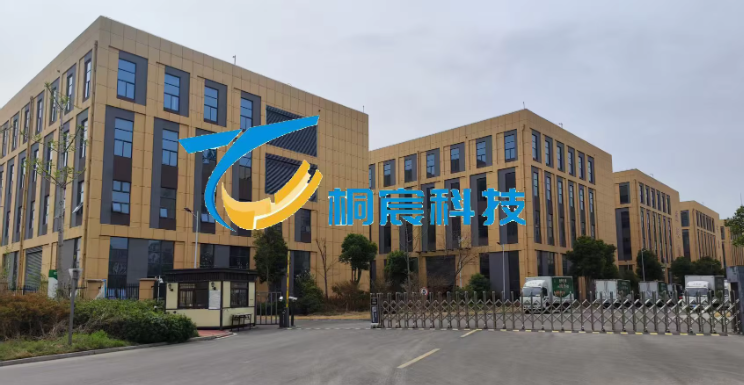

Manufacturer Profile
Bengbu Tongchen Automation Technology Co., Ltd.
We are a professional manufacturer specializing in filter production and automation equipment. We offer customized filtration production solutions backed by years of experience and advanced engineering technology.
Located in Bengbu, China—an important transportation hub and industrial base—our company provides advanced, practical, and efficient solutions that meet both domestic trends and international standards.
Company Advantages
  • Delivering innovative, efficient, and cost-effective equipment
  • Providing professional technical support and after-sales service
  • Ensuring high-quality materials and precision workmanship
  • Helping clients enhance production efficiency and product quality
Product Range
  • Paper folding equipment and rotating machines
  • Diesel engines and large air filter production equipment
  • Partitionless and partitioned filter production equipment
  • Pleating machines and glass fiber strip production lines
