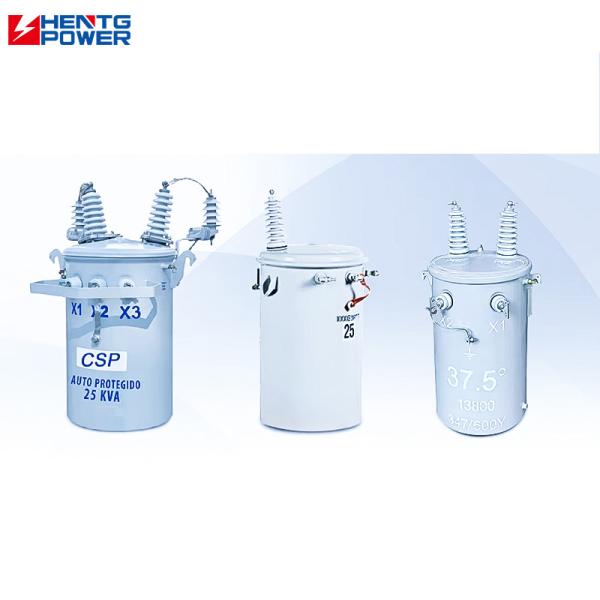

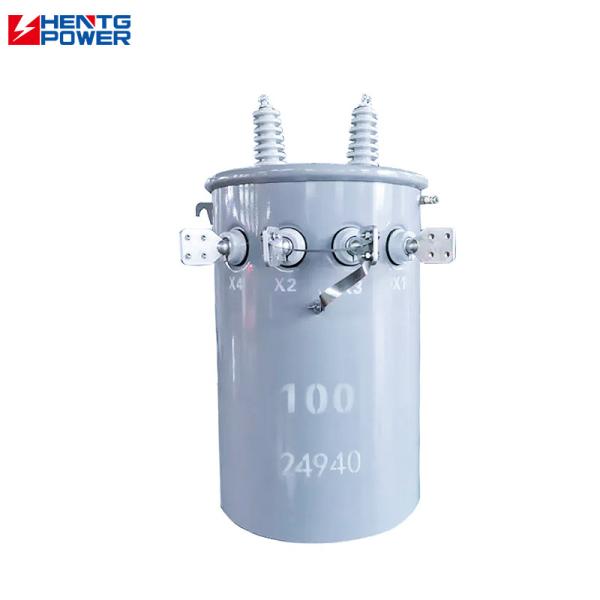

Step Up Down Pole Mounted Transformer Outdoor Oil Immersed 25KVA 37.5KVA 75KVA
Step Up Down Pole Mounted Transformer Outdoor Oil Immersed 25KVA 37.5KVA 75KVA
Step Up Down Pole Mounted Transformer Outdoor Oil Immersed 25KVA 37.5KVA 75KVA
Step Up Down Pole Mounted Transformer Outdoor Oil Immersed 25KVA 37.5KVA 75KVA
Step Up Down Pole Mounted Transformer Outdoor Oil Immersed 25KVA 37.5KVA 75KVA
Step Up Down Pole Mounted Transformer Outdoor Oil Immersed 25KVA 37.5KVA 75KVA
Specifications
Description
HENTG POWER Manufacturer Direct 25KVA 37.5KVA 75KVA Outdoor Oil Immersed Transformer
Product Specifications
Attribute Value
Type Power transformer, distribution transformer
Material Aluminum, Copper, Copper/Aluminum
Frequency 50Hz, 60Hz, 50Hz/60Hz
Winding Material Copper, Aluminum
Phase Single Phase
Input Voltage 6kV, 10kV, 15kV, 35kV, 69kV, 110kV, 115kV, 132kV
Output Voltage 400V, 208V, 200V, 415V, 110V, 220V, 380V, 440V
Capacity (KVA) 25kVA, 37.5kVA, 75kVA
Efficiency >98.80%
Product Overview

This high-efficiency single-phase pole transformer is designed for outdoor environments with excellent weather resistance and corrosion resistance. Suitable for both residential and small commercial applications, it provides stable power supply while minimizing energy consumption.

Step Up Down Pole Mounted Transformer Outdoor Oil Immersed 25KVA 37.5KVA 75KVA
Step Up Down Pole Mounted Transformer Outdoor Oil Immersed 25KVA 37.5KVA 75KVA

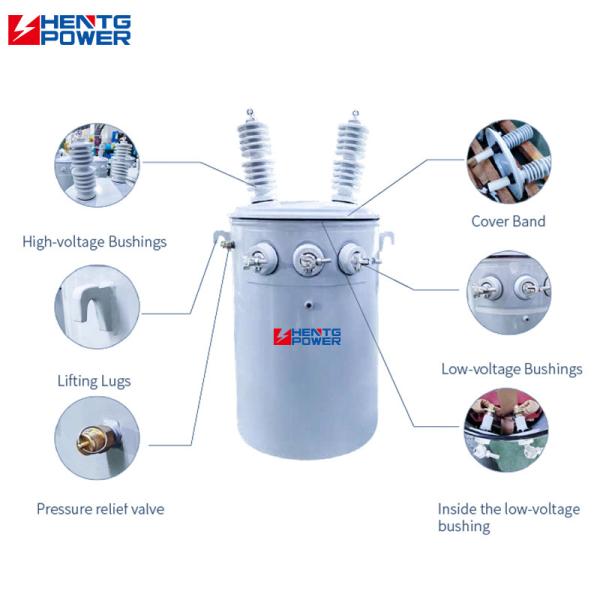

Key Features
  • High Efficiency: Minimizes energy consumption and reduces electricity bills
  • Durable Construction: Made with high-quality materials for long-term use with minimal maintenance
  • Safety Features: Built-in overload protection ensures safe operation
  • Weather Resistant: Designed for reliable performance in outdoor environments
Technical Specifications
Capacity (KVA) HV Tapping Range LV No-load Loss Load Loss Efficiency
15 2400-34500 ±2*2.5% 110-690 60-150 330-1150 98.82%
25 98.95%
37.5 99.05%
50 99.11%
75 99.19%
Key Advantages
1. Reduced Line Losses: Installed close to the load, these transformers shorten the low-voltage supply radius, reducing line losses by over 99%.
2. Energy Efficient Design: Features a high-efficiency wound core design for improved electrical performance.
3. Flexible Installation: Pole-mounted suspension installation saves ground space, ideal for rural and suburban areas.
4. Cost Effective: Lower capital investment compared to traditional transformer systems.
Step Up Down Pole Mounted Transformer Outdoor Oil Immersed 25KVA 37.5KVA 75KVA
Step Up Down Pole Mounted Transformer Outdoor Oil Immersed 25KVA 37.5KVA 75KVA
Our Service Process
Step 1: Consultation & Quotation

We respond within 1 hour with suitable transformer recommendations, reasonable quotations, and payment terms. Our technical team provides detailed drawings within 7 days after payment.

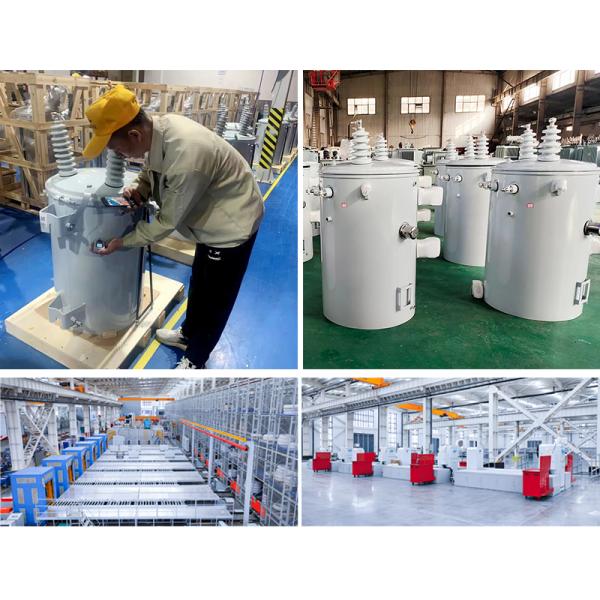

Step 2: Production & Quality Control

After design approval, we prepare materials, manufacture, and conduct rigorous quality inspections. We provide QC reports and test reports for all products.

Step 3: Installation & Support

We offer professional installation guidance and on-site support. All products come with a 2-year warranty and ongoing technical support.

Certifications
Step Up Down Pole Mounted Transformer Outdoor Oil Immersed 25KVA 37.5KVA 75KVA
Step Up Down Pole Mounted Transformer Outdoor Oil Immersed 25KVA 37.5KVA 75KVA
Step Up Down Pole Mounted Transformer Outdoor Oil Immersed 25KVA 37.5KVA 75KVA
Step Up Down Pole Mounted Transformer Outdoor Oil Immersed 25KVA 37.5KVA 75KVA
