Specifications
Description

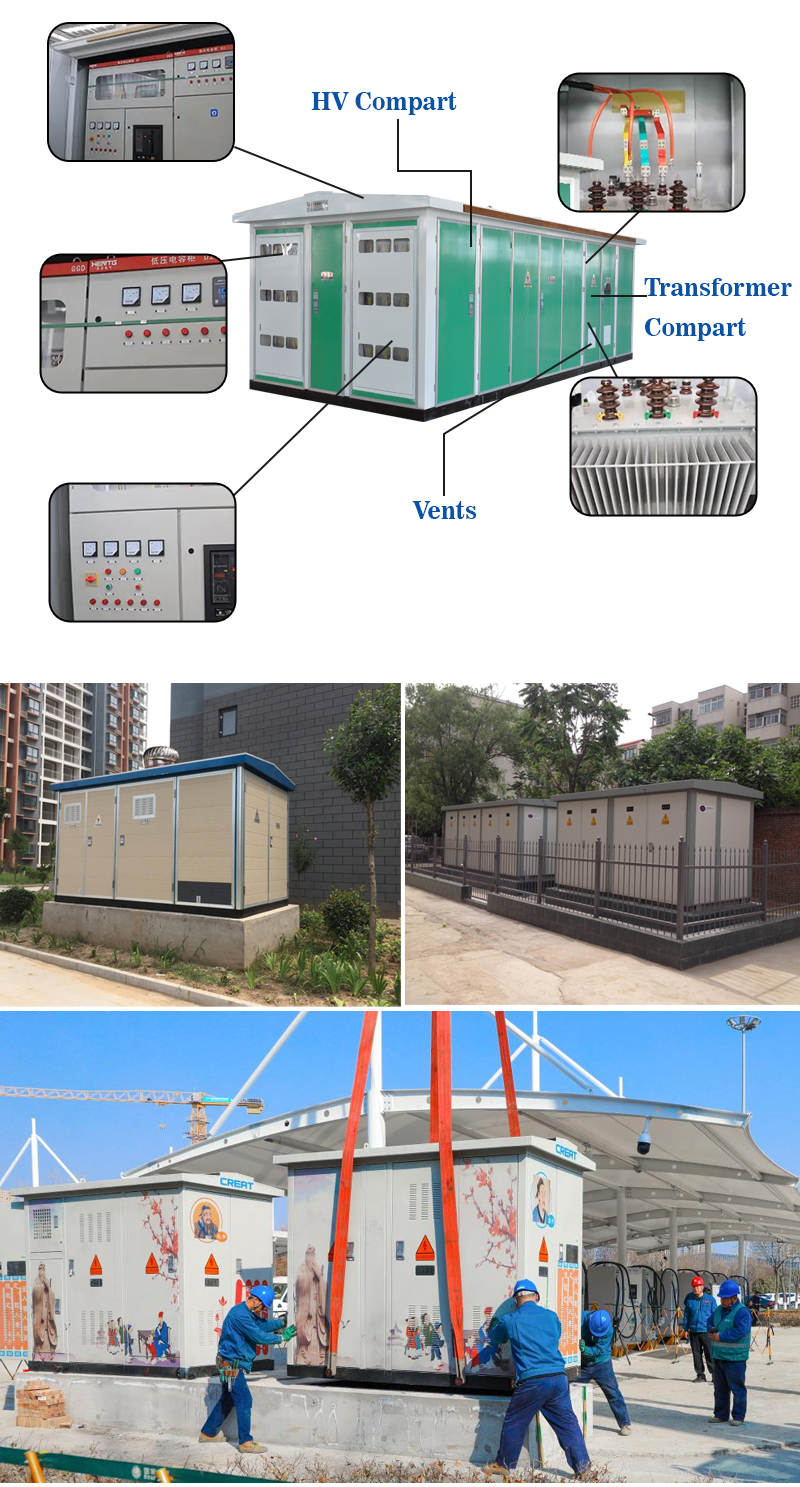

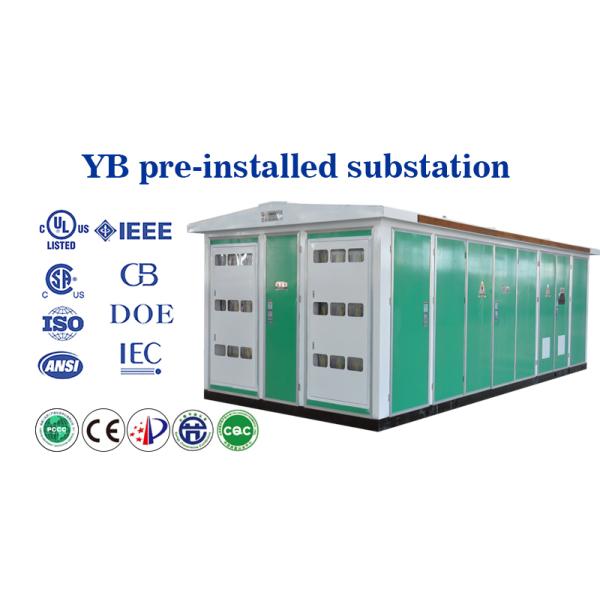

Hentg Power 11KV 2000KVA Oil-Immersed Distribution Box Pre-Fabricated Substation Intelligent HV/MV Transformer
Product Features
  • Aesthetic and Durable Appearance: Clean, modern design with strong environmental adaptability that integrates well with surrounding architecture and landscaping.
  • Proximity to Medium-Voltage Load Centers: Enables deployment close to load centers, reducing distribution line length, lowering losses, and improving power quality and reliability.
  • Cost-Effective Operation: Requires no civil infrastructure or full-time staffing, with long maintenance cycles for lower total cost of ownership.
  • Reusable and Environmentally Friendly: Modular design allows relocation and reuse based on urban development needs, supporting sustainable development goals.
11KV 2000KVA Oil-Immersed Box Type Substation Intelligent HV/MV Transformer for Industrial Applications 11KV 2000KVA Oil-Immersed Box Type Substation Intelligent HV/MV Transformer for Industrial Applications
Technical Specifications
HV Specifications
Rated Frequency Hz 50
Rated Voltage kV 6, 10, 35
Max Working Voltage kV 6.9, 11.5, 40.5
Industrial Frequency Voltage-resisting kV 32/36, 42/48, 95/118
Thunder and Lighting Voltage-resisting kV 60/70, 75/85, 185/215
Rated Current A 400, 630
Rated Brief-period Current-resisting kA 12.5(2s), 16(2s), 20(2s)
Rated Crest Value Current-resisting kA 32.5, 40, 50
LV Specifications
Rated Voltage V 380, 220
Rated Current Of Major Circuit A 100-3200
Rated short-circuit Current-resisting kA 15, 30, 50
Rated Crest Value Current-resisting kA 30, 63, 110
Branch Circuit A 10-800
Quantity Of Branch line 1-12
Compensation Circuit kVAR 0-360
Transformer Specifications
Rated Capacity kVA 50-2000
Short-circuit Impedance % 4, 6
Scope Of Branch Connection ±2x2.5%, ±5%
Vector Group Yyn0, Dyn11
