35KV Substation Three Phase Compact Transformer Substation Solar Plant Combination Industrial Controls
Product Description

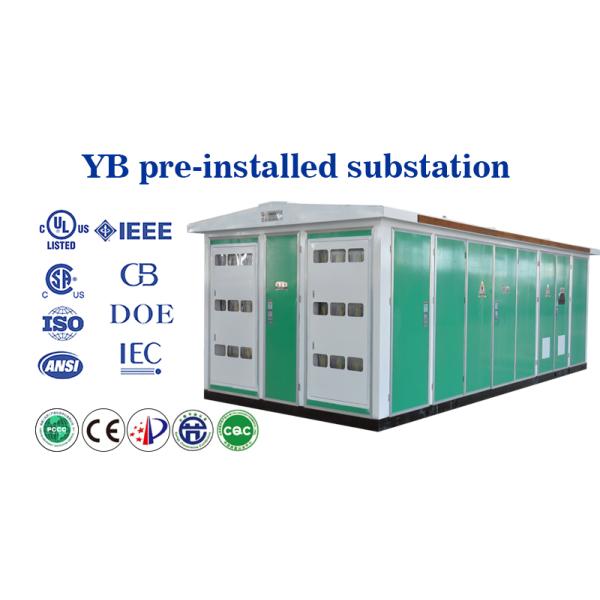

The 35kV Three-Phase Compact Transformer Substation (also known as a combined or prefabricated substation) integrates a high-voltage switchgear, transformer, and low-voltage distribution cabinet into a single, fully enclosed structure.

It is widely used in solar power plants, wind farms, industrial projects, and urban power distribution systems, providing a safe, efficient, and flexible power delivery solution.

35KV Three Phase Compact Transformer Substation for Solar Plant Combination and Industrial Controls 35KV Three Phase Compact Transformer Substation for Solar Plant Combination and Industrial Controls
Technical Specifications
HV Item Unit Data
Rated Frequency Hz 50
Rated Voltage kV 6 10 35
Max Working Voltage kV 6.9 11.5 40.5
Industrial Frequency Voltage-resisting Time kV 32/36 42/48 95/118
Thunder and Lighting Ballistic Voltage-resisting Time kV 60/70 75/85 185/215
Rated Current A 400 630
Rated Brief-period Current-resisting kA 12.5(2s) 16(2s) 20(2s)
Rated Crest Value Current-resisting kA 32.5 40 50
LV Item Unit Data
Rated Voltage V 380 220
Rated Current Of Major Return Circuit A 100-3200
Rated short-circuit Current-resisting kA 15 30 50
Rated Crest Value Current-resisting kA 30 63 110
Branch Circuit A 10-800
Quantity Of Branch line 1月12日
Compensation Circuit kVAR 0-360
Transforming Unit Data
Rated Capacity kVA 50-2000
Short-circuit Impendance % 4 6
Scope Of Branch Connection +2x2.5% ±5%
Vector Group Yyn0 Dyn11

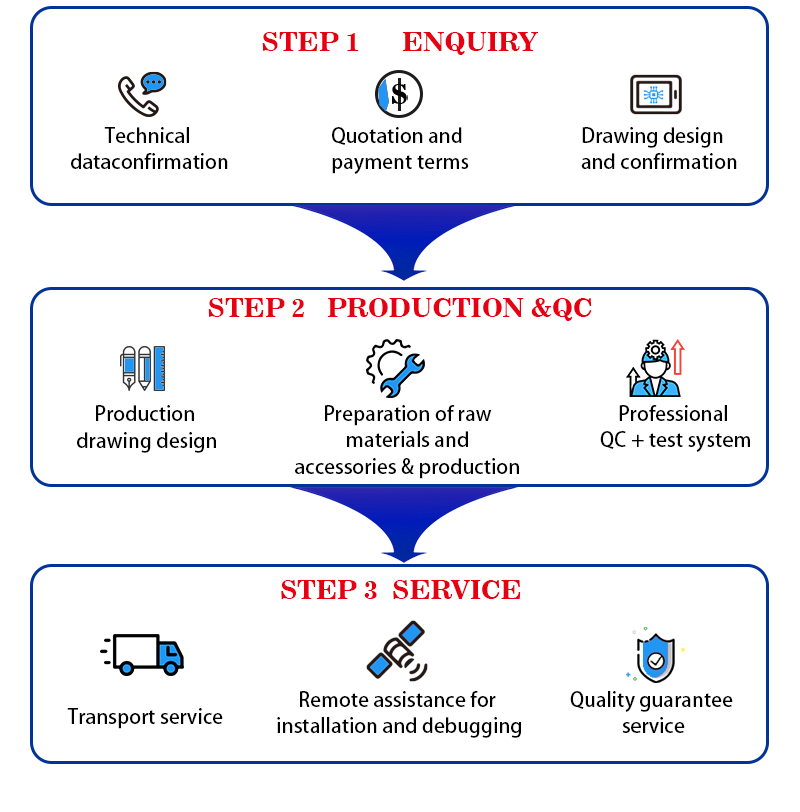

Consulting Process

Step 1: We will respond to your inquiry within 1 hour and recommend suitable transformer according to your needs. We provide reasonable quotations and payment terms, with technical confirmation within 7 days after payment.

Step 2: After design approval, we prepare materials, produce, and conduct quality inspections. We provide QC and test reports for quality assurance.

Step 3: We offer installation guidance or on-site support, plus a 2+ year warranty service.

35KV Three Phase Compact Transformer Substation for Solar Plant Combination and Industrial Controls
Key Advantages
  • Aesthetic and Durable Appearance: Clean modern design with strong environmental adaptability that integrates well with urban architecture.
  • Proximity to Medium-Voltage Load Centers: Reduces distribution line length, lowering losses and improving power quality.
  • Cost-Effective Operation: No civil infrastructure needed, minimal staffing requirements, and long maintenance cycles reduce total cost of ownership.
  • Reusable and Eco-Friendly: Modular design allows relocation and reuse, supporting sustainable development goals.
35KV Three Phase Compact Transformer Substation for Solar Plant Combination and Industrial Controls 35KV Three Phase Compact Transformer Substation for Solar Plant Combination and Industrial Controls
Production and Transportation
35KV Three Phase Compact Transformer Substation for Solar Plant Combination and Industrial Controls 35KV Three Phase Compact Transformer Substation for Solar Plant Combination and Industrial Controls
Application Scenarios
35KV Three Phase Compact Transformer Substation for Solar Plant Combination and Industrial Controls
