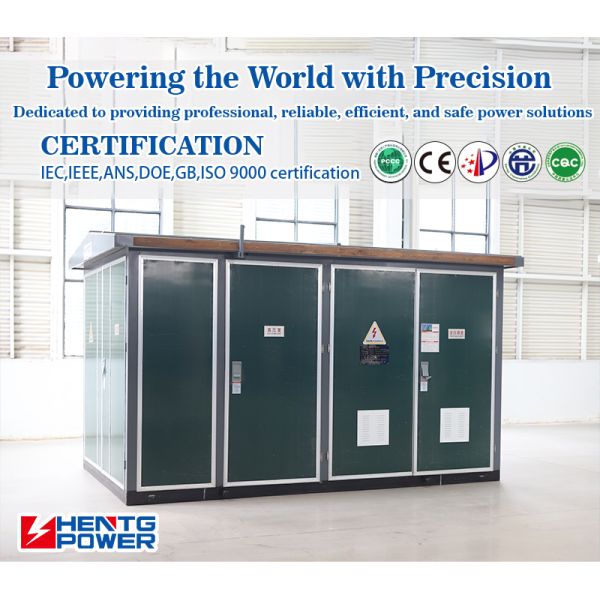

Outdoor Box Type Substation Compact Substation with 500kva 630kva 800kva Power Transformer
Outdoor Box Type Substation Compact Substation with 500kva 630kva 800kva Power Transformer
Outdoor Box Type Substation Compact Substation with 500kva 630kva 800kva Power Transformer
Outdoor Box Type Substation Compact Substation with 500kva 630kva 800kva Power Transformer
Outdoor Box Type Substation Compact Substation with 500kva 630kva 800kva Power Transformer
Outdoor Box Type Substation Compact Substation with 500kva 630kva 800kva Power Transformer
Specifications
Description
Transformer Manufacturer Box Type Substation
Outdoor Power Transformer Compact Substation - 500kVA, 630kVA, 800kVA

High-performance box type substation designed for outdoor power distribution applications. Available in 500kVA, 630kVA, and 800kVA configurations to meet diverse electrical infrastructure requirements.

Outdoor Box Type Substation Compact Substation with 500kva 630kva 800kva Power Transformer
Key Features:
  • Compact and space-saving design for efficient installation
  • Robust construction for outdoor durability
  • Available in 500kVA, 630kVA, and 800kVA capacity options
  • Designed for reliable power distribution in industrial applications
  • Complies with industry standards for electrical safety
Technical Data For YB Pre-installed Substation
HV Item Unit Date
Rated Frequecy Hz 50
Rated Voltage kV 6 10 35
Industrial Requency Voltage-resisting Time / kV 32/36 42/48 95/118
isolationBallisticVoltage-resisting
Thunder and Lighting Ballistic Voltage-resisting Time /isolation Sectional Port kV 60/70 75/85 185/215
Rated Curent A 400 630
Rated Brief-period Curent-resisting kA 12.5(2s) 16(2s) 20(2s)
Rated Crest Value Curent-resisting kA 32.5 40 50
LV Rated Voltage V 380 220
Rated Current Of Major Return Circuit A 100-3200
Branch Circuit A 10-800
Quantity Of Branch line 1月12日
Compensation Circuit kVAR 0-360
Transtorming Rated Capacity kVA 50-2000
Short-circuit lmpendance % 4 6
Scope Of Branch Connection
+2x2.5% ±5%
Vector Group
Yyn0 Dyn11
