Box Type Compact Substation 500kva 630kva 800kva Outdoor Power Transformer
Box Type Compact Substation 500kva 630kva 800kva Outdoor Power Transformer
Box Type Compact Substation 500kva 630kva 800kva Outdoor Power Transformer
Box Type Compact Substation 500kva 630kva 800kva Outdoor Power Transformer
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
HENTG Power
Model Number :
ZGS Series
Price :
CN¥62,678-123,931.50/sets
Certification :
CE
Type :
power transformer, distribution transformer
Material :
Aluminum, Copper
Frequency :
50Hz, 60Hz
Shape :
Rectangle
Winding Material :
Copper, Aluminum
application :
Power
Phase :
Three
Coil Structure :
Circular coil
Coil Number :
Multi-winding coil
Input Voltage :
6kV, 10kV, 15kV, 35kV, 69kV, 110kV, 115kV
Output Voltage :
415V, 127V, 200V, 208V, 400V , 380V, 220V, 110V, 480V
Product name :
Pre-Installed Substation
Altitude :
<1000m (High altitude products can be customized)
Installation Location :
Outdoor
Capacity :
500-2000 kVA
Customized :
Accept
Voltage Rating :
11kV
Power Rating :
500kVA
Insulation Class :
Class F
Dimensions :
1200mm x 800mm x 1000mm
Cooling Method :
ONAN
Efficiency :
≥ 97%
Operating Temperature :
-25°C to 40°C
Installation Type :
Outdoor
Product Type :
Transformer
MOQ :
2 sets
Description


HENTG POWER Transformer Manufacturer Box Type Substation Outdoor 500kva 630kva 800kva Power Transformer Compact Substation

HENTG Power’s pad-mounted transformer is a fully sealed, fully insulated ground-mounted distribution unit, widely used in residential areas, shopping centers, industrial plants, and public parks. Built to North American standards, it offers high reliability, enhanced safety, and easy installation.
Box Type Compact Substation 500kva 630kva 800kva Outdoor Power Transformer
Technical Data For YB Pre-installed Substation











HV
Item
Unit
Date

Rated Frequecy
Hz
50

Rated Voltage
kV
6 10 35

Max Working Voltage
kV
6.9 11.5 40.5

Industrial Requency Voltage-resisting Time /
kV
32/36 42/48 95/118

isolationBallisticVoltage-resisting



Thunder and Lighting Ballistic Voltage-resisting Time /isolation Sectional Port
kV
60/70 75/85 185/215

Rated Curent
A
400 630

Rated Brief-period Curent-resisting
kA
12.5(2s) 16(2s) 20(2s)

Rated Crest Value Curent-resisting
kA
32.5 40 50




LV
Rated Voltage
V
380 220

Rated Current Of Major Return Circuit
A
100-3200

Rated short-circuit Current-resisting
kA
15 30 50

Rated Crest Value Current-resisting
kA
30 63 110

Branch Circuit
A
10-800

Quantity Of Branch
line
1月12日

Compensation Circuit
kVAR
0-360


Transtorming
Rated Capacity
kVA
50-2000

Short-circuit lmpendance
%
4 6

Scope Of Branch Connection

+2x2.5% ±5%

Vector Group

Yyn0 Dyn11



Step 1:
We will respond to your inquiry within 1 hour and recommend suitable transformer according to your needs. At the same
time, we will provide you with reasonable quotations and payment terms.We have a professional and independent drawing team and technical team, and we will confirm all the contents on the drawing with you within 7 days after payment. The drawing usually contains technical data, weight and parts list. If you have any questions, please click here to consult.
Step 2:
After designing the production drawing, the factory will prepare the stock, produce, and conduct quality inspection before shipment. If you have special accessory requirements, we can provide you with accessories. Our raw materials are strictly screened. In the quality inspection stage, we will provide you with the dual guarantee of QC report and test report to escort your products.
Step 3:

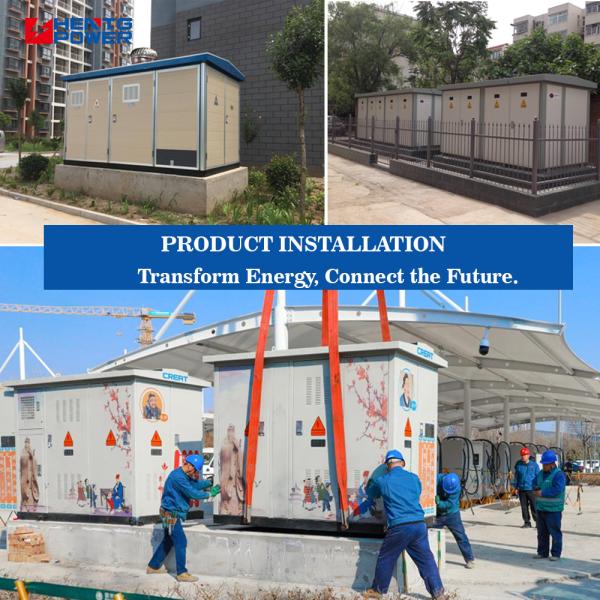

We have a professional team to guide the installation, and also support on-site installation. We will provide you with more than 2 years of warranty service. Welcome to join us and create a win-win situation. Click here to start our business now.

If you have any questions, welcome to click here for discussion !!!

Box Type Compact Substation 500kva 630kva 800kva Outdoor Power Transformer
✅ Aesthetic and Durable Appearance
The unit has a clean and modern appearance, with strong environmental adaptability. lt integrates well with surrounding architecture and landscaping, enhancing the overall urban aesthetic.

✅ Proximity to Medium-Voltage Load Centers
Enables deployment close to medium-voltage load centers, reducing distribution line length, lowering line losses, and improving power quality and supply reliability.

✅ Cost-Effective and Low Operating Costs
Requires no civil infrastructure, reducing initial investment, No need for full-time staffing, minimizing labor costs The long maintenance cycle and easy operation result in a lower total cost of ownership throughout the life-cycle.

✅ Reusable and Environmentally Friendly
The modular substation can be relocated and reused based on urban development needs, avoiding redundant investments and supporting sustainable development goals.
CERTIFICATIONS
Box Type Compact Substation 500kva 630kva 800kva Outdoor Power Transformer
Q: Who are we ?
HENTG POWER is a professional designer, manufacturer and installer of power system solution around the World, was founded in 2011, occupies 100,000 square meter. specializing in reliable, high-performance solutions for global power systems
Q: How can we guarantee quality ?
Always a pre-production sample before mass production; Always final Inspection before shipment, We will provide QC & test reports. We accept FAT(Factory Acceptance Test). Factory can manufacture oil type and dry type distribution transformer, max 500KV 480MVA power transformer, GIS, switchgear, substation, based on ANSI/IEEE/DOE2016/CSA/IEC60076 standard. We will provide you with the guarantee service of over 2 years.
Q: Why choose us?
We have the professional and independent drawing team and technical team, It is expected that we can confirm all the contents on the drawings with you within 7 days. we have a professional technical team with 30+ senior engineers offer 24 hours online service and response within 30 min.
Q: What services can we provide ?
Accept OEM, business payment are negotiated.
