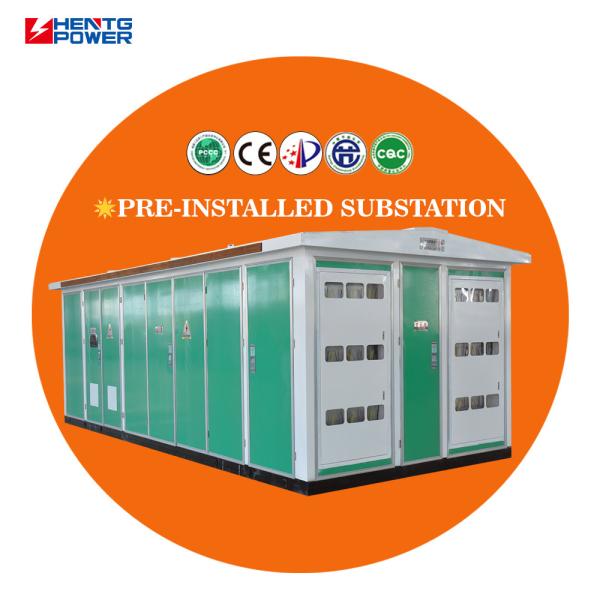

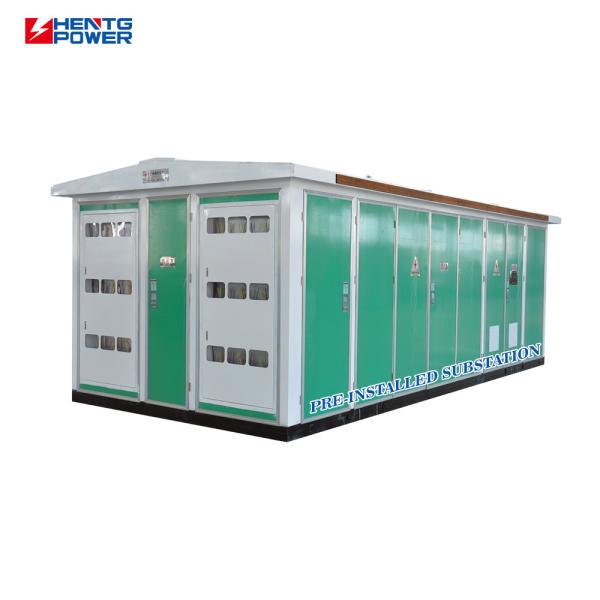

Compact Substation Electricity Power Trafo Transformer Mv 3 Phase Oil Type 1000kva 1500Kva
Compact Substation Electricity Power Trafo Transformer Mv 3 Phase Oil Type 1000kva 1500Kva
Compact Substation Electricity Power Trafo Transformer Mv 3 Phase Oil Type 1000kva 1500Kva
Compact Substation Electricity Power Trafo Transformer Mv 3 Phase Oil Type 1000kva 1500Kva
Compact Substation Electricity Power Trafo Transformer Mv 3 Phase Oil Type 1000kva 1500Kva
Compact Substation Electricity Power Trafo Transformer Mv 3 Phase Oil Type 1000kva 1500Kva
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
HENTG Power
Model Number :
YB/ZGS
Price :
CN¥178,062.50-249,287.50/units
Certification :
CE
Type :
distribution transformer, Oil-filled Electrical Distribution Transformer
Material :
Copper, Aluminum, Cooper
Frequency :
50Hz, 60Hz
Shape :
Rectangle
Winding Material :
Aluminum, Copper
application :
Power
Phase :
Three
Coil Structure :
Circular coil
Coil Number :
Multi-winding coil
Input Voltage :
3kV, 6kV, 10kV, 15kV, 35kV, 69kV, 110kV, 115kV, 132kV, 220kV, 400kV
Output Voltage :
11kV, 415V, 110V, 220V, 380V, 440V, 480V
Product name :
Compact Substation
Warranty :
3 Years
Cooling Method :
ONAN ONAF OFAF
Operating temperature :
-25~25
Feature :
Compact
Vector Group :
Dyn11/Yyn0
Primary voltage :
6KV, 10KV 35KV
Transformer type :
Oil-type
MOQ :
2 sets
Description
HENTG POWER Compact Substation Electricity Power 1500kVA Trafo Transformer MV 3 Phase Oil Type 1000kVA Voltage 35kV Transformer
Integrated Design: All-in-one unit integrating HV switchgear, transformer, and LV cabinet, saving civil work and installation time.

Applications:
Solar and wind farms
Urban grid upgrades
Smart infrastructure
Industrial zones
Large commercial facilities
Compact Substation Electricity Power Trafo Transformer Mv 3 Phase Oil Type 1000kva 1500Kva
Technical Data For YB Pre-installed Substation











HV
Ltem
Unit
Date

Rated Frequecy
Hz
50

Rated Voltage
kV
6 10 35

Max Working Voltage
kV
6.9 11.5 40.5

Industrial Requency Voltage-resisting Time /
kV
32/36 42/48 95/118

isolationBallisticVoltage-resisting



Thunderand Lighting BallisticVoltage-resistingTime /isolation SectionalPort
kV
60/70 75/85 185/215

Rated Curent
A
400 630

Rated Brief-period Curent-resisting
kA
12.5(2s) 16(2s) 20(2s)

Rated Crest Value Curent-resisting
kA
32.5 40 50




LV
Rated Voltage
V
380 220

Rated Current Of Major Retur Circuit
A
100-3200

Rated short-circuit Curent-resisting
kA
15 30 50

Rated Crest Value Current-resisting
kA
30 63 110

Branch Circuit
A
10-800

Quantity Of Branch
line
1月12日

Compensation Circuit
kVAR
0-360


Transtorming
Rated Capacity
kVA
50-2000

Short-circuit lmpendance
%
4 6

Scope Of Branch Connection

+2x2.5% ±5%

Vector Group

Yyn0 Dyn11



Step 1:
We will respond to your inquiry within 1 hour and recommend suitable transformer according to your needs. At the same
time, we will provide you with reasonable quotations and payment terms.We have a professional and independent drawing team andte chnical team, and we will confirm all the contents on the drawing with you within 7 days after payment. The drawing usually contains technical data, weight and parts list. If you have any questions, please click here to consult.
Step 2:
After designing the production drawing, the factory will prepare the stock, produce, and conduct quality inspection
before shipment. If you have special accessory requirements, we can provide you with accessories. Our raw materials are strictly screened. In the quality inspection stage, we will provide you with the dual guarantee of QC report and test report to escort your products.
Step 3:
We have a professional team to guide the installation, and also support on-site installation. We will provide you with more than 2 years of warranty service. Welcome to join us and create a win-win situation. Click here to start our business now.

If you have any questions, welcome to click here for discussion !!!
PRODUCTION AND TRANSPORTATION PROCESS
Compact Substation Electricity Power Trafo Transformer Mv 3 Phase Oil Type 1000kva 1500Kva

Compact Substation Electricity Power Trafo Transformer Mv 3 Phase Oil Type 1000kva 1500Kva
✅Aestheticand Durable Appearance
The unit has a clean and modern appearance, with strong environmentaladaptability.lt integrates wellwith surrounding architecture and landscaping, enhancing the overall urban aesthetic.

✅Proximity to Medium-Voltage Load Centers
Enables deployment close to medium-voltage load centers, reducing distribution line length, loweringline losses, and improving power quality and supply reliability.

✅Cost-Effective and Low Operating Costs
Requires no civil infrastructure, reducing initial investment, No need for fulltime staffing, minimizinglabor costs. The long maintenance cycle and easy operation result in a lower total cost of ownershipthroughout the lifecycle.

✅Reusable and Environmentally Friendly
The modular substation can be relocated and reused based on urban development needs, avoidingredundant investments andsupportingsustainable development goals.
Compact Substation Electricity Power Trafo Transformer Mv 3 Phase Oil Type 1000kva 1500Kva
Q: Who are we ?
HENTG POWER is a professional designer, manufacturer and installer of power system solution around the World, was
founded in 2011, occupies 100,000 square meter. specializing in reliable, high-performance solutions for global power systems
Q: How can we guarantee quality ?
Always a pre-production sample before mass production; Always final Inspection before shipment, We
will provide QC & test reports. We accept FAT(Factory Acceptance Test). Factory can manufacture oil type and dry type distribution transformer, max 500KV 480MVA power transformer, GIS, switchgear, substation, based on ANSI/IEEE/DOE2016/CSA/IEC60076 standard. We will provide you with the guarantee service of over 2 years.
Q: Why choose us?
We have the professional and independent drawing team and technical team, It is expected that we can confirm all the contents on the drawings with you within 7 days. we have a professional technical team with 30+ senior engineers offer 24 hours online service and response within 30 min.
Q: What services can we provide ?
Accept OEM, business payment are negotiated.
