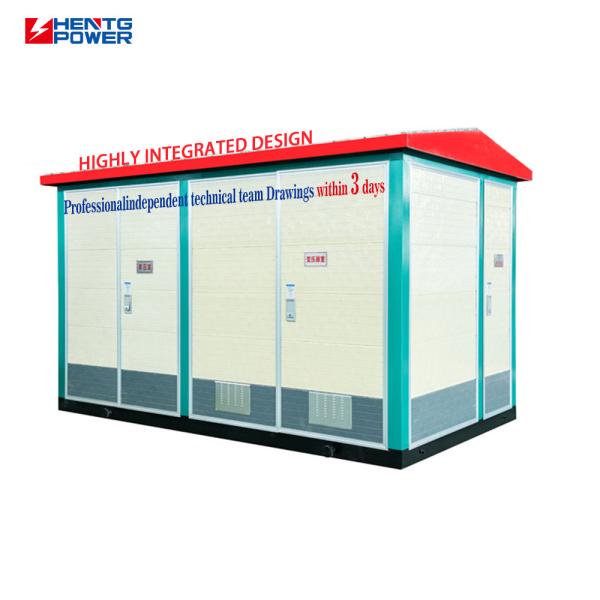

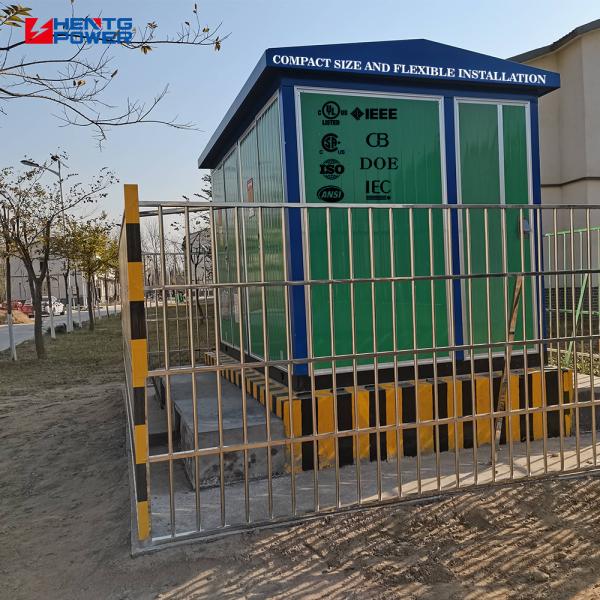

1500kVA Compact Substation Voltage Transformer 3 Phase Ground Mounted Transformer
1500kVA Compact Substation Voltage Transformer 3 Phase Ground Mounted Transformer
1500kVA Compact Substation Voltage Transformer 3 Phase Ground Mounted Transformer
1500kVA Compact Substation Voltage Transformer 3 Phase Ground Mounted Transformer
1500kVA Compact Substation Voltage Transformer 3 Phase Ground Mounted Transformer
1500kVA Compact Substation Voltage Transformer 3 Phase Ground Mounted Transformer
Specifications
Place of Origin :
Hunan, China
Brand Name :
HENTG Power
Model Number :
YB
Certification :
CE
Price :
CN¥228,048.21/pieces 1-9 pieces
Type :
power transformer, distribution transformer, Auto Transformer
Frequency :
50Hz, 60Hz
Winding Material :
Aluminum
application :
Power
Phase :
Three
Coil Structure :
Layered Winding
Coil Number :
Multi-winding coil
Input Voltage :
3kV, 6kV, 10kV, 15kV, 35kV, 69kV, 110kV, 220kV, 400kV, 115kV, 132kV
Output Voltage :
5V, 400V , 208V, 200V, 415V, 127V, 11kV, 12V , 24V, 48V, 110V, 220V, 36V, 380V, 440V, 480V, 9V
Material :
Aluminum Winding
Product name :
Three Phase Transformer
Application :
Power Distribution System
Usage :
Power Electronic
Transformer type :
YBD Preinstalled
Feature :
High Efficiency
Name :
High Fequency Transformer
Keyword :
Substation Power Transformer
MOQ :
2 sets
Description
Pad-Mounted Transformer | 50KVA~2500KVA | Ground-Mounted, Fully Sealed, Safe & Reliable
Fully sealed tank design eliminates oil breathing and contamination risk, ensuring long-lasting operation;
Side-mounted operation cabinet hides live parts, ideal for residential and public areas.
Technical Data For YB Pre-installed Substation
HV
Ltem
Unit
Date
Rated Frequecy
Hz
50
Rated Voltage
kV
6 10 35
Max Working Voltage
kV
6.9 11.5 40.5
Industrial Requency Voltage-resisting Time /
kV
32/36 42/48 95/118
isolationBallisticVoltage-resisting
Thunderand Lighting BallisticVoltage-resistingTime /isolation SectionalPort
kV
60/70 75/85 185/215
Rated Curent
A
400 630
Rated Brief-period Curent-resisting
kA
12.5(2s) 16(2s) 20(2s)
Rated Crest Value Curent-resisting
kA
32.5 40 50
LV
Rated Voltage
V
380 220
Rated Current Of Major Retur Circuit
A
100-3200
Rated short-circuit Curent-resisting
kA
15 30 50
Rated Crest Value Current-resisting
kA
30 63 110
Branch Circuit
A
10-800
Quantity Of Branch
line
1月12日
Compensation Circuit
kVAR
0-360
Transtorming
Rated Capacity
kVA
50-2000
Short-circuit lmpendance
%
4 6
Scope Of Branch Connection
+2x2.5% ±5%
Vector Group
Yyn0 Dyn11
Step 1:
We will respond to your inquiry within 1 hour and recommend suitable transformer according to your needs. At the same
time, we will provide you with reasonable quotations and payment terms.We have a professional and independent drawing team andte chnical team, and we will confirm all the contents on the drawing with you within 7 days after payment. The drawing usually contains technical data, weight and parts list. If you have any questions, please click here to consult.
Step 2:
After designing the production drawing, the factory will prepare the stock, produce, and conduct quality inspection
before shipment. If you have special accessory requirements, we can provide you with accessories. Our raw materials are strictly screened. In the quality inspection stage, we will provide you with the dual guarantee of QC report and test report to escort your products.
Step 3:

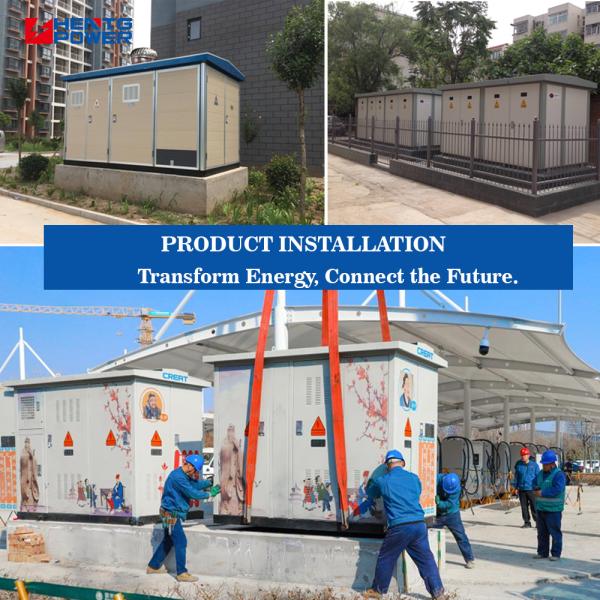

We have a professional team to guide the installation, and also support on-site installation. We will provide you with more than 2 years of warranty service. Welcome to join us and create a win-win situation. Click here to start our business now.

If you have any questions, welcome to click here for discussion !!!
1500kVA Compact Substation Voltage Transformer 3 Phase Ground Mounted Transformer
FAQs
Q: Who are we ?
HENTG POWER is a professional designer, manufacturer and installer of power system solution around the World, was
founded in 2011, occupies 100,000 square meter. specializing in reliable, high-performance solutions for global power systems
Q: How can we guarantee quality ?
Always a pre-production sample before mass production; Always final Inspection before shipment, We will provide QC & test reports. We accept FAT(Factory Acceptance Test). Factory can manufacture oil type and dry type distributiontransformer, max 500KV 480MVA power transformer, GIS, switchgear, substation, based on ANSI/IEEE/DOE2016/CSA/IEC60076 standard. Wewill provide you with the guarantee service of over 2 years.
Q: Why choose us?
We have the professional and independent drawing team and technical team, It is expected that we can confirm all the contents on the drawings with you within 7 days. we have a professional technical team with 30+ senior engineers offer 24 hours online service and response within 30 min.
Q: What services can we provide ?
Accept OEM, business payment are negotiated.
