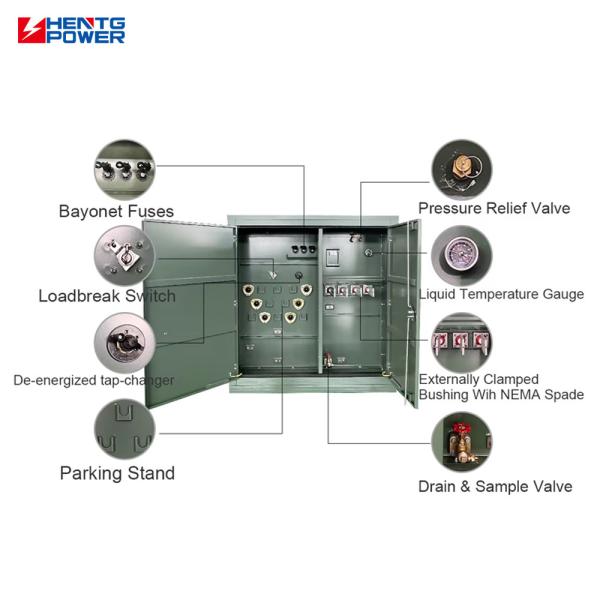

Product Overview:

The 500kVA Three-Phase Pad-Mounted Transformer offers a robust, energy-efficient solution for medium to large commercial, industrial, and utility applications. Designed for outdoor installations, this transformer provides stable and reliable power distribution with minimal maintenance. Its oil-immersed cooling system ensures optimal performance, even in demanding environments, while the tamper-proof design provides security and longevity. Ideal for applications requiring a constant, balanced power supply, the 500kVA transformer is engineered to meet high-performance standards and to withstand the rigors of continuous operation.

F - Features

• Rated Capacity: 500 kVA

• Type: Three-Phase, Pad-Mounted, Oil-Immersed

• Primary Voltage: Customizable (e.g., 11kV, 13.8kV, 12.47kV)

• Secondary Voltage: Customizable (e.g., 480Y/277V, 208Y/120V)

• Frequency: 50Hz / 60Hz

• Cooling Method: Oil Natural Air Natural (ONAN)

• Temperature Rise: 65°C (standard)

• Tap Changer: Off-circuit tap changer ±2×2.5% (customizable)

• Protection Rating: IP23 (Optional: IP44, IP54 for more severe environments)

• Insulation Level: BIL 95kV or according to customer specifications

• Enclosure: Weatherproof, tamper-resistant design (ANSI/IEEE standards compliant)

• Noise Level: ≤ 55 dB (low noise for residential and urban applications)

• Weight: Approx. 2500–3000 kg (depending on configuration)

B - Benefits

• ✅ Energy-Efficient Operation: High-performance core and winding design minimize energy losses, reducing operational costs.

• ✅ Durability & Reliability: Oil-immersed design provides superior cooling and extends transformer lifespan, ensuring uninterrupted power supply.

• ✅ Outdoor-Ready: The tamper-proof, weatherproof enclosure is built to withstand harsh outdoor conditions, making it perfect for both urban and rural environments.

• ✅ Cost-Effective Maintenance: Reduced maintenance needs thanks to the sealed tank and advanced cooling system, minimizing downtime and extending service life.

• ✅ Flexible Power Options: Customizable voltage configurations to meet specific energy requirements for different applications.

• ✅ Quiet & Safe: Low-noise operation (≤ 55 dB) makes it suitable for noise-sensitive environments like hospitals, schools, and residential areas.

• ✅ Meets Global Standards: Manufactured to meet ANSI/IEEE and IEC safety standards, ensuring a reliable, compliant product for your power distribution needs.

A - Application

Common Uses:

• Utility Substations: Ideal for medium-voltage distribution in substations serving urban or industrial areas.

• Industrial Facilities: Powers manufacturing plants, automation systems, HVAC systems, and more.

• Commercial Buildings: Perfect for office complexes, shopping malls, schools, and hospitals requiring reliable three-phase power.

• Public Infrastructure: Powers outdoor lighting, utility systems, and communication towers in public spaces.

• Renewable Energy Projects: Ideal for integration with renewable energy sources, such as solar and wind farms, to provide stable grid connections.
