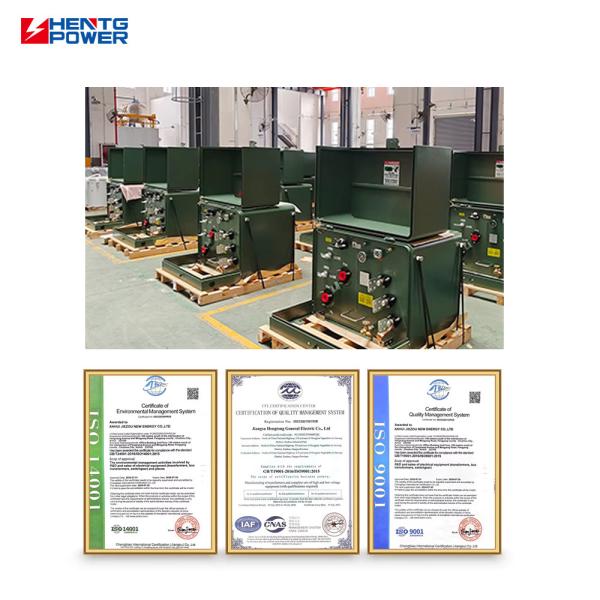

Aluminum Winding Single Phase Pad Mounted Transformer Oil Filled For Light Industrial
Aluminum Winding Single Phase Pad Mounted Transformer Oil Filled For Light Industrial
Aluminum Winding Single Phase Pad Mounted Transformer Oil Filled For Light Industrial
Aluminum Winding Single Phase Pad Mounted Transformer Oil Filled For Light Industrial
Specifications
Place of Origin :
Hunan, China
Brand Name :
HENTG Power
Model Number :
ZGS
Certification :
CE
Price :
CN¥2100-5900/pieces
MOQ :
2 sets
Type :
distribution transformer, power transformer, Oil-filled Transformer
Winding Material :
Aluminum
application :
Power
Phase :
Single Phase
Coil Number :
Multi-winding coil
Input Voltage :
3kV, 6kV, 10kV, 15kV, 35kV, 69kV, 110kV, 220kV, 400kV, 115kV, 132kV
Output Voltage :
5V, 400V , 208V, 200V, 415V, 127V, 11kV, 12V , 24V, 48V, 110V, 220V, 36V, 380V, 440V, 480V, 9V
Application :
Power Distribution System
Product name :
Toroidal Transformer
Material :
Aluminum Winding
Usage :
Power Electronic
Transformer type :
Single Phase Auto transformer
Cooling Method :
ONAN ONAF OFAF
Feature :
High Efficiency
Name :
High Fequency Transformer
Description
Aluminum Winding Single Phase Pad Mounted Transformer Oil Filled For Light Industrial
Product Specifications
Attribute Value
Type distribution transformer, power transformer, Oil-filled Transformer
Winding Material Aluminum
Application Power
Phase Single Phase
Coil Number Multi-winding coil
Input Voltage 3kV, 6kV, 10kV, 15kV, 35kV, 69kV, 110kV, 220kV, 400kV, 115kV, 132kV
Output Voltage 5V, 400V, 208V, 200V, 415V, 127V, 11kV, 12V, 24V, 48V, 110V, 220V, 36V, 380V, 440V, 480V, 9V
Product Name Toroidal Transformer
Material Aluminum Winding
Usage Power Electronic
Transformer Type Single Phase Auto transformer
Cooling Method ONAN ONAF OFAF
Feature High Efficiency
Product Description

Transformer Single-Phase 25kVA 50kVA 100kVA Pad Mounted for Transformers Competitive Price

Single Phase Pad Mounted Oil-Immersed Distribution Transformer (15kVA~500kVA) is designed for reliable, safe, and efficient power distribution in residential, commercial, and light industrial applications. Featuring a compact, tamper-proof, and weather-resistant pad-mounted design, this transformer ensures minimal maintenance and excellent performance in outdoor environments.

Optional Features
  • Bayonet-style fuse protection
  • Pressure relief valve & liquid level gauge
  • Surge arrester mounting brackets
  • Stainless steel cabinet or marine paint
  • Pad mounting base or lifting lugs
Technical Specifications
Capacity (KVA) HV Tapping range LV No-load loss Load loss Dimension(mm) Efficiency
15 2400
4160
7200
7620
12000
12470
13200
13800
14400
19920
24940
34500		 ±2X2.5% 110
120
208
240
277
347
415
416
480
600
690		 60
80
100
120
130
150		 330
370
450
620
850
1150		 610
610
610
610
610
740		 98.82
25 98.95
37.5 99.05
50 99.11
75 99.19
100 99.25
167 99.33
250 99.39
333 99.43
500 99.49
Our Process
Step 1:

We will respond to your inquiry within 1 hour and recommend suitable transformer according to your needs. At the same time, we will provide you with reasonable quotations and payment terms. We have a professional and independent drawing team and technical team, and we will confirm all the contents on the drawing with you within 7 days after payment. The drawing usually contains technical data, weight and parts list. If you have any questions, please click here to consult.

Step 2:

After designing the production drawing, the factory will prepare the stock, produce, and conduct quality inspection before shipment. If you have special accessory requirements, we can provide you with accessories. Our raw materials are strictly screened. In the quality inspection stage, we will provide you with the dual guarantee of QC report and test report to escort your products.

Step 3:

We have a professional team to guide the installation, and also support on-site installation. We will provide you with more than 2 years of warranty service. Welcome to join us and create a win-win situation. Click here to start our business now.

If you have any questions, welcome to click here for discussion!!!

Product Features

Single-phase pad-mounted transformer

is the type with a clamshell cabinet for ease to opening and uninhibited access to connection. Versatility of the design allows for various protection and switching configuration. It provides multi-service options while meeting the reliability and safety requirements of any distribution system. It has various ratings and with wide range of advanced configurations to meet customer's demands.

Pad mounted transformer

Ground installation, suitable for open areas such as residential areas and commercial parks. Fully sealed design, protection level NEMA 3R. Equipped with grounding ring, anti misoperation interlock, overcurrent protector, etc. High/low voltage compartments separation design ensures operational safety.

  • High reliability: Long service life, better reliability than traditional column mounted transformers
  • Good safety performance: fully enclosed design, preventing electric shock and external damage
  • Low noise operation: suitable for residential areas and other noise sensitive places
  • Convenient maintenance: modular structure for quick maintenance
  • Flexible configuration: Customizable shell, switch, protection and other functions according to user needs
Frequently Asked Questions
Q: Who are we?

HENTG POWER is a professional designer, manufacturer and installer of power system solution around the World, was founded in 2011, occupies 100,000 square meter. specializing in reliable, high-performance solutions for global power systems.

Q: How can we guarantee quality?

Always a pre-production sample before mass production; Always final Inspection before shipment, We will provide QC & test reports. We accept FAT(Factory Acceptance Test). Factory can manufacture oil type and dry type distribution transformer, max 500KV 480MVA power transformer, GIS, switchgear, substation, based on ANSI/IEEE/DOE2016/CSA/IEC60076 standard. We will provide you with the guarantee service of over 2 years.

Q: Why choose us?

We have the professional and independent drawing team and technical team, It is expected that we can confirm all the contents on the drawings with you within 7 days. we have a professional technical team with 30+ senior engineers offer 24 hours online service and response within 30 min.

Q: What services can we provide?

Accept OEM, business payment are negotiated.

Standards & Applications

Our products comply with GB 20052-2024 and IEC 60076 standards and are widely used in global markets across various applications.

We offer a wide range of transformers including:

  • Oil-immersed transformers
  • Dry-type power transformers
  • SH15 and SCBH15 amorphous alloy transformers
  • YB prefabricated substations
  • ZGS modular substations
  • Transformers for new energy systems
  • Custom-engineered specialty transformers
