Circular Coil 37.5KVA 75KVA Single Phase Pad Mounted Transformer 100kVA High Efficiency
Circular Coil 37.5KVA 75KVA Single Phase Pad Mounted Transformer 100kVA High Efficiency
Circular Coil 37.5KVA 75KVA Single Phase Pad Mounted Transformer 100kVA High Efficiency
Circular Coil 37.5KVA 75KVA Single Phase Pad Mounted Transformer 100kVA High Efficiency
Circular Coil 37.5KVA 75KVA Single Phase Pad Mounted Transformer 100kVA High Efficiency
Circular Coil 37.5KVA 75KVA Single Phase Pad Mounted Transformer 100kVA High Efficiency
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
HENTG Power
Model Number :
ZGS Series
Certification :
CE
Price :
CN¥9,252.62-39,857.44/sets
Type :
power transformer, distribution transformer
Material :
Metal, Copper/Aluminum
Frequency :
50Hz, 60Hz, 50Hz/60HZ
Shape :
Rectangle
Winding Material :
Aluminum, Copper
application :
Power
Phase :
Single Phase
Coil Structure :
Circular coil
Coil Number :
Triple-winding coil
Input Voltage :
10kV, 15kV, 35kV, 69kV, 110kV
Output Voltage :
400V , 200V, 415V, 220V, 380V, 110V
Product name :
Single Phase Pad Mounted Transformer
Capacity/KVA :
50kVA 75kVA 100kVA
Tapping Range :
2X2.5%
Efficiency :
>98.80%
Capacity :
37.5kVA 75kVA
Advantages :
Multi-Service Options to meet the reliability requirements
Customized :
Accept
Overload Capacity :
150%
Protection Level :
IP54
Impedance :
2-5%
Power Rating :
5-500 kVA
Voltage Rating :
2400-34500 V
Insulation Class :
Class A
Enclosure Type :
Pad-mounted
Cooling Method :
Self-cooled
Standards :
ANSI/IEEE C57.12.00
Temperature Rise :
55°C
MOQ :
2 sets
Description

VR
High Efficiency 37.5KVA 75KVA Factory Direct Single Phase Pad Mounted Transformer 100KVA

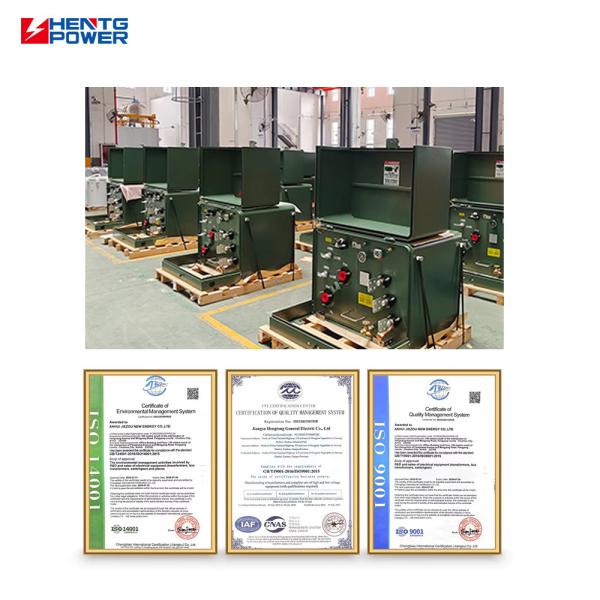

HENTG's Single-phase pad-mounted transformer is the type with a clamshell cabinet for easeto opening and uninhibited access to connection.Versatility of the design allows forvarious protection and switching configuration.lt provides multi-service options while meeting the reliability and safety requirementsof any distribution system.lt has various ratings and with wide range of advancedconfigurations to meet customer's demands.

Applications
Residential Distribution (Backyard/Sidewalk Transformers)

Commercial & Light Industrial Buildings

Shopping Centers & Office Parks

Urban Utility Networks

Renewable Projects (Solar Power)


SINGLE PHASE PAD MOUNTED TRANSFORMER









Capacity (KVA)
HV
Tapping range
LV
No-load loss
Load loss
Dimension(mm)


Efficiency






W
D
H

15
2400
4160
7200
7620
12000
12470
13200
13800
14400
19920
24940
34500




±2X2.5%
110
120
208
240
277
347
415
416
480
600
690
60
80
100
120
130
150
330
370
450
620
850
1150
610
610
610
610
610
740
740
740
760
810
960
940
840
840
840
840
840
840
98.82
25








98.95
37.5








99.05
50








99.11
75








99.19
100








99.25
167








99.33
250








99.39
333








99.43
500








99.49



Step 1:
We will respond to your inquiry within 1 hour and recommend suitable transformer according to your needs. At the same
time, we will provide you with reasonable quotations and payment terms.We have a professional and independent drawing team and technical team, and we will confirm all the contents on the drawing with you within 7 days after payment. The drawing usually contains technical data, weight and parts list. If you have any questions, please click here to consult.
Step 2:
After designing the production drawing, the factory will prepare the stock, produce, and conduct quality inspection
before shipment. If you have special accessory requirements, we can provide you with accessories. Our raw materials are
strictly screened. In the quality inspection stage, we will provide you with the dual guarantee of QC report and test report to
escort your products.
Step 3:
We have a professional team to guide the installation, and also support on-site installation. We will provide
you with more than 2 years of warranty service. Welcome to join us and create a win-win situation. Click here to start our
business now.
If you have any questions, welcome to click here for discussion !!!
Our products comply with GB 20052-2024 and lEC 60076 standards and are widely used in global markets across various applications

We offer a wide range of transformers including:

* Oil-immersed transformers

* Dry-type power transformers

* SH15 and SCBH15 amorphous alloy transformers

* YB prefabricated substations

* ZGS modular substations

* Transformers for new energy systems

* Custom-engineered specialty transformers
✅ Single-phase pad-mounted transformer

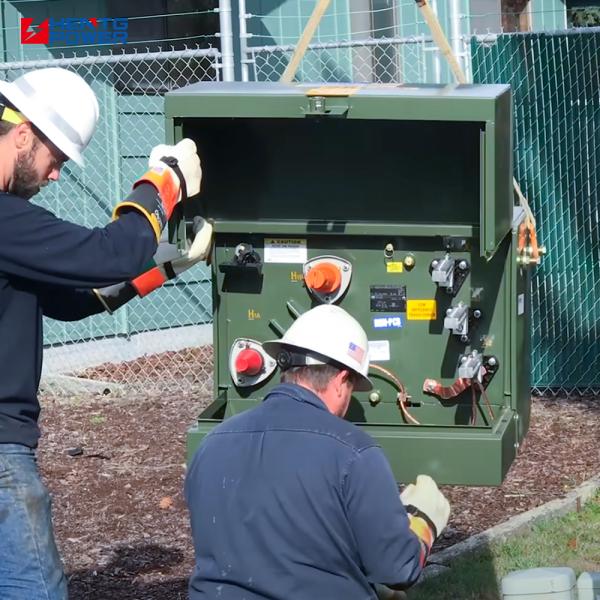

is the type with a clam shell cabinet for ease to opening and uninhibited access to connection. Versatility of the design allows for various protection and switching configuration.
It provides multi-service options while meeting the reliability and safety requirements of any distribution system. It has
various ratings and with wide range of advanced configurations to meet customer's demands
✅ Pad mounted transformer
Ground installation, suitable for open areas such as residential areas and commercial parks.Fully sealed design, protection
level, NEMA 3R. Equipped with grounding ring, anti-misoperation interlock, overload protector, etc. High low voltage
compartment separation design ensures operational safety.
✅ High reliability:
Long service life, better reliability than traditional column mounted transformers;
Good safety performance: fully enclosed design, preventing electric shock and external damage;
Low noise operation: suitable for residential areas and other noise sensitive places;
Convenient maintenance: modular structure for quick maintenance;
Flexible configuration: Customized shell, switch, protection and other functions according to user needs.
Q: Who are we?
HENTG POWER is a professional designer, manufacturer and installer of power system solution around the World, was
founded in 2011, occupies 100,000 square meter. specializing in reliable, high-performance solutions for global power systems
Q:How can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment, We will provide QC & test reports. We accept FAT(Factory Acceptance Test). Factory can manufacture oil type and dry type distribution transformer, max 500KV 480MVA power transformer, GIS, switchgear, substation, based on ANSI/IEEE/DOE2016/CSA/IEC60076 standard. We will provide you with the guarantee service of over 2 years.
Q: Why choose us?
We have the professional and independent drawing team and technical team, It is expected that we can confirm all the contents on the drawings with you within 7 days. we have a professional technical team with 30+ senior engineers offer 24 hours online service and response within 30 min.
Q: What services can we provide ?
Accept OEM, business payment are negotiated.
