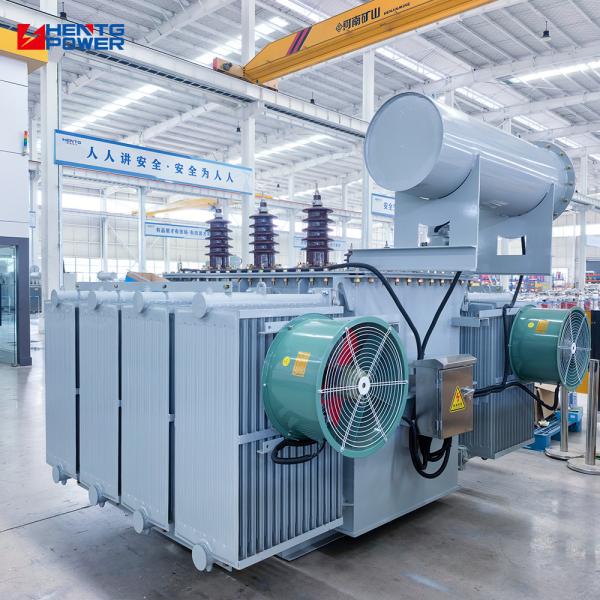

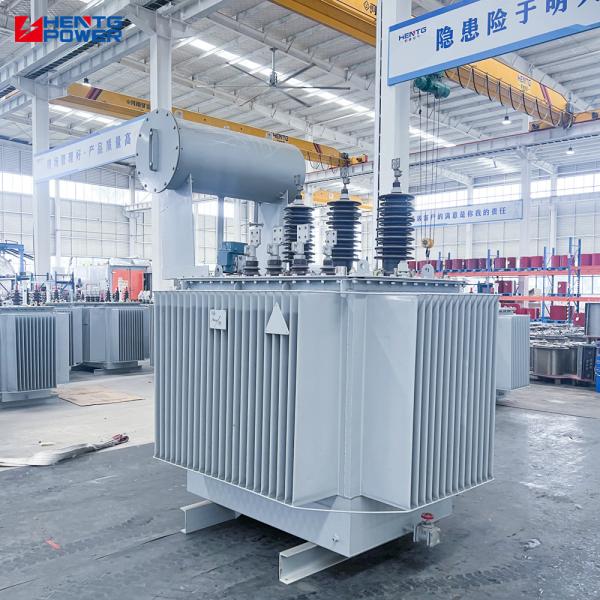

Electric Power Distribution Oil Immersed Mv High Voltage Isolation Transformer 1000kVA
Electric Power Distribution Oil Immersed Mv High Voltage Isolation Transformer 1000kVA
Electric Power Distribution Oil Immersed Mv High Voltage Isolation Transformer 1000kVA
Electric Power Distribution Oil Immersed Mv High Voltage Isolation Transformer 1000kVA
Electric Power Distribution Oil Immersed Mv High Voltage Isolation Transformer 1000kVA
Electric Power Distribution Oil Immersed Mv High Voltage Isolation Transformer 1000kVA
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
HENTG Power
Model Number :
ZGS Series
Certification :
CE
Price :
CN¥50,142.40/units
Type :
distribution transformer, Oil-filled Transformer
Material :
Aluminum, Copper
Frequency :
50Hz, 60Hz
Shape :
Rectangle
Winding Material :
Aluminum, Copper
application :
Power
Phase :
Three
Coil Structure :
Circular coil
Coil Number :
Dual-winding coil
Input Voltage :
6kV, 3kV, 10kV, 69kV, 110kV, 115kV, 132kV, 400kV, 220kV
Output Voltage :
415V, 380V, 220V, 110V, 440V, 480V, 11kV
Primary voltage :
35~38.5KV±5%
Cooling Method :
ONAN ONAF OFAF
Product name :
Three Phase Transformer
Application :
Power Distribution System
Standard :
IEC ANSI
Capacity :
2000KVA
Vector Group :
Yd11/YNd11
Feature :
High Frequncy Distribution Transformer Oil
MOQ :
2 sets
Description
35kV Custom Electric Power Distribution Oil Immersed Transformer MV High voltage Isolation Transformer 1000kVA

Technical Specifications
Rated Voltage: 35kV

Capacity Range: 50kVA to 3150kVA

Cooling Method: Oil-immersed

Frequency: 50Hz or 60Hz

Impedance Voltage: Customizable

Ambient Temperature: -25°C to +40°C


Advantage

Proven Quality: Manufactured in accordance with global standards, ensuring top-notch performance and safety.

Cost-effective: The long lifespan and low maintenance costs ensure a high return on investment.

Global Support Network: Backed by a worldwide network of technicians and service centers.


Technical Data For 35KV Three-Phase Oil Immersed Transformer
(630KVA~31500KVA)








Capacity
HV
HV
LV
Vector
No-load Loss (W)
On-load Loss (W)
No-load Current (%)
Short Circuit
(KVA)
(KV)
(Tapping)
(KV)
Group



Impedance (%)
630
800
1000
1250
1600
2000
2500
35
±5%
3.15
6.3
10.5
Yd11
830
980
1150
1410
1700
2180
2560
7870
9410
11540
13940
16670
18380
19670
1.1
1
1
0.9
0.8
0.7
0.6
6.5






















































3150
4000
5000
35~38.5
±5%
3.15
6.3
10.5

3040
3620
4320
23090
27360
31380
0.56
0.56
0.48
7


















6300



5250
35060
0.48

7.5
8000
10000
35~38.5
±2*2.5%
3.15
3.3
6.3
6.6
10.5
11
Ynd11
7200
8700
38480
45320
0.42
0.42










12500
16000
20000
25000
31500




10080
12160
14400
17020
20220
53870
65840
79520
94050
112860
0.4
0.4
0.4
0.32
0.32
8








































Step 1:
We will respond to your inquiry within 1 hour and recommend suitable transformer according to your needs. At the same
time, we will provide you with reasonable quotations and payment terms.We have a professional and independent drawing team and technical team, and we will confirm all the contents on the drawing with you within 7 days after payment. The drawing usually contains technical data, weight and parts list. If you have any questions, please click here to consult.
Step 2:
After designing the production drawing, the factory will prepare the stock, produce, and conduct quality inspection
before shipment. If you have special accessory requirements, we can provide you with accessories. Our raw materials are strictly screened. In the quality inspection stage, we will provide you with the dual guarantee of QC report and test report to escort your products.
Step 3:
We have a professional team to guide the installation, and also support on-site installation. We will provide
you with more than 2 years of warranty service. Welcome to join us and create a win-win situation. Click here to start our
business now.
If you have any questions, welcome to click here for discussion !!!

Professional 30+ senior engineers offer 24 hours online service and response within 30 min.
● 100000m² factory, 250 workers, 30+engineers .

● 4 production line, 10000+ sets annual production capacity.

● 100% OQC testing with 25 detection contents.

● 15 years powertransformer designing and production experience.

● Products comply with GB 20052-2024/ANSI/IEEE/DOE2016/CSA/IEC60076 standard.

●Cross-industry power transformer solution.

● Global on-site technical support.

✅ 1. Optimized for 35kV Medium Voltage Networks
Designed specifically for 35kV distribution systems, a common voltage level in industrial zones, rural power grids, and utility substations in many regions.Provides efficient and stable step-down transformation from sub-transmission to distribution voltage levels (e.g., 35kV to 10kV/0.4kV).Supports regional power grid expansion and rural electrification projects.
✅ 2. Stable and Balanced Three-Phase Power Supply
Delivers consistent voltage across all three phases, ensuring smooth operation of heavy-duty equipment and reducing voltage fluctuations. Ideal for industrial plants, commercial centers, and large-scale energy consumers requiring reliable three-phase power.
✅ 3. Efficient Oil-Immersed Cooling System
Uses mineral or natural ester insulating oil for effective heat dissipation and dielectric insulation.Maintains stable operating temperatures even under high load or continuous duty conditions.Enhances transformer lifespan and reduces thermal aging of insulation materials.
✅ 4. High Reliability and Robust Construction
Built to withstand electrical, mechanical, and thermal stress in demanding outdoor and indoor environments.Features hermetic sealing or conservator-type oil tanks to prevent moisture ingress and maintain oil quality.
Electric Power Distribution Oil Immersed Mv High Voltage Isolation Transformer 1000kVA

Q: Who are we ?
HENTG POWER is a professional designer, manufacturer and installer of power system solution around the World, was
founded in 2011, occupies 100,000 square meter. specializing in reliable, high-performance solutions for global power systems
Q:How can we guarantee quality ?
Always a pre-production sample before mass production; Always final Inspection before shipment, We
will provide QC & test reports. We accept FAT(Factory Acceptance Test). Factory can manufacture oil type and dry type distribution
transformer, max 500KV 480MVA power transformer, GIS, switchgear, substation, based on ANSI/IEEE/DOE2016/CSA/IEC60076 standard. We
will provide you with the guarantee service of over 2 years.
Q: Why choose us?
We have the professional and independent drawing
team and technical team, It is expected that we can confirm all the contents on the drawings with you within 7 days. we have a
professional technical team with 30+ senior engineers offer 24 hours online service and response within 30 min.
Q: What servicescan we provide ?
Accept OEM, business payment are negotiated.
