1000kva Oil Immersed Transformer Variable Voltage Power Manufacturers High Frequency HV Step Down Transformer
1000kva Oil Immersed Transformer Variable Voltage Power Manufacturers High Frequency HV Step Down Transformer
1000kva Oil Immersed Transformer Variable Voltage Power Manufacturers High Frequency HV Step Down Transformer
1000kva Oil Immersed Transformer Variable Voltage Power Manufacturers High Frequency HV Step Down Transformer
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
HENTG Power
Model Number :
ZGS series
Certification :
CE
MOQ :
2 sets
Price :
CN¥60,826.15-72,364.60/units
Type :
distribution transformer, Auto Transformer
Material :
Copper, 100% Copper Wire
Frequency :
50Hz, 60Hz
Shape :
Rectangle
Winding Material :
Copper
application :
Power
Phase :
Three
Coil Structure :
Circular coil
Coil Number :
Dual-winding coil
Input Voltage :
3kV, 6kV, 10kV, 15kV, 35kV, 69kV, 110kV, 115kV, 132kV, 220kV, 400kV
Output Voltage :
11kV, 110V, 220V, 380V, 440V, 480V
Product name :
Three Phase Transformer
Application :
Industrial
Usage :
Power Electronic
Cooling Method :
ONAN ONAF OFAF
Color :
White
Warranty :
2 Years
Protection :
Overload
Description
1000kva Oil Immersed Transformer Variable Voltage Power Manufacturers High Frequency HV Step Down Transformer

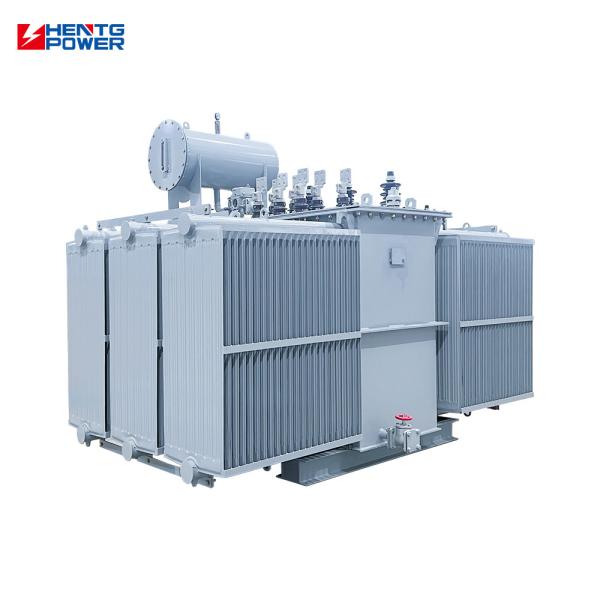

HENTG's ZGS 35kV transformer features a fully-sealed metal enclosure with outstanding waterproof, dustproof, and corrosion-resistant properties. It is engineered for long-term outdoor performance in harsh conditions. Equipped with multiple protection features including pressure relief valves, temperature controls, and oil level monitoring, it ensures operational safety and system reliability.

Advantage
Lower Carbon Footprint: By reducing energy losses, the transformer contributes to a lower environmental impact.
Cost-effective: The long lifespan and low maintenance costs ensure a high return on investment.
Global Support Network: Backed by a worldwide network of technicians and service centers.
Technical Data For 35KV Three-Phase Oil Immersed Transformer
(630KVA~31500KVA)








Capacity
HV
HV
LV
Vector
No-load Loss (W)
On-load Loss (W)
No-load Current (%)
Short Circuit
(KVA)
(KV)
(Tapping)
(KV)
Group



Impedance (%)
630
800
1000
1250
1600
2000
2500
35
±5%
3.15
6.3
10.5
Yd11
830
980
1150
1410
1700
2180
2560
7870
9410
11540
13940
16670
18380
19670
1.1
1
1
0.9
0.8
0.7
0.6
6.5






















































3150
4000
5000
35~38.5
±5%
3.15
6.3
10.5

3040
3620
4320
23090
27360
31380
0.56
0.56
0.48
7


















6300



5250
35060
0.48

7.5
8000
10000
35~38.5
±2*2.5%
3.15
3.3
6.3
6.6
10.5
11
Ynd11
7200
8700
38480
45320
0.42
0.42










12500
16000
20000
25000
31500




10080
12160
14400
17020
20220
53870
65840
79520
94050
112860
0.4
0.4
0.4
0.32
0.32
8





































Step 1:
We will respond to your inquiry within 1 hour and recommend suitable transformer according to your needs. At the same
time, we will provide you with reasonable quotations and payment terms.We have a professional and independent drawing team and technical team, and we will confirm all the contents on the drawing with you within 7 days after payment. The drawing usually contains technical data, weight and parts list. If you have any questions, please click here to consult.
Step 2:
After designing the production drawing, the factory will prepare the stock, produce, and conduct quality inspection
before shipment. If you have special accessory requirements, we can provide you with accessories. Our raw materials are strictly screened. In the quality inspection stage, we will provide you with the dual guarantee of QC report and test report to escort your products.
Step 3:
We have a professional team to guide the installation, and also support on-site installation. We will provide
you with more than 2 years of warranty service. Welcome to join us and create a win-win situation. Click here to start our
business now.
If you have any questions, welcome to click here for discussion !!!
Professional 30+ senior engineers offer 24 hours online service and response within 30 min.

● 100000m² factory, 250 workers, 30+engineers .

● 4 production line, 10000+ sets annual production capacity.

● 100% OQC testing with 25 detection contents.

● 15 years powertransformer designing and production experience.

● Products comply with GB 20052-2024/ANSI/IEEE/DOE2016/CSA/IEC60076 standard.

●Cross-industry power transformer solution.

● Global on-site technical support.
Q: Who are we ?
HENTG POWER is a professional designer, manufacturer and installer of power system solution around the World, was
founded in 2011, occupies 100,000 square meter. specializing in reliable, high-performance solutions for global power systems
Q:How can we guarantee quality ?
Always a pre-production sample before mass production; Always final Inspection before shipment, We
will provide QC & test reports. We accept FAT(Factory Acceptance Test). Factory can manufacture oil type and dry type distribution transformer, max 500KV 480MVA power transformer, GIS, switchgear, substation, based on ANSI/IEEE/DOE2016/CSA/IEC60076 standard. We
will provide you with the guarantee service of over 2 years.
Q: Why choose us?
We have the professional and independent drawing
team and technical team, It is expected that we can confirm all the contents on the drawings with you within 7 days. we have a
professional technical team with 30+ senior engineers offer 24 hours online service and response within 30 min.
Q: What servicescan we provide ?
Accept OEM, business payment are negotiated.
