Specifications
Brand Name :
HENTG POWER
Model Number :
100KVA-0.4KV/11KV
Certification :
CE
Place of Origin :
China
MOQ :
2
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
300-500MVA/Year
Delivery Time :
25
Packaging Details :
Full Enclosed
Product Name :
Dry Type Transformer
Rated Capacity :
100KV
Frequency :
50/60HZ
Cooling Method :
ANAF Or Customized
Vector Group :
Dyn11（Customized）
Winding Material :
Cooper/Aluminum
Application :
Commercial Electrical Systems
Insulation Class :
Class A
Customized :
Accept
Warranty :
1Year
Package :
Dust-Proof Sealed Packing
Description
Product Overview

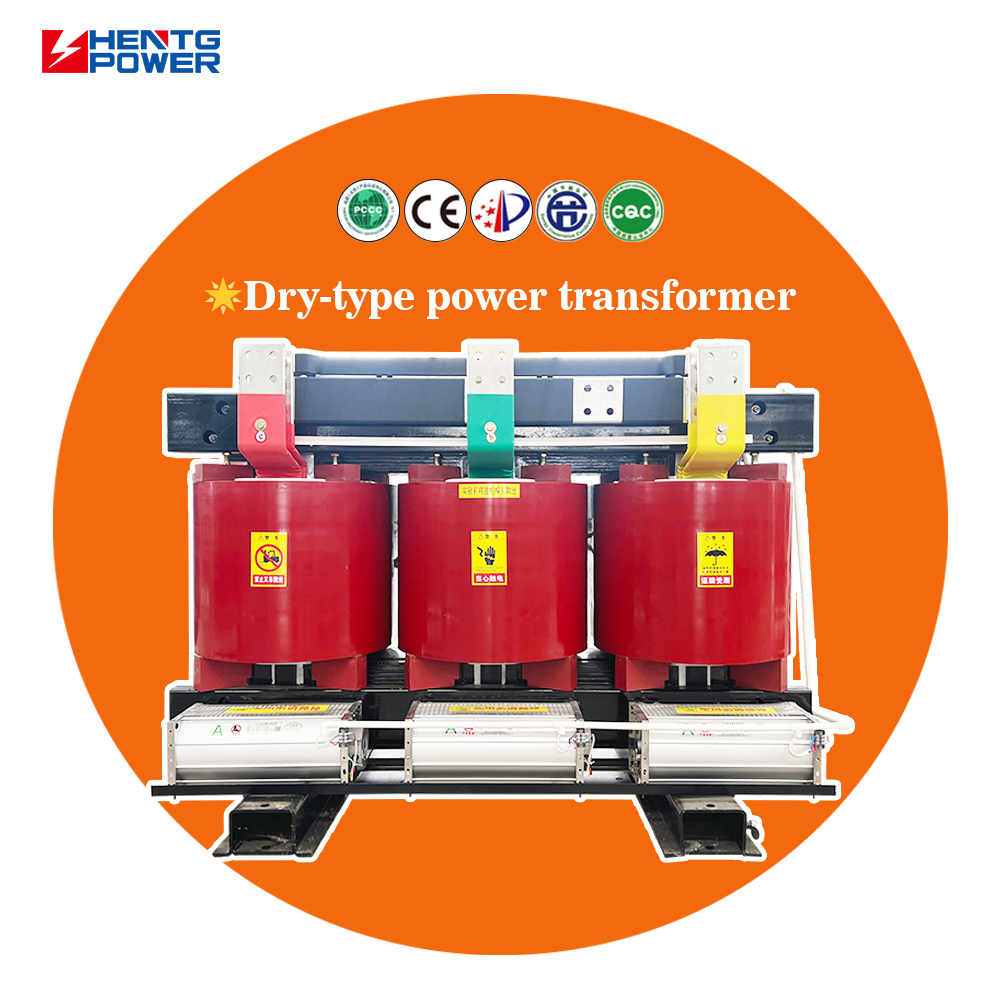

Durable safe Reliable Aluminum & Cooper 100kVA Dry Type Distribution Transformer 0.4KV 11KV IEC60076 for Commercial Electrical Systems Manufacturer

This series of dry type transformers is designed with advanced vacuum pressure impregnation (VPI) and epoxy resin encapsulation technology, offering high safety, low loss, and strong short-circuit resistance.

It is widely used in commercial buildings, industrial power distribution, data centers, and high-temperature regions.

Compliant with IEC60076 international standards, the transformer supports customized copper or aluminum winding options, making it suitable for various voltage levels and global electrical infrastructure projects.

Key Features
  • High safety epoxy resin encapsulation, oil-free and fire-resistant design
  • Low loss silicon steel core for high efficiency operation
  • Strong short-circuit withstand capability
  • Optimized thermal design for high-temperature regions
  • Low maintenance and long service life
  • Customizable design for voltage, capacity, and materials
Technical Specification
Item Specification
Rated Capacity 50kVA – 2500kVA (customizable)
HV Voltage 6kV / 10kV / 11kV / 13.8kV
LV Voltage 400V / 415V / 690V
Frequency 50Hz / 60Hz
Phase Three Phase
Cooling Method AN / AF
Insulation Class F / H
Temperature Rise ≤100K
Vector Group Dyn11 / Yyn0
Winding Material Copper / Aluminum
Protection Class IP20 / IP23 / IP54
Standard IEC60076
Noise Level ≤55–65dB
Ambient Temp -25℃ ~ +50℃ (optional high-temp design)

Durable safe Reliable Aluminum & Cooper 100kVA Dry Type Distribution Transformer 0.4KV 11KV IEC60076 for Commercial Electrical Systems Manufacturer

Durable safe Reliable Aluminum & Cooper 100kVA Dry Type Distribution Transformer 0.4KV 11KV IEC60076 for Commercial Electrical Systems Manufacturer

Durable safe Reliable Aluminum & Cooper 100kVA Dry Type Distribution Transformer 0.4KV 11KV IEC60076 for Commercial Electrical Systems Manufacturer

Durable safe Reliable Aluminum & Cooper 100kVA Dry Type Distribution Transformer 0.4KV 11KV IEC60076 for Commercial Electrical Systems Manufacturer

Durable safe Reliable Aluminum & Cooper 100kVA Dry Type Distribution Transformer 0.4KV 11KV IEC60076 for Commercial Electrical Systems Manufacturer

Durable safe Reliable Aluminum & Cooper 100kVA Dry Type Distribution Transformer 0.4KV 11KV IEC60076 for Commercial Electrical Systems Manufacturer

High-Temperature Market Solutions
Market Challenges:
  • Overheating in hot climate regions
  • Fire risk in oil-filled transformers
  • High maintenance cost
  • Reduced lifespan under heavy load
Our Solution:
  • F/H class high-temperature insulation system
  • Optimized cooling duct design for better heat dissipation
  • Oil-free structure eliminates fire and leakage risks
  • Optional forced air cooling system (AF)
  • Reinforced winding structure for extreme conditions
