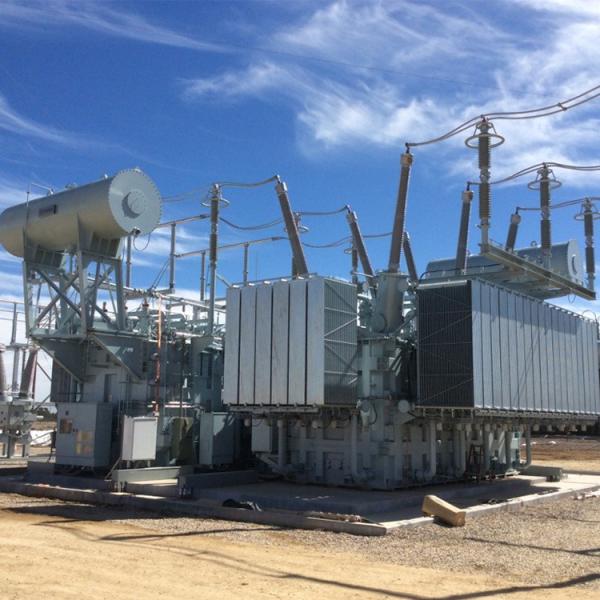

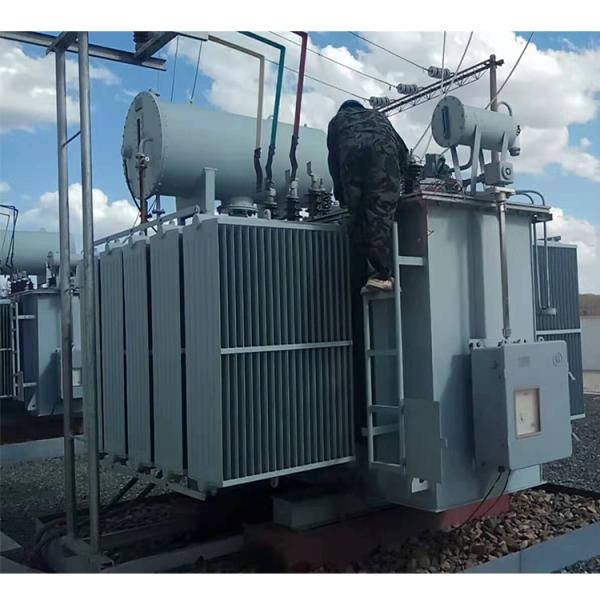

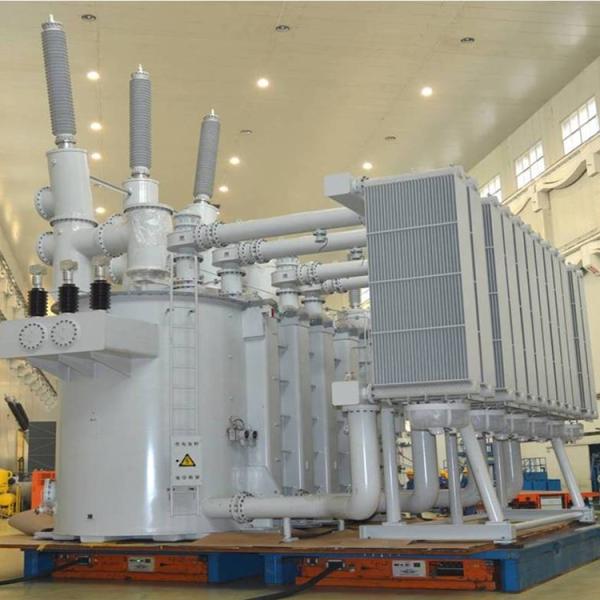

High Efficiency 66kV Power Transformer with 100MVA Rated Power and IP23 Protection Level for Reliable Performance
High Efficiency 66kV Power Transformer with 100MVA Rated Power and IP23 Protection Level for Reliable Performance
High Efficiency 66kV Power Transformer with 100MVA Rated Power and IP23 Protection Level for Reliable Performance
High Efficiency 66kV Power Transformer with 100MVA Rated Power and IP23 Protection Level for Reliable Performance
High Efficiency 66kV Power Transformer with 100MVA Rated Power and IP23 Protection Level for Reliable Performance
High Efficiency 66kV Power Transformer with 100MVA Rated Power and IP23 Protection Level for Reliable Performance
Specifications
Brand Name :
HENTG Power
Certification :
CE
Place of Origin :
China
Overload Capacity :
1.2 times rated power for 2 hours
Installation Method :
Outdoor
Rated Power :
100MVA
Protection Level :
IP23
Rated Voltage :
66KV
Phase :
Three
Frequency :
50/60Hz
Efficiency :
≥99%
Impedance :
6%
Noise Level :
≤65dB
Short Circuit Withstand Time :
2 seconds
Insulation Level :
Class F
Operating Temperature :
40℃
Cooling Method :
Oil-immersed
MOQ :
1
Description

1. High Efficiency and Energy Saving, Stable Performance

Utilizing high-quality silicon steel sheets and advanced winding technology, this product offers low no-load and load losses, ensuring high operating efficiency.

Compliant with international standards such as IEC, ANSI, and GB, it is suitable for long-term, high-load operation.

Equipped with intelligent systems such as temperature control and oil level monitoring to ensure long-term, stable operation.


2. Customizable to suit various application scenarios

Capacity (e.g., 10MVA, 20MVA), cooling methods (ONAN, ONAF), and wiring configurations can be customized according to project requirements.

Widely applicable in power transmission and distribution, wind power, solar power, factories, and mines.

Supports special requirements such as outdoor and indoor installation, earthquake resistance, waterproofing, and corrosion resistance.


3. Reliable Quality, Global Service

Utilizes fully automatic vacuum drying and oil filling processes to ensure internal insulation performance.

Identified by ISO9001, CE, and CCC, this product supports third-party testing.

Exports to Southeast Asia, the Middle East, Africa, South America, and other countries, with one-stop after-sales support.

High Efficiency 66kV Power Transformer with 100MVA Rated Power and IP23 Protection Level for Reliable Performance

Rated Power(KVA) High Voltage(HV) Low Voltage(KV) Connection Symbol Short Circuit lmpendence Loss(W) No load Current(%)
No-load Loss(W) On-load Loss(W)
6300

63

66

69

6.3

6.6

10.5

11

 YNd11 9 8250 34000 0.63
8000 9830 40400 0.63
10000 11600 47600 0.75
12500 13600 56500 0.53
16000 16300 69500 0.49
20000 19200 84200 0.49
25000 22600 99500 0.42
31500 26800 120000 0.42
40000 31900 140300 0.39
50000 38600 174300 0.39
63000 44400 210000 0.39

widely used in power plants, substations, large industrial & mining enterprises, and etc,. Developed by adopting advanced domestic & international technologies. Optimization applied to core, winding, active part, leads, tank, etc.


Features:

üLow partial discharge, low loss, low noise
üLightweight, high reliability
üStable, economical, environmentally friendly
