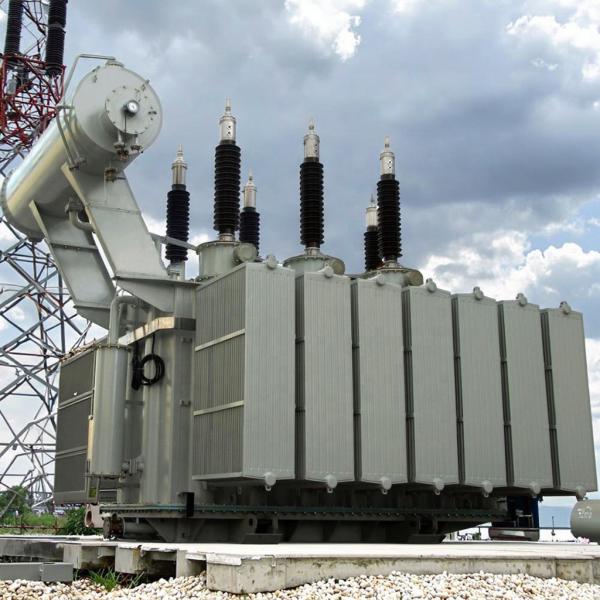

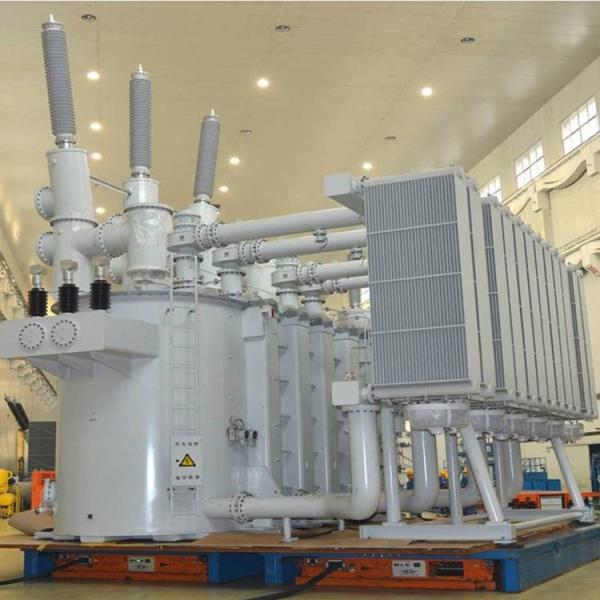

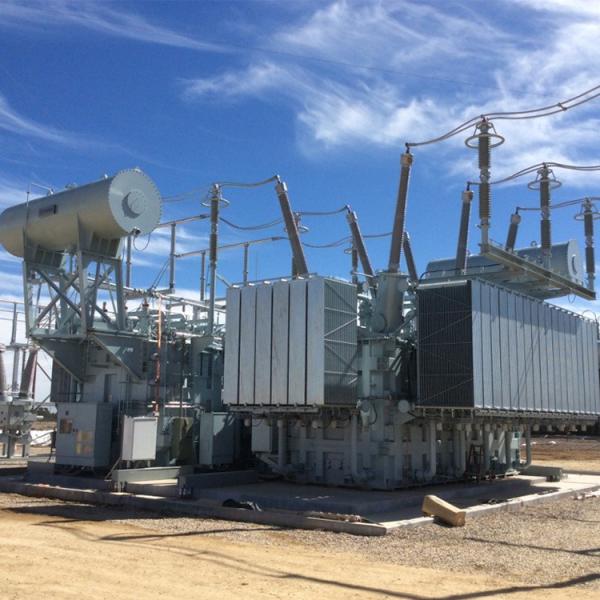

110kV High Voltage Transformer with IP23 Protection and IEC 60076 Compliance for Efficient Power Transmission
110kV High Voltage Transformer with IP23 Protection and IEC 60076 Compliance for Efficient Power Transmission
110kV High Voltage Transformer with IP23 Protection and IEC 60076 Compliance for Efficient Power Transmission
110kV High Voltage Transformer with IP23 Protection and IEC 60076 Compliance for Efficient Power Transmission
110kV High Voltage Transformer with IP23 Protection and IEC 60076 Compliance for Efficient Power Transmission
110kV High Voltage Transformer with IP23 Protection and IEC 60076 Compliance for Efficient Power Transmission
Specifications
Brand Name :
HENTG Power
Certification :
CE
Place of Origin :
China
MOQ :
1
Warranty :
3 Year
Package :
Wooden Case
Cooling Method :
Oil Immersed
Rated Capacity :
1000 kva
Vector Group :
Dyn11 or Customized
Frequency :
50Hz/60Hz
Protection Level :
IP23
Application :
power transformer
Rated Voltage :
110kV
Temperature Rise :
≤ 65°C
Insulation Class :
Class A/B/F/H
Type :
Power Transformer
Winding :
Cu/copper
Reference Standards :
IEC 60076
Description

1. High voltage rating, ensuring transmission efficiency
Suitable for regional power grids, large-scale factories, or wind and photovoltaic booster stations.
Improve long-distance transmission efficiency and reduce line losses.
Features strong insulation performance and strong resistance to high-voltage shocks.


2. Multiple cooling structures and wiring methods for flexible adaptation
Supports various cooling methods, including ONAN, ONAF, and OFWF.
A variety of wiring group options, including YNd11 and YNyn0, are available to adapt to different systems.
Optional intelligent monitoring system enables remote status monitoring.


3. International certifications and reliable craftsmanship, ensuring export quality
Complies with IEC, ANSI, GB, and other standards, and supports third-party testing (such as SGS and KEMA).
Using high-quality materials and vacuum drying technology, we ensure the quality of the insulating oil and windings.
Exports to numerous countries, including the Middle East, Africa, Southeast Asia, and South America.

110kV High Voltage Transformer with IP23 Protection and IEC 60076 Compliance for Efficient Power Transmission

Rated Power(KVA) High Voltage(HV) Low Voltage(KV) Connection Symbol Short Circuit lmpendence Loss(W) No load Current(%)
No-load Loss(W) On-load Loss(W)
6300

110

121

6.3

6.6

10.5

11

 YNd11 10.5 10000 36000 0.8
8000 12000 45000 0.8
10000 14200 53000 0.74
12500 16800 63000 0.74
16000 20200 77000 0.69
20000 24000 93000 0.69
25000 28400 110000 0.64
31500 33800 133000 0.64
40000 40400 156000 0.58
50000 47800 194000 0.58
63000 56800 234000 0.52

widely used in power plants, substations, large industrial & mining enterprises, and etc,. Developed by adopting advanced domestic & international technologies. Optimization applied to core, winding, active part, leads, tank, etc.


Features:

üLow partial discharge, low loss, low noise
üLightweight, high reliability
üStable, economical, environmentally friendly
