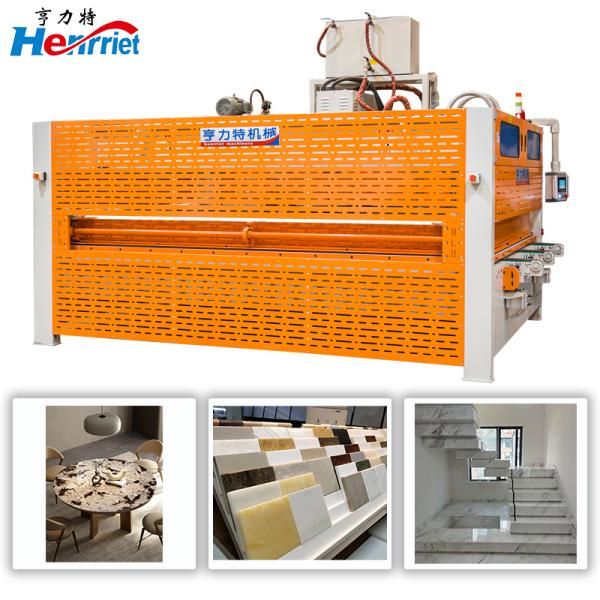

1 Layer Hot Press Machine 30T Controllable Metal Sheet Press Machine
1 Layer Hot Press Machine 30T Controllable Metal Sheet Press Machine
1 Layer Hot Press Machine 30T Controllable Metal Sheet Press Machine
1 Layer Hot Press Machine 30T Controllable Metal Sheet Press Machine
1 Layer Hot Press Machine 30T Controllable Metal Sheet Press Machine
1 Layer Hot Press Machine 30T Controllable Metal Sheet Press Machine
1 Layer Hot Press Machine 30T Controllable Metal Sheet Press Machine
1 Layer Hot Press Machine 30T Controllable Metal Sheet Press Machine
1 Layer Hot Press Machine 30T Controllable Metal Sheet Press Machine
1 Layer Hot Press Machine 30T Controllable Metal Sheet Press Machine
1 Layer Hot Press Machine 30T Controllable Metal Sheet Press Machine
1 Layer Hot Press Machine 30T Controllable Metal Sheet Press Machine
Specifications
Brand Name :
Henrriet
Model Number :
HRY-30T/1Layer
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
Online/offline communication
Payment Terms :
T/T
Delivery Time :
20-35Work days
Packaging Details :
Film with Foam
Name :
Hot Press Machine
Max pressuer :
30T（Controllable）
Work platen size :
3600mm*1800mm*50mm
Systm pressure :
20mpa
Max.platen opening :
300mm
Maximum temperature :
180℃(Ambient Temperature-180℃ Controllable)
Working level :
1 Layer
Oil cylinder specification :
80mm*60mm * 6pcs
Hydraulic pump power :
4kw
Hot oil pump power :
3kw
Heating pipe power :
90kw
Overall dimensions :
4410*2250*2830mm
Weight (about) :
8200kg
Description

Artificial Quartz Stone Slab Acrylic Sheet Metal Sheet Hot Press Transfer Printing Machine

Product Description:

This advanced thermal transfer press is designed to permanently emboss decorative surfaces onto rigid composite substrates—such as quartz, granite, metal, and acrylic panels. By combining controlled heat, pressure, and precision-engineered mold technology, it imparts detailed wood grains, natural stone patterns, leather textures, and custom geometric designs directly into the material. The result is a high-end decorative finish with striking visual and tactile qualities.Using high-fidelity molds and stable pressing control, the equipment reproduces complex patterns—including marble, travertine, and woodgrain effects—with depth, clarity, and seamless continuity. The finish offers a premium aesthetic that exceeds the limitations of conventional printing or coating methods.During the pressing process, the surface layer is densified, which enhances key performance characteristics such as abrasion resistance, scratch resistance, stain protection, and moisture impermeability. These attributes make it particularly well-suited for high-use settings including kitchen countertops, bathroom installations, and commercial flooring.

Exceptional Productivity
Through refined press-cycle management and automated material feeding, the system achieves substantially higher output than conventional machinery, readily meeting the demands of large-order production. Transfer precision remains consistent, utilizing multi-zone temperature control and even pressure distribution to ensure pattern clarity without color shifts or bubbling.

Comprehensive Safety & Protection
The press includes two-hand initiation controls, overpressure emergency stops, and real-time diagnostic monitoring. Critical electrical and hydraulic components are sourced from industry-recognized suppliers, reducing operational risks and supporting compliance with international safety standards.
In addition to physical guarding and emergency braking, the system employs sensors that monitor key parameters in real time. If deviations occur—such as abnormal pressure or temperature—the system can auto-adjust or halt operations, helping to prevent damage and enhance workplace safety.

Wide Adaptability
Designed for artificial stone, quartz, marble, and composite aluminum panels, the press also accommodates rock panels and other rigid surfaces. It serves a range of applications—from residential countertops and architectural cladding to custom furniture and interior finishing.

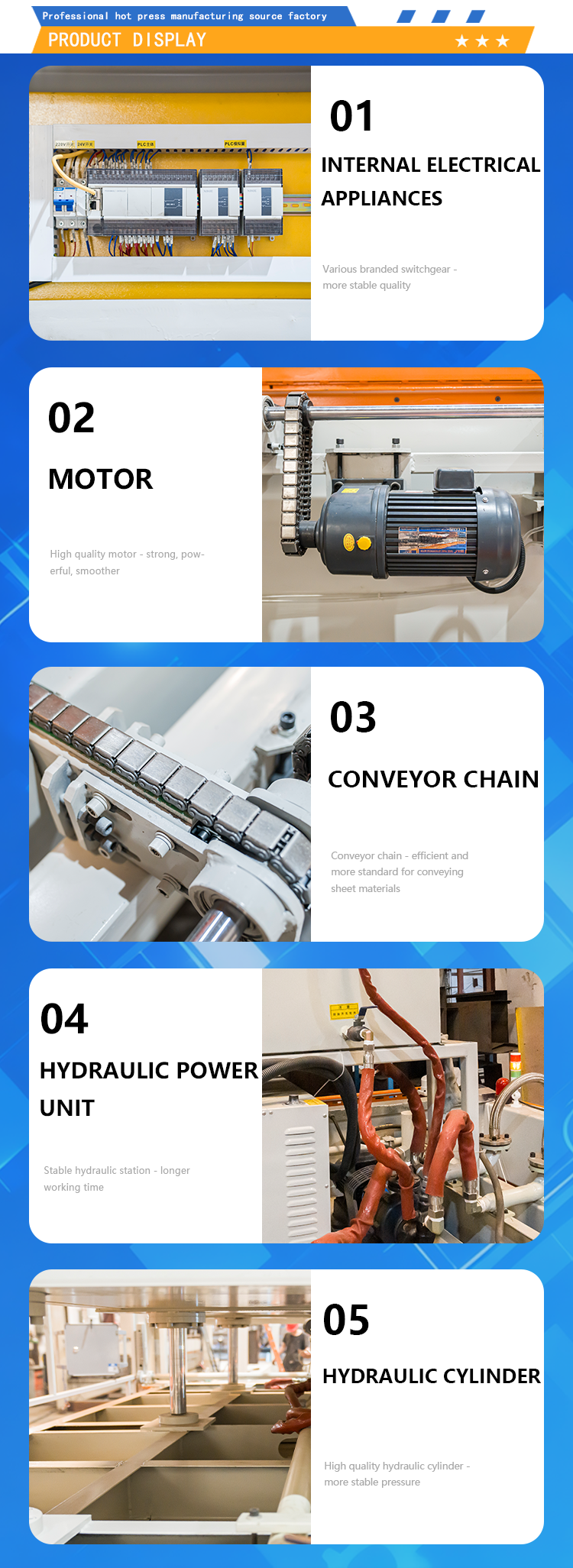

Streamlined Maintenance
Core components—such as servo drives, vacuum pumps, and sensors—are arranged in modular units with standardized interfaces. This approach localizes faults, simplifies part replacement, and reduces system downtime.

Machine parameters

Max pressuer 30T(Controllable)
Work platen size 3600mm*1800mm*50mm
Systm pressure 20mpa
Max.platen opening 300mm
Maximum temperature 180℃(Ambient Temperature-180℃ Controllable)
Oil cylinder specification 80mm*60mm * 6pcs
Hydraulic pump power 4kw
Hot oil pump power 3kw
Heating pipe power 90kw
Overall dimensions 4410*2250*2830mm
Weight (about) 8200kg

Service Support

Warranty: 1 year

Packaging: Film with foam

24-hour customer service hotline, respond to repair needs within 48 hours.

Free video training for operators and provision of process guidance manuals.

Lifetime technical support and software upgrade services.
