Specifications
Number of layers of hot pressed plate :
3 layers
Place of Origin :
China
Maximum pressure :
50 tons
Certification :
CE、ISO 9001
Maximum processing size :
3100*1220*60mm
Heating method :
Electric heating, heat transfer oil
Price :
Online/offline communication
Working stroke of oil cylinder :
360mm
Weight (approx) :
Approximately 9500kg
Delivery Time :
20-35Work days
Quantity and specifications of hot pressed plates :
4 pieces ~3200×1300×42mm wrapped in high-temperature resistant film
Payment Terms :
T/T
Number and diameter of oil cylinders :
10*φ100mm
Overall dimensions :
4800*1700*2350mm
Packaging Details :
Film with Foam
Distance between hot pressed plates :
120mm
MOQ :
1
Pressure mode :
Press from bottom to top
Brand Name :
Henrriet
Maximum operating temperature :
120℃
Description
3‑Layer Top‑Drive Hydraulic Hot Press for Fibre‑Based Sandwich Composite Hot Forming
This 3-layer top-press hot press is a multi-opening hydraulic laminating unit developed for the woodworking sector. With a top-drive structural configuration and an electric thermal-oil circulating heating system, it provides balanced pressure via hydraulic mechanisms to support accurate veneer bonding and composite panel forming. Constructed on a reinforced welded frame for reliable structural performance, the machine is suited to sustained production in furniture and building-material panel manufacturing environments.
Key Features
  • Superior Production Capacity: 3-opening station allows multiple panels to be pressed simultaneously with even pressure distribution and consistent heating
  • Security Guarantee: Centralized electric control system with pressure gauges, emergency-stop components, and protective safety mesh
  • Application Areas: Furniture panel processing, wood-based panel deep processing, and building-material composite panel production
  • Maintenance and Upkeep: Regular hydraulic system checks, platen cleaning, and electrical component verification
Technical Specifications
Specification Details
Pressure Mode Press from bottom to top
Maximum Pressure 50 tons
Number of Layers 3 layers
Distance Between Hot Pressed Plates 120mm
Maximum Processing Size 3100×1220×60mm
Hot Pressed Plates 4 pieces ~3200×1300×42mm wrapped in high-temperature resistant film
Working Stroke of Oil Cylinder 360mm
Number and Diameter of Oil Cylinders 10×φ100mm
Heating Method Electric heating, heat transfer oil
Heating Power 54KW
Maximum Operating Temperature 120℃

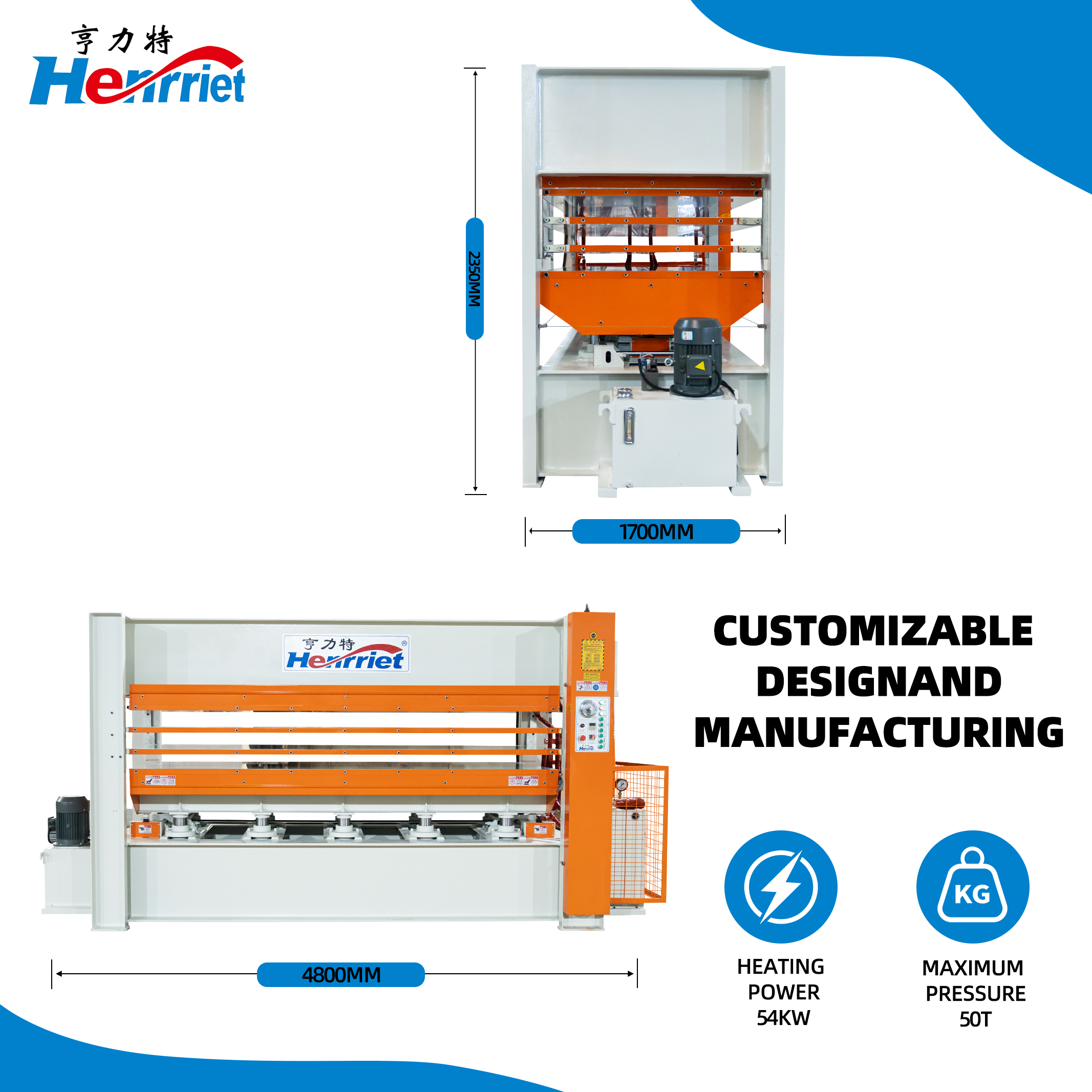

Overall Dimensions 4800×1700×2350mm
Weight (Approx.) Approximately 9500kg
Company Advantages
Direct Manufacturing & Competitive Pricing
We own two independent R&D and manufacturing facilities with no middlemen or markups. You buy directly from the source with full control over production speed and costs.
Custom Engineering Solutions
Our 30-person R&D team designs machines around your actual production needs, floor space, and budget. We build exactly what you need for your specific applications.
Global Compliance & Certification
Every machine meets EU CE safety standards and ISO 9001 quality requirements, ensuring full compliance with international electrical, mechanical, and safety regulations.
Proven Global Experience
We've shipped to over 50 countries and completed 1,000+ custom designs. Our equipment is engineered for long-term, heavy-duty use in real factory environments worldwide.
Service Support
  • Warranty: 1 year
  • Packaging: Film with foam protection
  • 24-hour customer service hotline with 48-hour response to repair needs
  • Free video training for operators and process guidance manuals
  • Lifetime technical support and software upgrade services
Product Introduction
3-Layer Top-Drive Hydraulic Hot Press Machine with 50 Tons Maximum Pressure and Electric Heating Heat Transfer Oil
Corporate Overview
3-Layer Top-Drive Hydraulic Hot Press Machine with 50 Tons Maximum Pressure and Electric Heating Heat Transfer Oil 3-Layer Top-Drive Hydraulic Hot Press Machine with 50 Tons Maximum Pressure and Electric Heating Heat Transfer Oil 3-Layer Top-Drive Hydraulic Hot Press Machine with 50 Tons Maximum Pressure and Electric Heating Heat Transfer Oil 3-Layer Top-Drive Hydraulic Hot Press Machine with 50 Tons Maximum Pressure and Electric Heating Heat Transfer Oil 3-Layer Top-Drive Hydraulic Hot Press Machine with 50 Tons Maximum Pressure and Electric Heating Heat Transfer Oil 3-Layer Top-Drive Hydraulic Hot Press Machine with 50 Tons Maximum Pressure and Electric Heating Heat Transfer Oil 3-Layer Top-Drive Hydraulic Hot Press Machine with 50 Tons Maximum Pressure and Electric Heating Heat Transfer Oil 3-Layer Top-Drive Hydraulic Hot Press Machine with 50 Tons Maximum Pressure and Electric Heating Heat Transfer Oil
Frequently Asked Questions
Who are we?
We are based in Guangdong, China, established in 2016. Our market distribution includes Domestic Market (55.00%), Africa (20.00%), South Asia (9.00%), Central America (6.00%), Oceania (5.00%), South America (3.00%), and Eastern Asia (2.00%). We employ over 110 professionals.
Why should you buy from us instead of other suppliers?
With over 20 years in the wooden machinery industry, we operate two factories covering more than 20,000 square meters. Our team includes over 130 professional employees, including a senior design team of 30+ engineers. We provide custom machine design drawings tailored to your needs and ensure perfect production and manufacturing. Comprehensive installation, commissioning, and operator training ensure immediate production upon machine arrival.
How do we guarantee quality?
Our quality assurance process includes: confirming machine functions through customer communication; engineer-designed machine drawings; on-site guidance for cutting, welding, and assembly; full process testing by quality inspectors; and final inspection by engineers and project leaders before shipment.
What products can you buy from us?
Our product range includes hydraulic cold presses, single-layer and multi-layer hot presses, glue spreading machines, automatic feeders, turnover machines, automatic palletizers, and non-standard automated production lines of various specifications.
What services do we provide?
We accept delivery terms: FOB, CFR, CIF, EXW, Express Delivery. Payment options include USD, EUR, CNY currencies via T/T, L/C, PayPal, Western Union, Cash. Our team communicates in English, Chinese, Spanish, Japanese, Russian, and Hindi.
