Specifications
Brand Name :
Henrriet
Model Number :
HLY-25T*4
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
Online/offline communication
Payment Terms :
T/T
Delivery Time :
20-35Work days
Packaging Details :
Film with Foam
Name :
Wood Door Press Machine
Max pressuer :
25T*4
Work platen size :
1350*1280mm
Oil cylinder specification :
125mm * 4pcs
Motor power :
5.5kw
Workd effctively :
1200mm /Customizable
Overall dimensions :
6000*1280*3500mm
Description

Customized Design Cold Press Machine For Wooden Door Plywood Stainless Honeycomb Panel Sandwich Panel Insulation Board

Product Description:

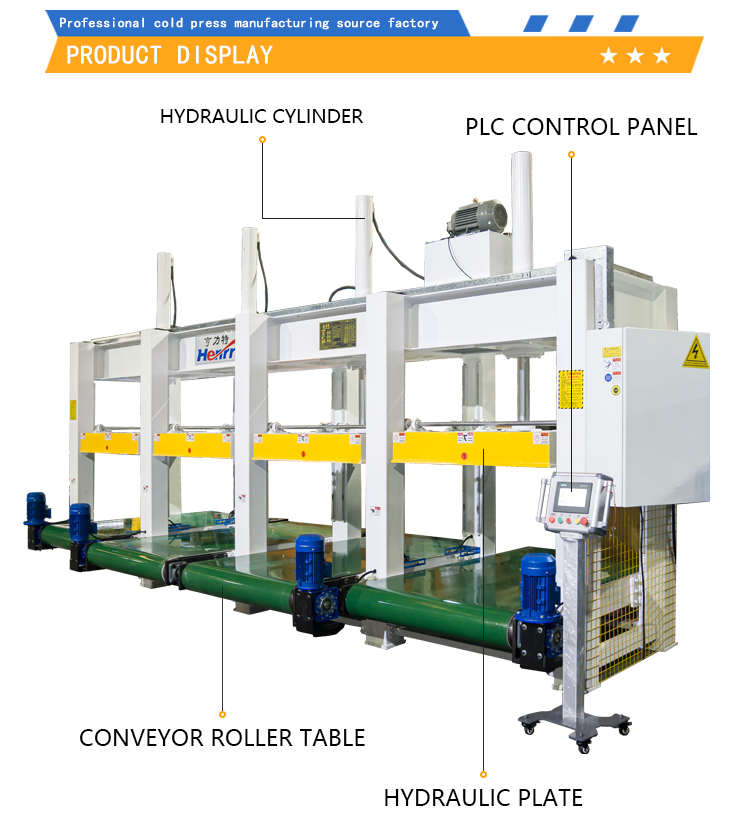

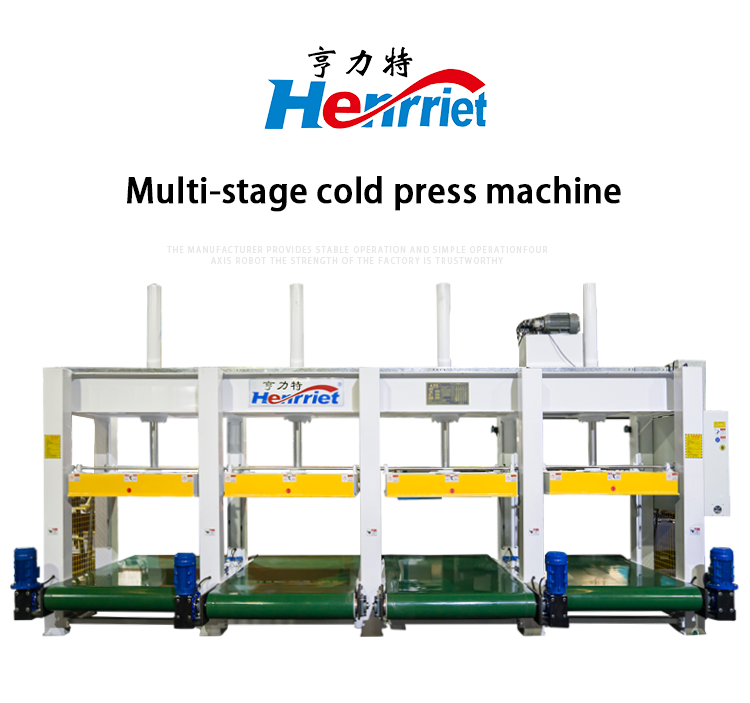

The segmented cold press employs advanced mechanical pressure-forming technology, operating at ambient temperature to ensure precise handling of large-scale composite panels. Its hydraulic system integrates multiple cylinders strategically positioned along the full span of the press plate, working in tandem with a closed-loop pressure feedback mechanism to maintain exceptional accuracy. This configuration guarantees uniform force dissemination across the entire panel surface, effectively addressing common defects such as center bulging or edge collapse .Specifically engineered for the pressing and shaping of wooden door panels, the press’s segmented architecture also supports the concurrent processing of disparate panel types. This capability enhances both adaptability and throughput in composite material fabrication, making it a versatile solution for diverse production requirements.

Exceptional Production Capacity
The press features an autonomous multi-cylinder control system that delivers differentiated pressure tailored to the distinct structural zones of wooden doors (e.g., core, frame, and surface). This targeted approach markedly improves lamination consistency, minimizing flatness deviations in finished products and elevating overall pressing quality.
Incorporating an optimized process flow—from segmented feeding and sequential pressing to cyclic discharging—the machine facilitates the simultaneous pressing of multiple door units. This efficient workflow significantly boosts daily output compared to conventional cold pressing techniques, rendering it exceptionally suited to high-volume, continuous production environments.

Comprehensive Safety Assurance

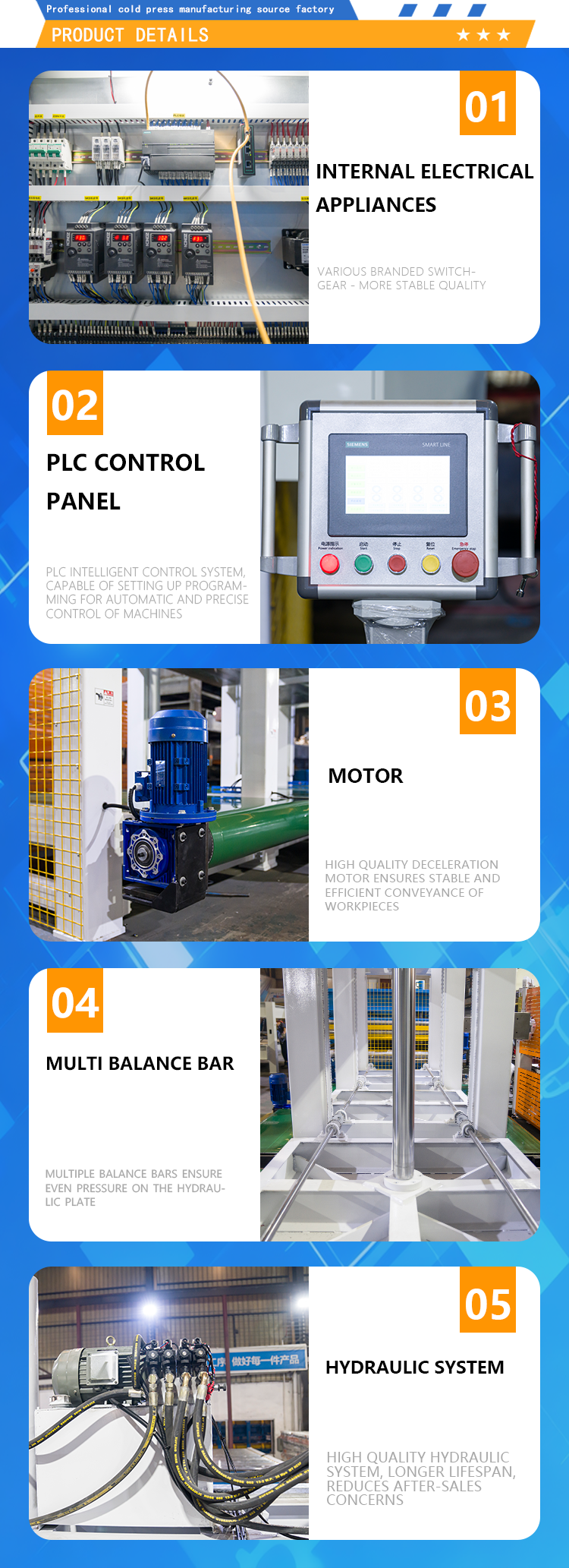

Each pressing module is outfitted with high-precision pressure sensors that deliver continuous feedback, enabling instant detection and correction of anomalies like overpressure, misalignment, or leakage. This proactive monitoring system substantially reduces the risk of pressing-related incidents.
The machine’s frame is constructed using a box-type steel plate welding technique with multi-rib reinforcement, substantially enhancing load-bearing rigidity. This durable design prevents frame distortion and performance deterioration, even under prolonged high-load operations.

Wide Applicability
The press is compatible with a wide array of standard door constructions, including solid wood, wood-composite, steel-wood, and fireproof doors. It also accommodates custom non-standard products such as embossed doors, offering manufacturers flexibility in design and application.
Beyond door production, the machine is capable of pressing furniture countertops, decorative wall panels, and spliced large boards. This functional diversity allows businesses to broaden their service offerings and enter new market segments.

Easy Maintenance
The press’s modular construction, coupled with easily accessible components, streamlines routine maintenance and part replacement. This design philosophy reduces downtime and contributes to the equipment’s long-term reliability and cost-effectiveness.

Machine parameters

Max pressuer 25T*4
Work platen size 1350*1280mm
Oil cylinder specification 125mm * 4pcs
Motor power 5.5kw
Workd effctively 1200mm / customizable
Overall dimensions 6000*1280*3500mm

Service Support

Warranty: 1 year

Packaging: Film with foam

24-hour customer service hotline, respond to repair needs within 48 hours.

Free video training for operators and provision of process guidance manuals.

Lifetime technical support and software upgrade services.
