Specifications
Maximum temperature :
Adjustable (Ambient temperature‑100℃)
Maximum pressure :
Max main pressing force: 80 tons Max side pressing force: 43 tons
Feeding conveyor belt medium :
High‑temperature resistant Teflon
Certification :
CE、ISO 9001
Opening spacing :
0-300mm
Heating system power :
72KW per block ×2 sets =144KW
L-shaped front conveyor platform :
6500mm*1500mm*1000mm(With rotation)
Delivery Time :
20-30Work days
Number of layers :
1‑layer
Heating method :
Electric heating, heat transfer by thermal oil
Payment Terms :
T/T
Heating cycle motor :
2.2kwX2 Table
Tilt angle :
0°-15°
Packaging Details :
Film with Foam
Actual composite size :
6000mm*1400mm*1100mm
Hydraulic system motor power :
5.5kwX1Table
L-shaped rear material receiving platform :
6500mm*1500mm*1000mm(Without rotation)
Price :
Online/offline communication
Hot press plate size :
6500mm×1500mm *1 pc (Lower) 6500mm×1503mm *1 pc (Upper table pending‑processing size) 6500mm×1200mm *1 pc (Side pressing) 6500mm×1153mm *1 pc (Main pressing side)
Place of Origin :
China
Weight (approx) :
15500kg
Brush motor power :
1.5KWX1Table
Pressure method :
Top‑down pressing/Side pressing
Feed reducer power :
2.2KWX1Table
Brand Name :
Henrriet
Overall dimensions :
6500*2400*850mm
Oil cylinders and quantity (piston cylinders) :
Main pressing: Φ100×Φ70, 350mm stroke, 5 pcs Side pressing cylinder: HOB‑FA‑63, 100mm stroke, 10 pcs Limit cylinder: HOB‑FA‑63, 100mm stroke, 5 pcs 15° tilting cylinder: Φ80×150mm, 4 pcs
Plate thickness :
50mm
Total power :
157.6KW
MOQ :
1
Description

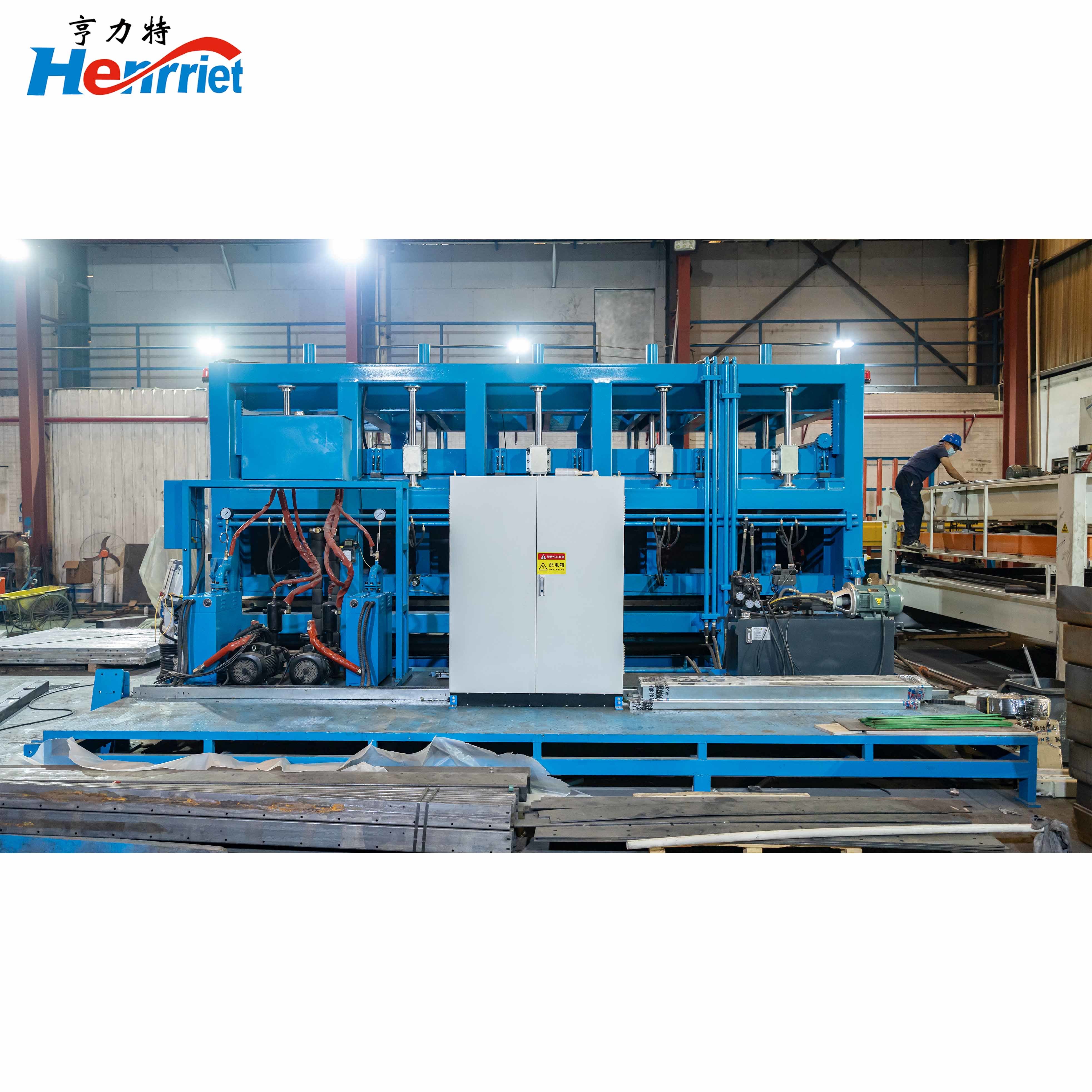

Right‑Angle Hot Press Forming Machine for Composite Door Panels
Product Overview

The right-angle hot press functions as a combined pressing unit built around an L-frame configuration. Its overall construction adopts a sturdy yet space-efficient arrangement, featuring L-shaped conveying platforms positioned at both the front and rear ends, which allow vertical primary pressing and lateral pressing to take place simultaneously.

With electric heating combined with circulating thermal oil and a multi-cylinder hydraulic arrangement, the equipment permits tilting of workpieces and can handle the complete sequence from loading, through bonding, to unloading for oversized panels.

Key Features
• Superior Production Capacity: Performs vertical and lateral pressing in coordinated manner
• Security Guarantee: Multi-cylinder limiting setup prevents over-stroke situations
• Safe Operation: Conveying platforms detached from main body reduce operator risk
• Efficient Heating: Electric heating with thermal oil circulation system
Application Areas

This equipment is commonly used for hot-press lamination of honeycomb panels and sandwich-type composite materials, along with the lamination forming of assorted door panels. It finds application in fields such as building panel fabrication, composite material processing, and the production of prefabricated panels.

Maintenance & Upkeep

Day-to-day maintenance centers on the condition of the hydraulic oil. Routine checks cover sealing performance, the wear level of conveyor media, and the operation of circulation motors. A large share of inspection and servicing activities is performed while the machine is shut down.

Technical Specifications
Pressure Method Top-down pressing / Side pressing
Maximum Pressure Max main pressing force: 80 tons
Max side pressing force: 43 tons
Hot Press Plate Size 6500mm*1500mm *1 pc (Lower)
6500mm*1503mm *1 pc (Upper)
6500mm*1200mm *1 pc (Side pressing)
6500mm*1153mm *1 pc (Main pressing side)
Plate Thickness 50mm
Actual Composite Size 6000mm*1400mm*1100mm
Number of Layers 1-layer
Opening Spacing 0-300mm
Heating System Electric heating, heat transfer by thermal oil
Maximum temperature: Adjustable (Ambient temperature-100℃)
Heating system power: 144KW
Total Power 157.6KW
Overall Dimensions 6500*2400*850mm
Weight (approx) 15500kg
Company Advantages
  • Two In-House Factories: Better prices and faster delivery with no middlemen markups
  • 30+ Senior Engineers: Custom-built solutions tailored to your production needs
  • CE & ISO 9001 Certified: Global-ready equipment meeting international standards
  • 50+ Countries, 1000+ Projects: Proven experience in design and manufacturing
Service Support
  • Warranty: 1 year
  • Packaging: Film with foam
  • 24-hour customer service hotline
  • Respond to repair needs within 48 hours
  • Free video training for operators
  • Process guidance manuals provided
  • Lifetime technical support and software upgrades
Product Image
Right-Angle Hot Press Machine with 80 Tons Main Pressing Force and 6500mm Hot Press Plate Size for Composite Door Panels
Frequently Asked Questions
Who are we?

We are based in Guangdong, China, established in 2016. We have over 110 employees and serve markets worldwide including Domestic Market (55%), Africa (20%), South Asia (9%), Central America (6%), Oceania (5%), South America (3%), and Eastern Asia (2%).

Why should you buy from us instead of other suppliers?

With over 20 years in the wooden machinery industry, we operate two factories covering 20,000+ square meters. Our 130+ professional employees include a senior design team of 30+ engineers. We provide custom machine design, comprehensive installation, commissioning, and operator training to ensure immediate production upon arrival.

How can we guarantee quality?

We confirm machine functions through customer communication, complete custom machine drawing design, provide on-site guidance for cutting, welding and assembly operations, conduct full process testing, and perform final inspection before shipment.

What can you buy from us?
  • Hydraulic cold presses
  • Single-layer and multi-layer hot presses
  • Glue spreading machines
  • Automatic feeder
  • Turnover machine
  • Automatic palletizer
  • Non-standard automated production lines
What services can we provide?

Delivery Terms: FOB, CFR, CIF, EXW, Express Delivery

Payment Currency: USD, EUR, CNY

Payment Type: T/T, L/C, PayPal, Western Union, Cash

Languages: English, Chinese, Spanish, Japanese, Russian, Hindi
