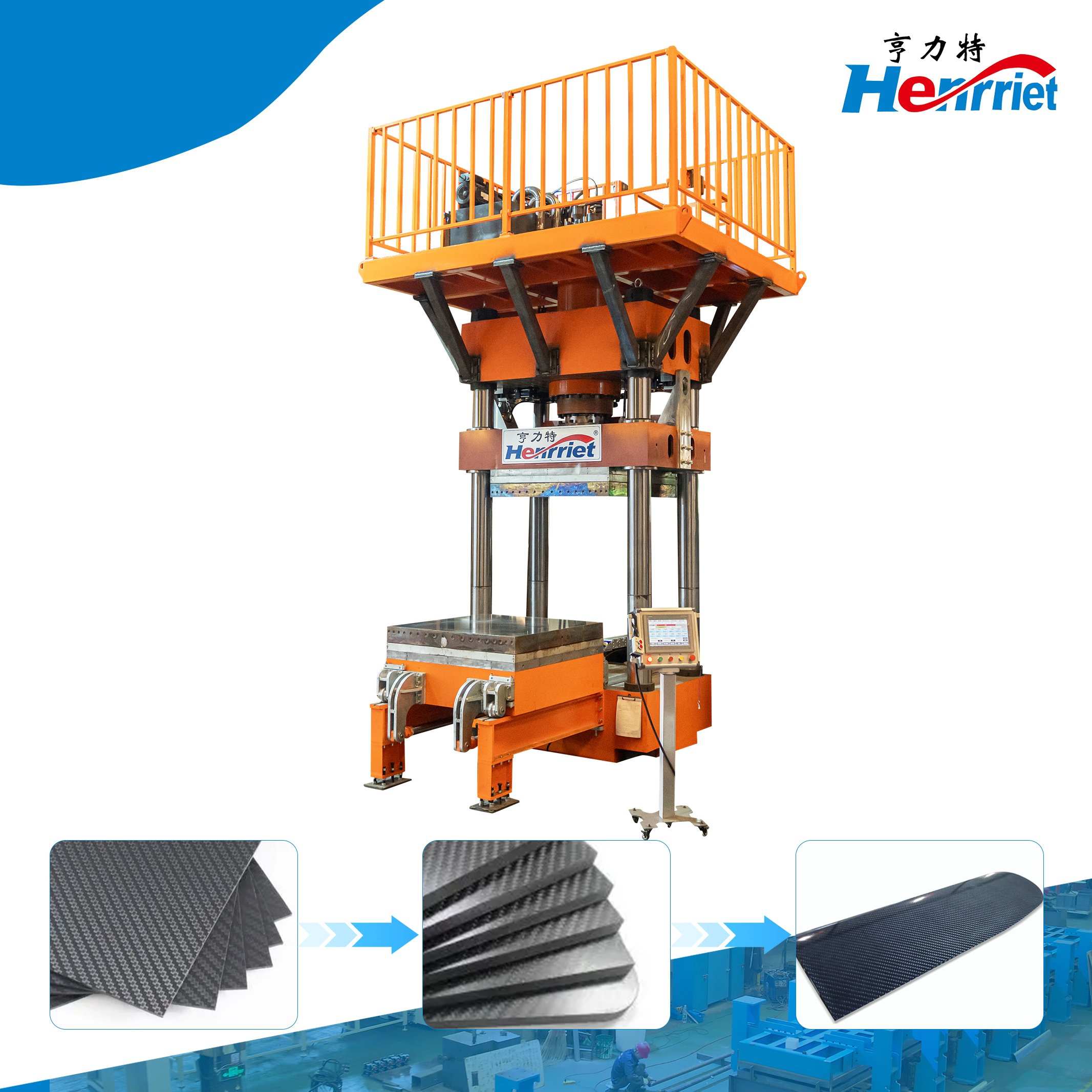

315 Tons Maximum Pressure Hot Press Machine with Adjustable Temperature up to 500°C and High Temperature Hydraulic System for Aerospace Composite Material Press

Specifications

Price :

Online/offline communication

Maximum opening distance ofpressure plate :

450mm

Oil Cylinder specifications :

o100xo70x550 Limit stroke*6items

Lower heating plate :

In/out using cylinder pushpull2 pcs 7Omm*100mm*1250mpiston cylinders

cooling system :

Cooling water plate

Place of Origin :

China

Hydraulic station, hydraulicvalve group :

lset

Certification :

CE、ISO 9001

Weight(approximately) :

6800kg

Opening spacing :

1000mm

maximum temperature :

Adjustable (room temp 500℃）

Delivery Time :

20-30Work days

Push plate specifications :

3210X1500x40x1 piece

Size :

3760*3500*2035mm

guide pillar :

hardening 4

Payment Terms :

T/T

System pressure :

21MPA

Thickness of hot press plate :

120mm*2 pieces

Heating system power :

Electric heating (310grade)Heat transferred by heating tubes18 tubes for each hotplatenP19.8mm heating tubes

Packaging Details :

Film with Foam

Maximum pressure :

315tons

Oil cylinder and quantity :

1 piece, P51Omm400mm360mmTelescopic master-slave cylinderCylinder body: forgedforming Piston rod: 45# steel,high-frequencystraightening and hardening

System power :

4KW

Slider speed :

Fast return 30-50mm/s

Total power of the system :

180.9KW

Maximum pressure of thesystem :

25MPA

Hydraulic system motor power :

15kw

MOQ :

Hot press plate size :

1200mm*1200mm

Brand Name :

Henrriet

Press plate size :

3000X1500mm

thermal insulation board :

60mm*2 pieces

Cooling water plate :

60mm*2 pieces

Push plate power :

3KW (Frequency conversion speedregulation)

Description

High Performance Hot Press Machine for Aerospace Composite Material Forming and Specialized Manufacturing Processes

Description

The Aerospace Special Material Hot Press Machine serves as a professional industrial hot pressing equipment for the machining of high-end special materials. It is primarily utilized for the hot pressing and shaping of aerospace composite materials as well as various special industrial materials. Equipped with a matched hydraulic pressure system and integrated heating and cooling regulation modules, the equipment can meet the demands of material compaction, shaping and thermal processing in scenarios that require decent pressure precision and stable technological operation.

Feature

1, Superior production capacity:

Stable pressure output and adjustable thermal processing conditions are key to ensuring qualified processing effects for aerospace and high-end composite materials. This hot press device adopts a hydraulic drive structure with flexible pressing parameter adjustment functions, and combines heating and cooling modules to adapt to the forming demands of diverse materials. It can be applied in multiple scenarios including material research and development, small-scale batch production and industrialized material machining, offering flexible and targeted hot pressing technical solutions for relevant production enterprises.

2, Security guarantee:

The equipment is optimized and designed to adapt to complex industrial operation environments. The hydraulic power system, pressure-bearing structural parts and guiding components coordinate with one another, which helps maintain steady overall equipment operation. Cooperated with the intelligent heating and cooling regulation system, the device can realize fine management of the hot pressing process, effectively lower the potential production risks brought by fluctuating pressure and temperature parameters during processing.

3, Application areas:

This hot pressing equipment is mostly used in the processing of aerospace composite materials, high-end composite materials and other special industrial materials. Such materials generally have the characteristics of high strength, light weight and complex forming processes, which put forward high requirements on pressure and temperature control accuracy in the molding stage. The device is suitable for multiple processing procedures such as material hot pressing, compaction and structural shaping, and can support the machining of aerospace component materials, high-end composite product manufacturing and special material research and trial production.

4, Maintenance and upkeep:

The equipment integrates hydraulic transmission, heating control and cooling circulation systems. Daily maintenance work mainly focuses on the inspection and maintenance of hydraulic functional parts, temperature control modules and cooling circulation devices. Regular detection of hydraulic operating status, heating components and cooling circulation effects can help sustain the long-term stable operation of the equipment. Standardized maintenance and upkeep specifications can ensure the equipment operates stably for a long time and reduce unnecessary production shutdown duration.

Specification

Maximum pressure				315 tons
Maximum pressure of the system				25MPA
Hot press plate size				1200mm*1200mm
Thickness of hot press plate				120mm*2 pieces
thermal insulation board				60mm*2 pieces
Cooling water plate				60mm*2 pieces
Opening spacing				1000mm
Lower heating plate				In/out using cylinder push-pull2 pcs 70mm100mm1250mm piston cylinders

Slider speed				Idle fast down 30-50mm/s
				Mold closing pressure 1-3.5mm/s
				Demolding 4-10mm/s
				Fast return 30-50mm/s
Hydraulic station, hydraulic valve group				1set
Hydraulic system motor power				15kw
Oil cylinder and quantity				1 piece, φ510mm400mm360mm Telescopic master-slave cylinder Cylinder body: forged forming Piston rod: 45# steel, high-frequency straightening and hardening treatment



guide pillar				4 pcsφ 140mm
Heating system power				Electric heating (310 grade) Heat transferred by heating tubes 18 tubes for each hot platen Φ19.8mm heating tubes



maximum temperature				Adjustable (room temp - 500°C)

cooling system				10P chiller 7.5KW
				Cooling above 200°C
				Cooling below 200°C
				Average cooling speed 1-3°C/min
				Compressed air blowing function
				Cooling water plate
Total power of the system				180.9KW

Advantage

1,Two In-House Factories = Better Prices, Faster Delivery

We own two independent R&D and manufacturing facilities. No middlemen. No markups. You buy straight from the source, with full control over production speed and costs.

2,More than 30 senior engineers, Custom-Built for You

Our 30-person R&D team designs machines around your actual production needs, floor space, and budget. Tell us what you're making—we'll build exactly what you need.

3,CE & ISO 9001 Certified, Global-Ready

Every machine meets EU CE safety standards and ISO 9001 quality requirements. That means full compliance with international electrical, mechanical, and safety regulations—ready to plug and play anywhere in the world.

4,More than 50 countries, 1000+ Projects, Experienced in design and manufacturing

We've shipped to over 50 countries and completed 1,000+ custom designs. Our equipment is engineered for long-term, heavy-duty use—proven in real factories worldwide.
