Solid Piston Rod
Product description:

A Solid piston rod is a vital mechanical component widely used in hydraulic cylinders, pneumatic cylinders, and various industrial equipment. As the core part that connects the piston and the machine’s moving mechanism, the solid piston rod is responsible for transferring force, motion, and pressure. Its durability, surface quality, and precision directly determine the performance, reliability, and lifespan of hydraulic systems and other motion control equipment.

The solid piston rod is typically manufactured from high-strength materials such as carbon steel (AISI 1045), alloy steel (AISI 4140 / 42CrMo), or stainless steel (AISI 304 / 316). These materials are carefully heat-treated to achieve excellent mechanical properties—high tensile strength, good toughness, and superior resistance to bending and fatigue. The surface of the rod is usually hard chrome plated or nickel plated to enhance wear resistance, reduce friction, and protect against corrosion in harsh environments.

The piston rod is a connecting component that supports the piston in performing work. It is mostly used in oil cylinders and air cylinders as motion execution components and is a frequently moving and highly technical motion component. Taking the hydraulic cylinder as an example, it is composed of the cylinder barrel, piston rod (oil Cylinder rod), piston, and end cover. The quality of its processing directly affects the lifespan and reliability of the entire product. The processing requirements for the piston rod are high. Its surface roughness should be within the range of Ra0.4 to 0.8 μm, and strict requirements are imposed on coaxiality and wear resistance.

Parameter:

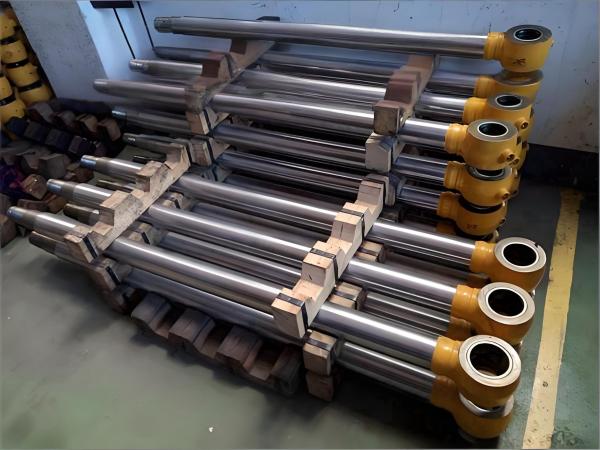

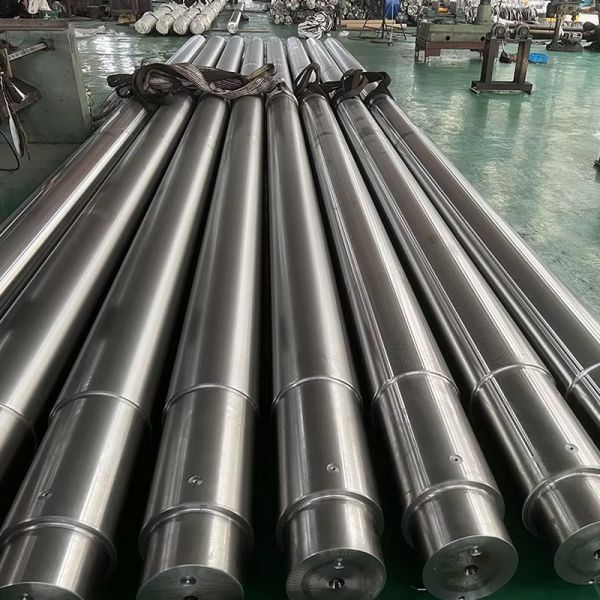

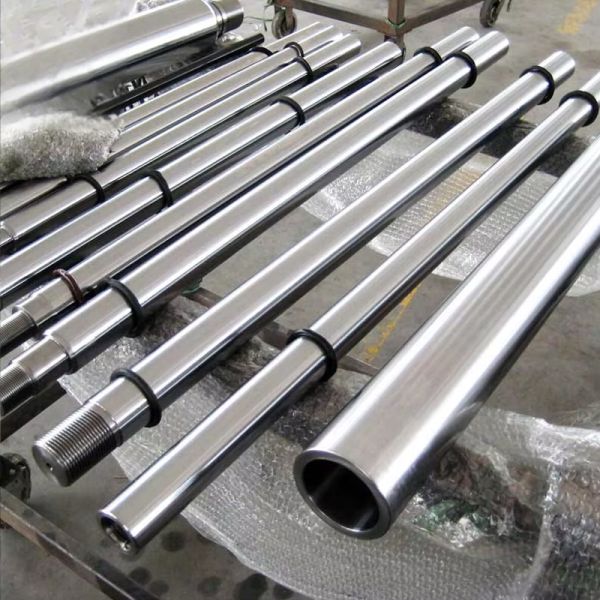

Pictures:

Features and Advantages

• High Strength and Stability – The solid design offers superior load-bearing capacity, making it ideal for heavy-duty hydraulic and pneumatic applications.
• Excellent Surface Finish – Precision grinding and polishing produce an ultra-smooth surface (Ra ≤ 0.2 μm), minimizing seal wear and ensuring smooth piston movement.
• Superior Corrosion Resistance – Chrome or nickel plating provides long-term protection against rust and chemical corrosion.
• High Fatigue Resistance – The heat-treated core maintains excellent mechanical strength under repetitive stress and high-pressure operation.
• Long Service Life – Exceptional surface quality and dimensional accuracy guarantee consistent performance and extended working life.

Manufacturing Process

The production of solid piston rods involves several precision engineering stages:

• Material Selection: High-quality steel bars are chosen based on application requirements.
• Rough Machining: Bars are cut and turned to achieve the desired dimensions.
• Heat Treatment: Quenching and tempering enhance strength, hardness, and toughness.
• Centerless Grinding: The rod surface is ground to achieve tight tolerances and high straightness.
• Hard Chrome Plating: A layer of 20–30 μm chrome is applied to improve surface hardness and wear resistance.
• Polishing: Final mirror polishing produces a smooth and reflective finish.
• Quality Inspection: Each rod is tested for straightness, surface roughness, hardness, and dimensional accuracy.

Production process of the piston rod:

Applications:

The hydraulic cylinder is an energy conversion device that converts hydraulic energy into mechanical energy. It is the core actuating component in the hydraulic system. The hydraulic cylinder uses hydraulic oil to drive the piston to move, converting hydraulic energy into linear reciprocating motion. When the hydraulic oil enters the cylinder barrel, it pushes the piston rod to extend or retract, completing the predetermined action. The direction and speed of its movement are regulated by the hydraulic control system. The hydraulic cylinder consists of a cylinder barrel, cylinder cover, piston and piston rod, sealing device, and buffering device. According to its structure, it can be classified as piston type, plunger type, multi-stage telescopic sleeve type, and gear-rack type. Hydraulic cylinders are widely used in machine tools, construction machinery, vehicles, and other fields, featuring a simple structure and smooth movement.

Solid piston rods are essential in a wide range of industries, including:

• Hydraulic cylinders for construction machinery, excavators, and cranes
• Pneumatic cylinders in automation and industrial robotics
• Automotive shock absorbers and steering systems
• Mining and agricultural machinery
• Marine and offshore equipment exposed to corrosive conditions
• Industrial presses and injection molding machines requiring high precision
• Surface Treatments and Options
• Depending on the working environment, solid piston rods can be customized with different coatings and finishes, such as:
• Hard Chrome Plating – Standard treatment for high hardness and wear resistance
• Nickel-Chrome Dual Layer Coating – Enhanced corrosion protection
• Induction Hardened Surface – Increased fatigue and impact resistance
• Nitriding or Ceramic Coating – Specialized applications for extreme environments

Company profile:

Certification:

Packaging and Transportation:

Why us?

We focus on the research, development, production and sales of seamless steel pipes, special-shaped steel pipes and hydraulic cylinders. We have a complete production chain and an advanced equipment system, including piercing machines, cold drawing machines, hot rolling machines, high-precision flaw detection and testing equipment. The company has passed multiple authoritative certifications such as ISO9001, API, SGS, CCS, DNV, ABS, CE, RoHS, etc., ensuring that each product complies with international standards. We are committed to providing customers with high-quality, customizable solutions to meet diverse application needs.

Relying on our own built processing base and modern workshops, combined with multiple branches and storage centers across the country, we have achieved sufficient inventory and efficient logistics coordination, significantly shortening the delivery cycle and ensuring the rapid delivery of orders.

We have established a complete service and support system. After the order is signed, the professional after-sales team can provide timely and safe on-site guidance and technical support to ensure that customers are at ease throughout the process from procurement to use.

FAQ:

1. Do you support customized design and production?

Sure. We have a professional engineering team that can conduct customized design and production with special sizes, control systems or OEM according to your requirements.

2. How fast can you deliver?

In stock sizes, it takes 3-5 days. For customized sizes, it takes 30-35 days.

3. What payment methods do you support?

We support TT payment. Generally, 30% to 50% of the payment is made in advance, and the remaining amount is paid before shipment.

4. Can you provide material certification (MTC)?

Yes, we will provide MTC to you after production is completed to ensure that the material quality meets the standards.

5. What is the minimum order quantity?

Generally, we accept trial orders. The minimum order quantity is 1-3 tons, which can be determined according to different products.
