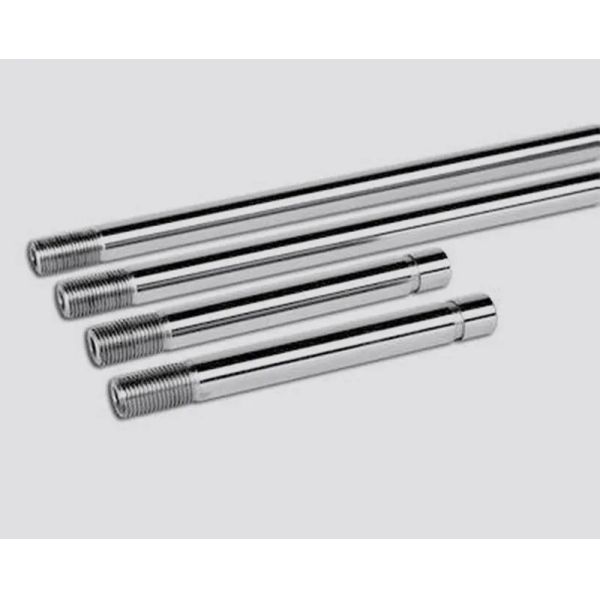

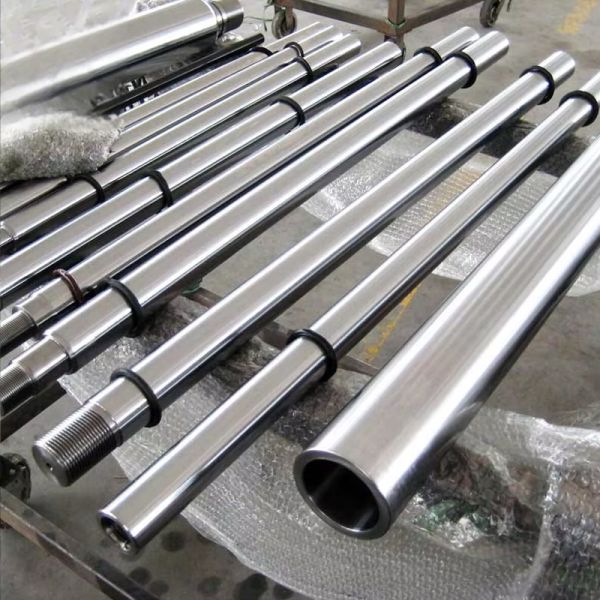

Precision Piston Rod
Product description:

A Precision piston rod is a highly engineered mechanical component used in hydraulic and pneumatic cylinders, automation systems, and industrial machinery. It serves as the main connecting element between the piston and the external mechanism, transmitting force and motion with extreme accuracy. The precision piston rod is characterized by its superior dimensional accuracy, fine surface finish, and excellent mechanical properties, which ensure smooth operation, reduced wear, and long service life in high-performance applications.The piston rod is a connecting component that supports the piston in performing work. It is mostly used in oil cylinders and air cylinders as motion execution components and is a frequently moving and highly technical motion component. Taking the hydraulic cylinder as an example, it is composed of the cylinder barrel, piston rod (oil Cylinder rod), piston, and end cover. The quality of its processing directly affects the lifespan and reliability of the entire product. The processing requirements for the piston rod are high. Its surface roughness should be within the range of Ra0.4 to 0.8 μm, and strict requirements are imposed on coaxiality and wear resistance.

Parameter:

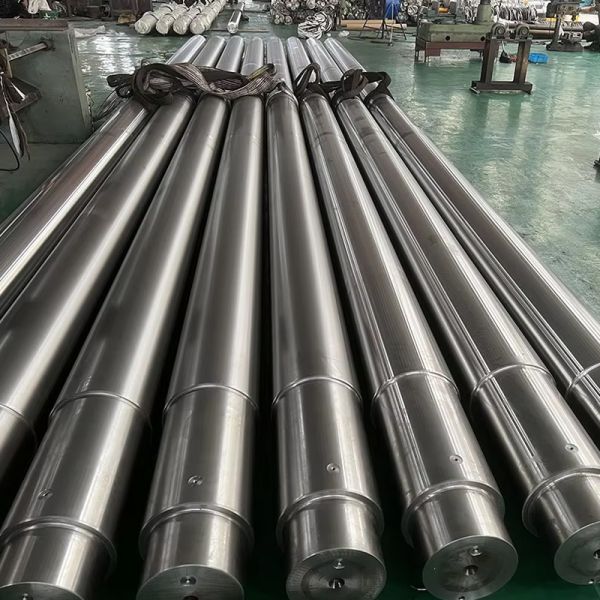

Pictures:

Material and Construction

Precision piston rods are typically made from high-quality carbon steel (AISI 1045, CK45), alloy steel (AISI 4140, 42CrMo4), or stainless steel (AISI 304, 316L). These materials are carefully selected for their high tensile strength, hardness, and resistance to bending and fatigue. Depending on the working environment, different materials and coatings can be chosen to ensure optimal corrosion resistance and durability.

The outer surface of the precision piston rod is usually treated with hard chrome plating or nickel plating, forming a dense, wear-resistant layer that enhances surface hardness and prevents corrosion. Advanced centerless grinding, mirror polishing, and precision straightening technologies are used to achieve extremely tight tolerances and surface roughness values as low as Ra ≤ 0.2 μm, meeting the stringent requirements of modern hydraulic and pneumatic systems.

Manufacturing Process

The production of precision piston rods follows a series of rigorous, controlled steps to ensure accuracy and quality:

• Material Preparation: Selection of high-quality steel bars with precise chemical composition and uniform grain structure.
• Heat Treatment: Quenching and tempering improve mechanical strength, toughness, and fatigue resistance.
• Centerless Grinding: Multiple grinding stages achieve perfect roundness, straightness, and dimensional precision.
• Hard Chrome Plating: A 20–30 μm chrome layer is applied for superior hardness (HRC 60–65) and corrosion resistance.
• Polishing: Mirror-like surface finish reduces friction and ensures seal longevity.
• Precision Inspection: Each rod undergoes strict testing for straightness, diameter tolerance, surface finish, hardness, and coating thickness.

Key Features and Advantages

• Exceptional Dimensional Accuracy: Guaranteed precision tolerances for consistent performance in high-speed applications.
• Ultra-Smooth Surface Finish: Reduces seal wear and friction losses, ensuring efficient motion control.
• High Strength and Stability: Withstands high-pressure loads and dynamic stresses.
• Corrosion and Wear Resistance: Chrome or nickel plating provides protection in harsh environments.
• Fatigue and Impact Resistance: Heat-treated structure ensures long-term durability.
• Customizable Options: Available in various diameters, lengths, and coatings according to customer requirements.

Production process of the piston rod:

Applications:

The hydraulic cylinder is an energy conversion device that converts hydraulic energy into mechanical energy. It is the core actuating component in the hydraulic system. The hydraulic cylinder uses hydraulic oil to drive the piston to move, converting hydraulic energy into linear reciprocating motion. When the hydraulic oil enters the cylinder barrel, it pushes the piston rod to extend or retract, completing the predetermined action. The direction and speed of its movement are regulated by the hydraulic control system. The hydraulic cylinder consists of a cylinder barrel, cylinder cover, piston and piston rod, sealing device, and buffering device. According to its structure, it can be classified as piston type, plunger type, multi-stage telescopic sleeve type, and gear-rack type. Hydraulic cylinders are widely used in machine tools, construction machinery, vehicles, and other fields, featuring a simple structure and smooth movement.

Chrome-plated piston rods are essential in a wide range of hydraulic and pneumatic equipment, including:

• Hydraulic cylinders in construction machinery, cranes, and loaders
• Pneumatic cylinders for automation and robotics
• Agricultural and forestry machinery such as harvesters and tractors
• Industrial presses and injection molding machines
• Automotive shock absorbers and steering systems
• Marine, offshore, and mining equipment exposed to harsh environments

In each of these applications, the chrome-plated surface minimizes friction and wear, improving the overall efficiency and lifespan of the hydraulic system.
