27simn Precision Honed Tube

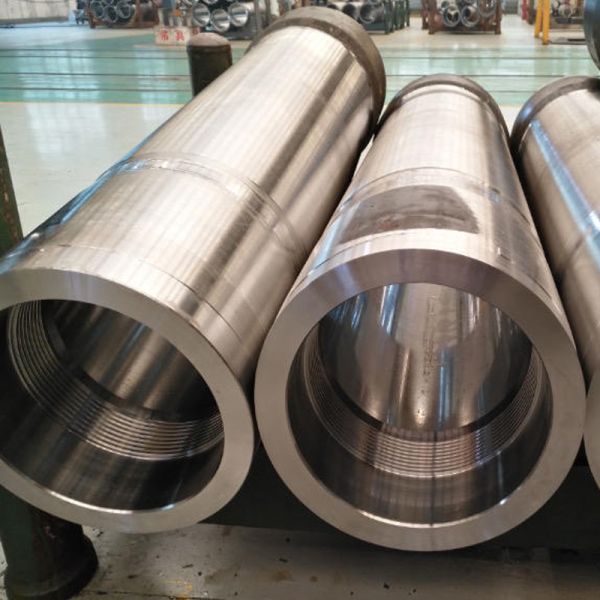

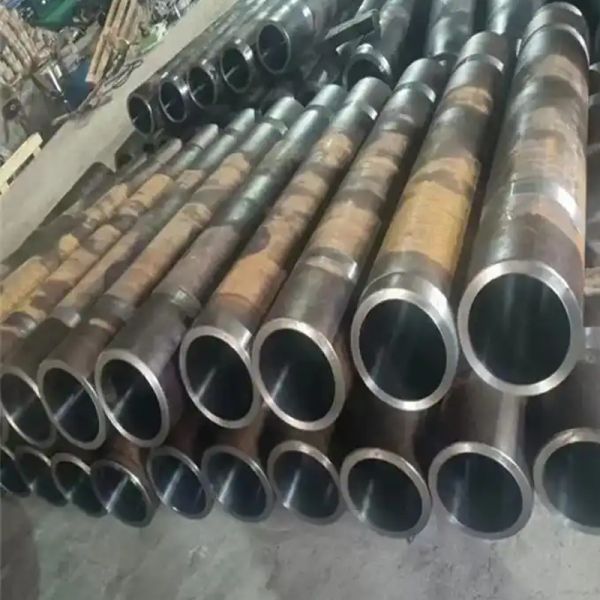

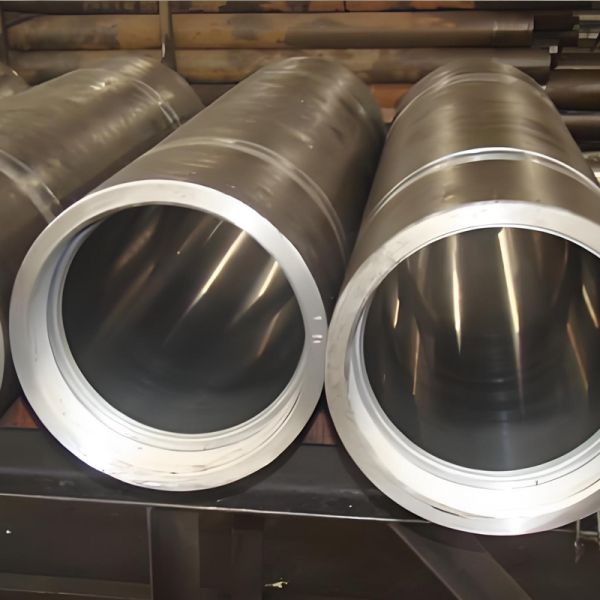

A 27SiMn honing tube is a high-precision, seamless steel cylinder tube meticulously processed to achieve exceptional internal surface finish, dimensional accuracy, and straightness. The name derives from its two core components: the material grade "27SiMn" and the finishing process "honing."

27SiMn is a Chinese standard (GB/T 3077-2015) low-alloy, high-strength structural steel renowned for its excellent comprehensive properties. The designation breaks down as:

27: Indicates a carbon content of approximately 0.24-0.32%, providing a good balance of strength and toughness.

Si: Silicon, typically between 1.10-1.40%, which significantly enhances strength, hardness, and elastic limit. It also improves resistance to oxidation and decarburization.

Mn: Manganese, typically between 1.10-1.40%, which increases hardenability, strength, and wear resistance.

This specific chemical composition makes 27SiMn superior to common carbon steels like ASTM A106 Grade B or ST52, offering higher yield strength, better impact toughness, and superior fatigue resistance.

Honing is an abrasive machining process that produces a precise cross-hatch pattern on the internal surface (ID) of a tube. It involves using a honing tool with expanding abrasive stones (often silicon carbide or diamond) that rotate and reciprocate simultaneously within the bore. This unique motion ensures a truly round, straight, and dimensionally accurate cylinder with a controlled surface texture.

The production of a 27SiMn honing tube involves several critical stages:

Material Selection & Pipe Making: High-quality 27SiMn steel billets are selected and transformed into seamless tubes primarily through the hot-rotary piercing process (Mandrel Mill or Assel Mill), ensuring a homogeneous, void-free structure.

Heat Treatment: This is a crucial step for 27SiMn. The tubes undergo quenching and tempering.

Quenching: The tube is heated to above its critical temperature (around 880-920°C) and rapidly cooled (in water or oil). This creates a very hard but

brittle martensitic structure.

• Tempering: The quenched tube is reheated to a specific lower temperature (e.g., 450-600°C) and held, then cooled. This process relieves internal stresses, increases toughness and ductility, and achieves the final desired mechanical properties.
• Rough Machining: The heat-treated tube is turned and bored on a CNC lathe to remove scale and decarburized layers, achieving a near-net size with a uniform wall thickness.
• Honing (Finish Machining): The pre-machined tube undergoes the honing process. This is typically done in two stages:
• Rough Honing: Uses coarse-grit stones to remove stock quickly and correct geometric errors like taper and barrel shape.
• Finish Honing: Uses progressively finer grit stones to achieve the final precise inner diameter and the required surface finish (often Ra 0.2 - 0.4 μm, or even finer for critical applications).
• Cleaning and Inspection: The Honed tube is thoroughly cleaned to remove all abrasive particles and metal fines. It undergoes 100% inspection, including measuring inner diameter tolerance, surface roughness, straightness, and visual checks for defects.

Properties and Characteristics

High Strength and Pressure Resistance: The quenched and tempered 27SiMn material offers very high yield strength (≥685 MPa) and tensile strength (≥885 MPa), allowing the tube to withstand extremely high internal and external pressures without permanent deformation.

• Excellent Wear Resistance: The hard, smooth honed surface significantly reduces friction against seals, pistons, and rods, leading to exceptional resistance to abrasion and galling, which extends the service life of both the tube and the components moving within it.
• Superior Surface Finish: The honing process creates a cross-hatch pattern ideal for retaining lubrication oil, ensuring consistent lubrication and preventing stick-slip motion of pistons. The fine finish (low Ra value) minimizes seal wear.
• Precise Geometric Form: Honing eliminates waviness and ensures exceptional straightness and cylindricity (roundness throughout the length), which is critical for the smooth, efficient, and leak-free operation of hydraulic systems.
• Good Toughness and Impact Resistance: The tempering process ensures the material retains good toughness, allowing it to absorb shock loads and impacts without fracturing.

Primary Applications

27SiMn honing tubes are the preferred choice for high-performance applications where reliability, durability, and precision are non-negotiable.

• hydraulic cylinders: The most common application. Used as the cylinder barrel in manufacturing, construction (e.g., excavator arms, bulldozer rams), mining machinery, and heavy-duty industrial equipment.
• Pneumatic Cylinders: For high-pressure pneumatic systems.
• Oil and Gas Industry: As honed tubing for pumps, valves, and downhole tools.
• Automotive Industry: In shock absorber cylinders and other suspension components.
• Plastic and Injection Molding Machines: As tie rods and injection cylinders requiring high tensile strength and precision.
