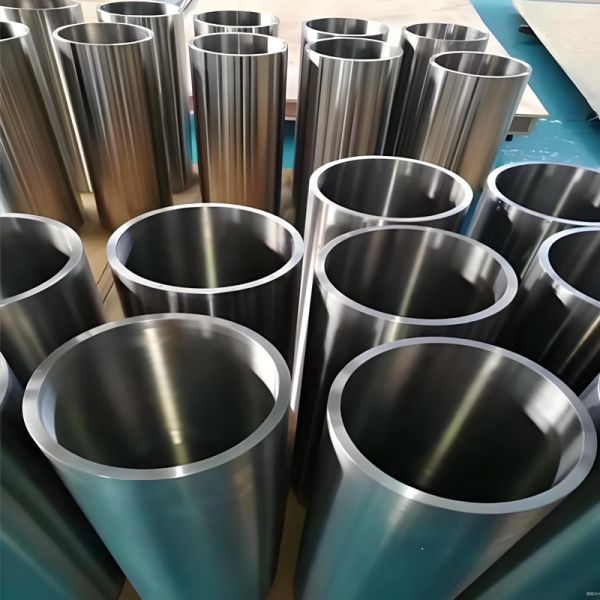

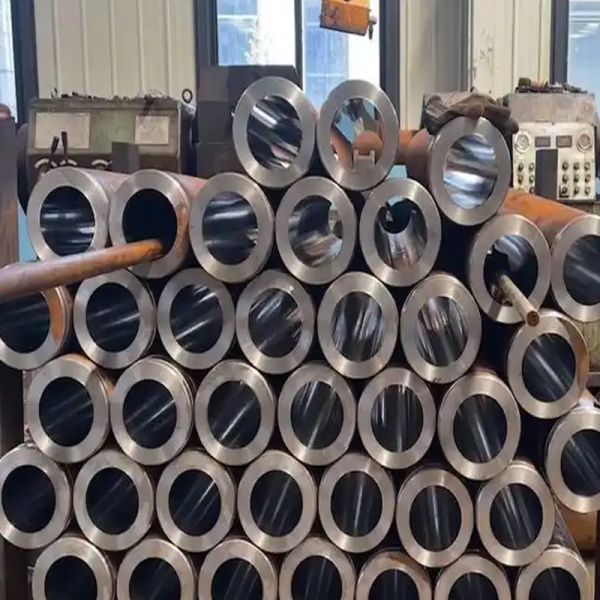

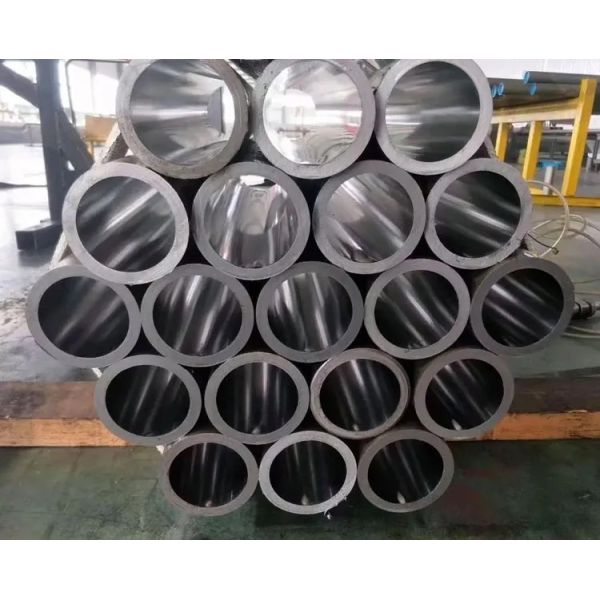

42crmo Precision Honed Tube

The 42CrMo Honed tube represents a pinnacle of precision manufacturing in the realm of seamless steel tubing. Engineered for superior performance in high-stress, high-precision environments, these tubes are the preferred choice for industries where reliability, durability, and exacting dimensional accuracy are non-negotiable. The name derives from its material grade, 42CrMo (AISI 4140/4142), a high-strength chromium-molybdenum alloy steel, and its final manufacturing process—honing—which delivers an exceptionally fine surface finish and precise internal dimensions. This combination results in a component that is critical for the efficient operation of hydraulic and pneumatic systems, automotive parts, and heavy machinery.

Material Excellence: 42CrMo Alloy Steel

The foundation of the honed tube's exceptional properties lies in the 42CrMo material itself. This low-alloy steel is renowned for its outstanding blend of strength, toughness, and wear resistance, achieved through its specific chemical composition:

• Carbon (C): Provides high strength and hardness.

• Chromium (Cr): Enhances hardenability, wear resistance, and corrosion resistance to a certain degree.

• Molybdenum (Mo): Improves strength at high temperatures, enhances hardenability, and reduces susceptibility to temper embrittlement.

This composition allows the tubes to be heat-treated (quenched and tempered) to achieve a wide range of mechanical properties, tailoring them to specific application needs. Typical tensile strength can exceed 900 MPa, with excellent impact resistance.

The Honing Process: Achieving Perfection Internally

While the material provides the inherent strength, the honing process is what sets these tubes apart. Honing is an abrasive machining process that produces a precise bore geometry and a superior surface finish. The process involves using a honing tool with expanding abrasive stones that rotate and reciprocate within the tube's interior. This cross-hatch pattern of abrasion achieves several critical outcomes:

1. Extreme Dimensional Accuracy: Honing ensures a consistent and precise internal diameter (ID) with very tight tolerances, which is crucial for the efficient sealing and smooth movement of pistons.

2. Superior Surface Finish: It creates an exceptionally smooth, low-roughness surface (often achieving Ra ≤ 0.4 µm or lower). This minimizes friction, reduces wear on seals and pistons, and enhances the overall efficiency and service life of the hydraulic cylinder.

3. Improved Geometric Properties: The process corrects minor distortions, waves, or taper in the bore, resulting in a straight and truly cylindrical inner surface.

Key Features and Advantages

• High Pressure Resistance: The strength of 42CrMo steel allows these tubes to withstand extremely high internal pressures without deformation or failure.

• Excellent Wear and Abrasion Resistance: The hard, smooth internal surface significantly reduces wear on both the tube itself and dynamic sealing elements, leading to longer component life and reduced maintenance downtime.

• Superior Sealing Capability: The precise geometry and fine surface finish ensure an optimal seal with piston seals, preventing fluid leakage and maintaining system pressure and efficiency.

• High Fatigue Strength: The material's properties make it highly resistant to failure under cyclic loading, which is common in hydraulic applications.

• Customizability: These tubes can be supplied in various lengths, OD and ID sizes, and with different mechanical properties achieved through tailored heat treatment processes.

Applications

42crmo Honed Tubes are indispensable in applications that demand robustness and precision:

• Hydraulic Cylinders: The primary application, used as the barrel in hydraulic cylinders for construction equipment (excavators, bulldozers), agricultural machinery, industrial presses, and manufacturing automation systems.

• Pneumatic Cylinders: For high-performance pneumatic systems requiring precision and durability.

• Automotive Components: In shock absorbers, struts, and other suspension parts.

• Material Handling Equipment: In forklifts, cranes, and lifting platforms.

• Plastic Injection Molding Machines: As tie-rods and cylinders where high tensile strength is critical.

Selection and Considerations

• Internal Diameter Tolerance and Surface Finish (Ra value): Specify according to the seal type and application requirements.
• Mechanical Properties: Ensure the tensile strength, yield strength, and hardness (e.g., 250-320 HB) meet the design specifications.
• Straightness and Roundness: Critical for preventing premature seal wear and ensuring smooth piston travel.
• Certification: Material traceability and certifications like EN 10204 3.1 may be required for critical applications.
