Multi Capacity Mini Centrifuge Machine High Speed 20000RPM Benchtop Laboratory Centrifuge
Multi Capacity Mini Centrifuge Machine High Speed 20000RPM Benchtop Laboratory Centrifuge
Multi Capacity Mini Centrifuge Machine High Speed 20000RPM Benchtop Laboratory Centrifuge
Multi Capacity Mini Centrifuge Machine High Speed 20000RPM Benchtop Laboratory Centrifuge
Multi Capacity Mini Centrifuge Machine High Speed 20000RPM Benchtop Laboratory Centrifuge
Multi Capacity Mini Centrifuge Machine High Speed 20000RPM Benchtop Laboratory Centrifuge
Multi Capacity Mini Centrifuge Machine High Speed 20000RPM Benchtop Laboratory Centrifuge
Multi Capacity Mini Centrifuge Machine High Speed 20000RPM Benchtop Laboratory Centrifuge
Multi Capacity Mini Centrifuge Machine High Speed 20000RPM Benchtop Laboratory Centrifuge
Multi Capacity Mini Centrifuge Machine High Speed 20000RPM Benchtop Laboratory Centrifuge
Multi Capacity Mini Centrifuge Machine High Speed 20000RPM Benchtop Laboratory Centrifuge
Multi Capacity Mini Centrifuge Machine High Speed 20000RPM Benchtop Laboratory Centrifuge
Specifications
Model Number :
3-20N
Certification :
CE&ISO&RoHs
Max. Speed :
20000rpm
Power Supply :
AC220±22v50HZ 10A, 700W
Seepd Accuracy :
±10rpm
Power :
AC220±22v50HZ 10A, 700W
Noise Level :
≤60dB(A)
Nosie :
≤60dB(A)
Max Speed :
20000rpm
Speed Accuracy :
±10rpm
Delivery Time :
5-15 days
Max Capacity :
4×250ml
Packaging Details :
Carton+wooden pallet
Max. RCF :
29060xg
Model :
3-20N
Dimensions :
550*470*290mm
MOQ :
1 set
Net Weight :
38kg
Brand Name :
Hengnuo/OEM LOGO
Rotor Type :
NCP fixed rotor/ swing-out rotor
Max RCF :
29060xg
Max. Capacity :
4×250ml
Payment Terms :
L/C,T/T,Western Union
Time Range :
1s-99min59s/1min-99h59min
Packaging :
64*56*48cm
Place of Origin :
Hunan, China
Supply Ability :
20000 sets/year
Description

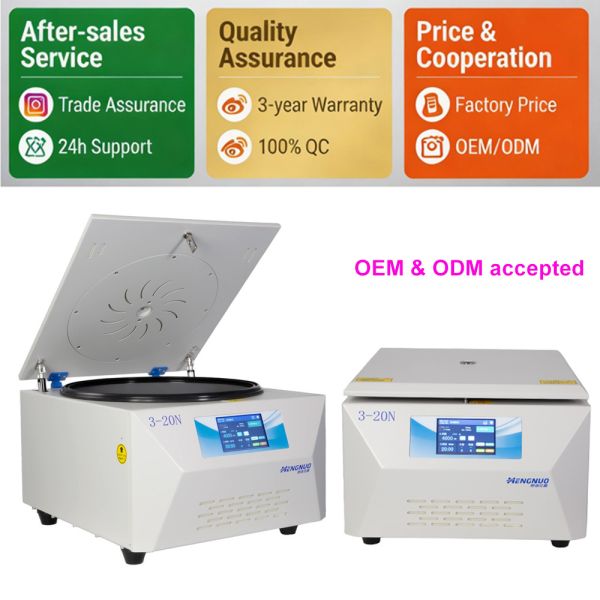

High-Speed 20000RPM Benchtop Laboratory Centrifuge 3-20N 4×250ml Multi-Capacity
Key Features
  • Ultra High-Speed Performance: Reaches up to 20,000 RPM / 29,060×g, ideal for precise laboratory separation
  • Versatile Multi-Capacity Rotor: Supports maximum capacity of 4×250ml tubes for diverse laboratory applications
  • User-Friendly Interface: Digital touch panel with clear display for speed, time, and RCF settings
  • Premium Build Quality: Durable alloy body and corrosion-resistant chamber ensure long service life
  • Safety First: Equipped with imbalance detection, automatic lid lock, and over-speed protection
  • Energy Efficient & Quiet: Optimized motor reduces energy consumption and operational noise
  • Global Certifications: CE, RoHS and ISO compliant, suitable for international laboratory standards
Product Overview

Introducing the High-Speed 20000RPM Benchtop Laboratory Centrifuge, engineered for demanding research, medical, and industrial laboratories. This centrifuge combines high precision with reliability, allowing seamless separation of blood, plasma, cell cultures, and chemical samples.

Ideal Applications
  • Medical Testing Labs: Blood, plasma, urine, and diagnostic sample preparation
  • Biological Research: Cell culture, protein, DNA/RNA, and biomolecule separation
  • Clinical and Hospital Labs: Rapid centrifugation for clinical samples and analysis
  • Pharmaceutical & Industrial Labs: Chemical analysis, sample purification, and quality control
  • Government & University Labs: High-capacity, reliable centrifuge for research and teaching purposes
Multi Capacity Mini Centrifuge Machine High Speed 20000RPM Benchtop Laboratory Centrifuge
Technical Specifications
Parameter Specification
Model 3-20N
Maximum Speed 20,000 RPM
Maximum RCF 29,060×g
Capacity 4×250ml
Rotor Type Fixed Angle, swing-out rotor
Time Setting 1s-99min59s/1min-99h59min
Power Supply 220V/50Hz (optional 110V/60Hz)
Motor Brushless DC
Display Digital Touch Panel
Safety Features Imbalance detection, automatic lid lock, over-speed protection
Certification CE, ISO, RoHS
Multi Capacity Mini Centrifuge Machine High Speed 20000RPM Benchtop Laboratory Centrifuge
Rotor Technical Parameters
Serial Number Capacity Maximum Speed Maximum Relative Centrifugal Force
1 12×1.5/2ml Fixed-angle Rotor 18,500 rpm 27,100×g
2 24×1.5/2ml Fixed-angle Rotor 15,000 rpm 22,387×g
3 36×1.5/2ml Fixed-angle Rotor 15,000 rpm 22,262×g
4 48×1.5/2ml Fixed-angle Rotor 12,000 rpm 16,260×g
5 18×5ml Fixed-angle Rotor 15,000 rpm 24,148×g
6 12×10ml Fixed-angle Rotor 13,000 rpm 20,500×g
7 12×15ml Fixed-angle Rotor 11,000 rpm 15,620×g
8 6×50ml Fixed-angle Rotor 12,000 rpm 17,146×g
9 6×100ml Fixed-angle Rotor 11,000 rpm 15,354×g
10 8/16×10/15ml Disk Rotor 4,000 rpm 2,200×g
11 4×120ml Horizontal Rotor 4,000 rpm 2,683×g
12 4×250ml Horizontal Rotor 4,000 rpm 3,100×g
13 2×2×96 Microplate 4,000 rpm 2,300×g
Product Series Comparison
Product Model 3-18N 3-18R 3-20N 3-20R 4-20N 4-20R 5-5N 5-5R
Maximum Speed 18,500 rpm 18,500 rpm 20,000 rpm 20,000 rpm 20,000 rpm 20,000 rpm 5,500 rpm 5,500 rpm
Maximum RCF 27,100×g 27,100×g 29,060×g 29,060×g 29,060×g 29,060×g 5,330×g 5,330×g
Max Capacity 6×100ml 6×100ml 4×250ml 4×250ml 4×750ml 4×750ml 4×1000ml 4×1000ml
Total Power 550W 1,200W 700W 1,200W 1,000W 1,200W 1,500W 2,800W
Net Weight 33kg 55kg 38kg 65kg 48kg 90kg 160kg 190kg
Multi Capacity Mini Centrifuge Machine High Speed 20000RPM Benchtop Laboratory Centrifuge
Multi Capacity Mini Centrifuge Machine High Speed 20000RPM Benchtop Laboratory Centrifuge
