High-performance tabletop centrifuge designed for laboratory applications, featuring a maximum speed of 20,000 rpm and capacity for samples from 2ml to 500ml.
General Basic Lab Experiments: Ideal for biochemistry, basic molecular experiments, routine agricultural & forestry testing and teaching laboratories, for samples stable at room temperature.
Routine Clinical Testing: Widely used in hospitals, physical examination centers and CDC for routine blood separation, urine & saliva screening and regular sample retention.
Common Sample Separation: Capable of separating, layering and concentrating fixed specimens, crude extracts, ordinary bacterial liquid, standard tube samples and microplate samples.
Application Limitation: Only for samples stable at room temperature with low requirements on biological activity. Not recommended for experiments requiring low-temperature protection.
Optimized for sample volumes from 2ml to 250ml, it efficiently performs centrifugation, layering, purification and separation for blood, serum, plasma, urine, saliva, cell suspension, tissue extracts, microorganisms, nucleic acids, proteins, agricultural & forestry samples, blood collection tube samples and 96-well microplate samples.
| Model | 3-20N | Order Number | 08143200 |
|---|---|---|---|
| Maximum Speed | 20000rpm | Timer Range | 1s-99min59s/1min-99h59min |
| Maximum Relative Centrifugal Force | 29060xg | Total Power | 700W |
| Maximum Capacity | 4x250ml | Net Weight | 38kg |
| Speed Accuracy | ±10rpm | Dimensions | 55x47x31(cm) |
| Power Supply | AC 220+22V50Hz 10A | ||
| Rotor No. | Capacity (ml) | Max. Speed (rpm) | Max. RCF (×g) | Centrifugal Angle | Order Number |
|---|---|---|---|---|---|
| FNCP-45-122 | 12x1.5/2ml | 18500 | 27100 | 45° | HNN011200020 |
| FNCP-45-242 | 24x1.5/2ml | 15000 | 22387 | 45° | HNN012400020 |
| FNCP-45-362 | 36x1.5/2ml | 15000 | 22262 | 45° | HNN013600020 |
| FNCP-45-482 | 48x1.5/2ml | 12000 | 16260 | 45° | HNN014800020 |
| FNCP-45-185 | 18x5ml(round bottom) | 15000 | 24148 | 45° | HNN011800050 |
| FNCP-45-1210 | 12x10ml(round bottom) | 13000 | 20500 | 45° | HNN011200100 |
| FNCP-30-1215 | 12x15ml(sharp bottom) | 12000 | 18594 | 45° | HNN011200150 |
| adapter for 12x15ml | 12x5ml(round bottom) | 12000 | 18594 | B011200150 | |
| FNCP-30-650 | 6x50ml(sharp/round bottom) | 12000 | 17146 | 30° | HNN010600500 |
| adapter for 6x50ml | 6x15ml(sharp bottom) | 12000 | 17146 | B6005006015 | |
| 6x10ml(round bottom) | 12000 | 17146 | B6005006010 | ||
| FNCP-30-6100 | 6x100ml(round bottom) | 11000 | 15354 | 30° | HNN010601000 |
| adapter for 6x100ml | 6x50ml(sharp bottom) | 11000 | 15354 | B6010006050 | |
| 6x15ml(sharp bottom) | 11000 | 15354 | B6010006015 | ||
| 6x3x10ml(round bottom) | 11000 | 15354 | B6010018010 |
| Rotor No. | Capacity (ml) | Max. Speed (rpm) | Max. RCF (×g) | Order Number | Rotor Image |
|---|---|---|---|---|---|

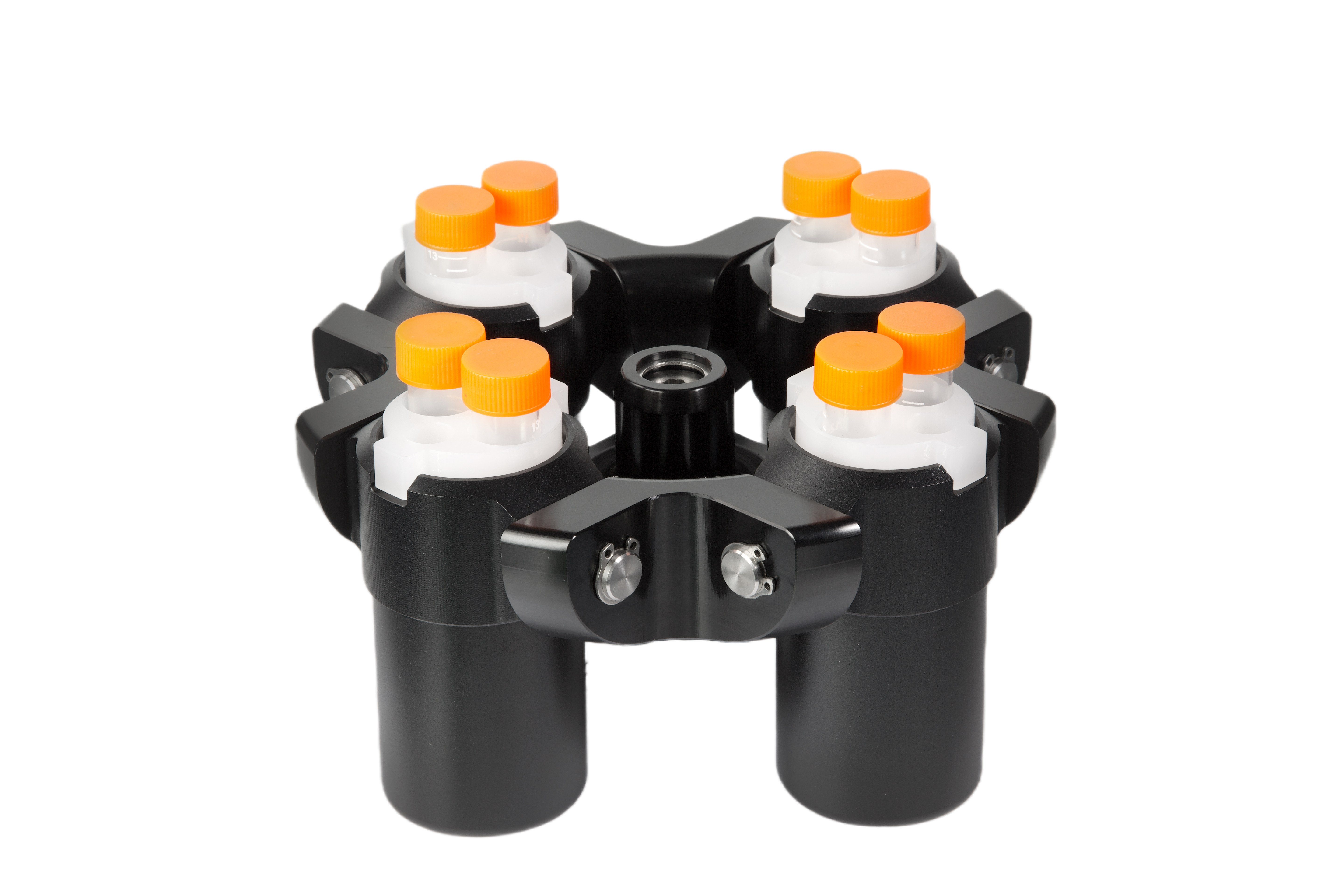

| AIH-4-120 | 4x120ml | 4000 | 2683 | LNN020401200 | ![]() |
| adapter for 4x120ml | 4x50ml | 4000 | 2683 | A4120004050 | |
| 8x15ml+8x1.5ml | 4000 | 2683 | B120008015 | ||

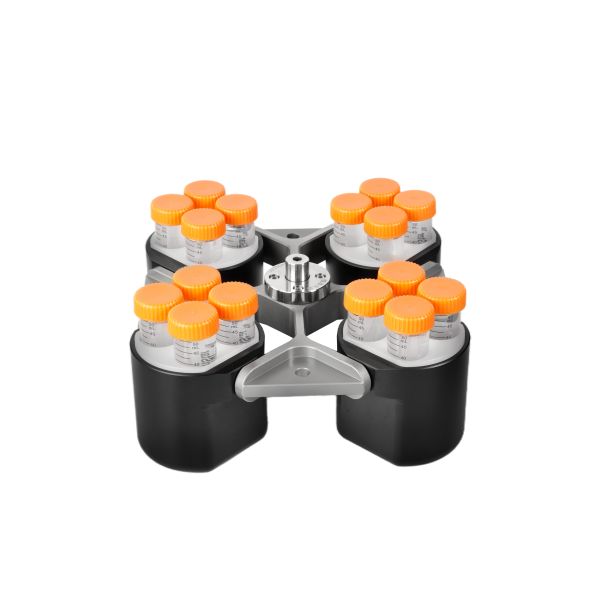

| AIH-4-250 | 4x250ml(round bottom) | 4000 | 3100 | LNN020402502 | ![]() |
| adapter for 4x250ml | 4x4x50ml(sharp bottom) | 4000 | 3100 | B4250016050 | |
| 4x8x15ml(sharp bottom) | 4000 | 3100 | B4250032015 | ||
| 4x8x10ml(round bottom) | 4000 | 3100 | B4250032010 | ||
| 4x14x5ml(round bottom) | 4000 | 3100 | B4250056005 | ||
| 4x14x1.5/2ml(sharp bottom) | 4000 | 3100 | B4250056002 | ||
| 4x10x10ml(Collection tubes) | 4000 | 3100 | B4250040010 | ||
| 4x18x5ml(Collection tubes) | 4000 | 3100 | B4250072005 | ||

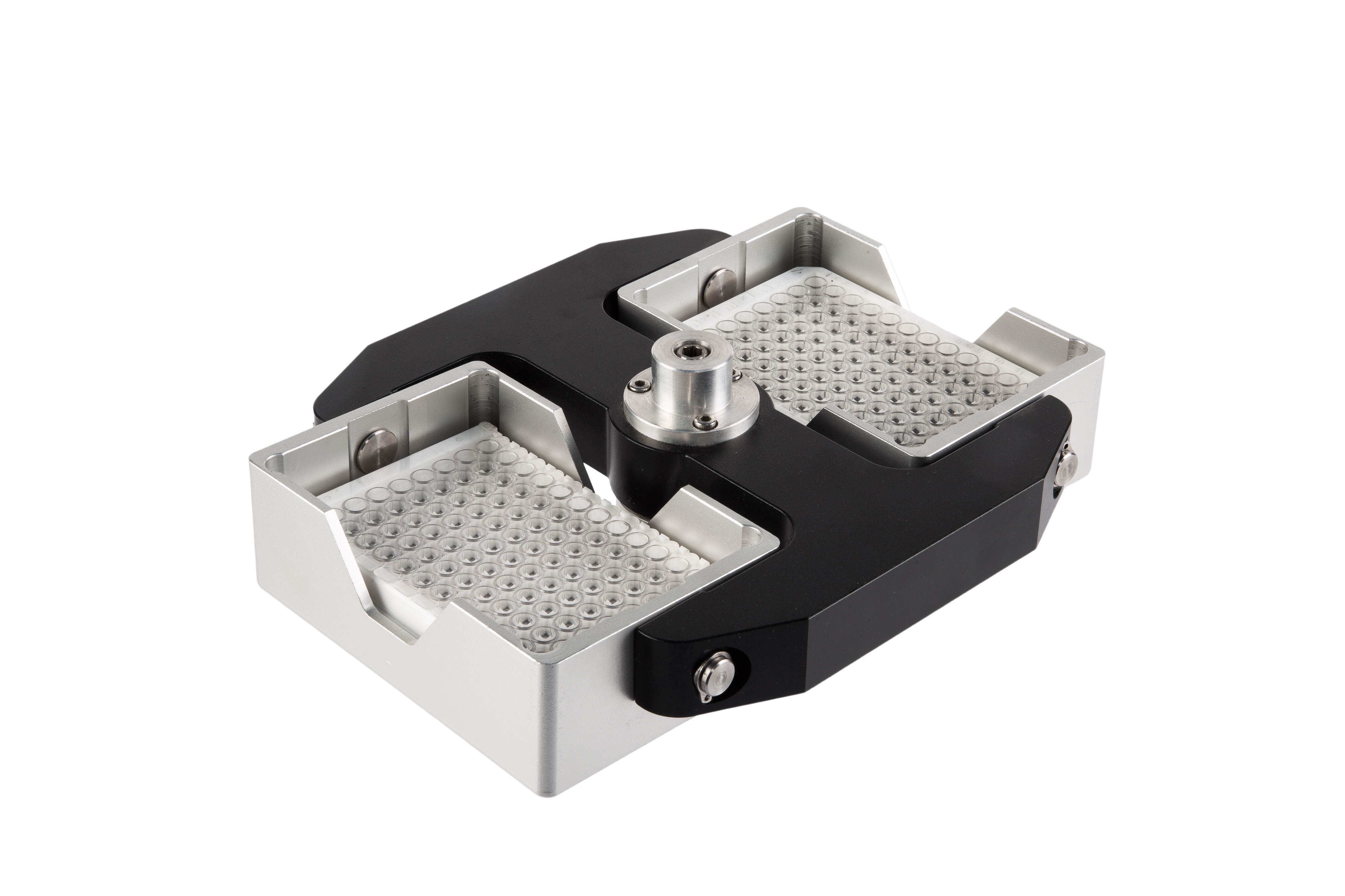

| AI-4-96ES | ELISA plate rotor 2x2x96 wells | 4000 | 2300 | LNN020202961 | ![]() |
