Specifications
Payment Terms :
L/C,D/P,D/A,T/T,Western Union
Delivery Time :
30day
Classification :
Laboratory Centrifuge
Model Number :
1-14
Warranty :
3 Year
Weight :
12kg
Max Speed :
14800rpm
Packaging Details :
Packing size: 420 × 300 × 280 mm
Certification :
CE, ISO
Brand Name :
Hengnuo
MOQ :
1
Place of Origin :
Hunan, China
Timing Range :
1s-99min59s/1min-99hn99min
Price :
$570
Description
High Speed Mini Centrifuge 1-14 Friendly Opeeration For Smaple Processing Laboratory Use
Product Overview

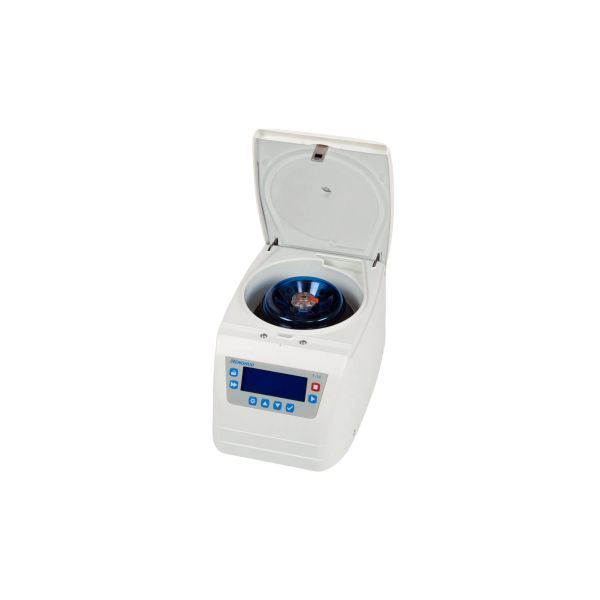

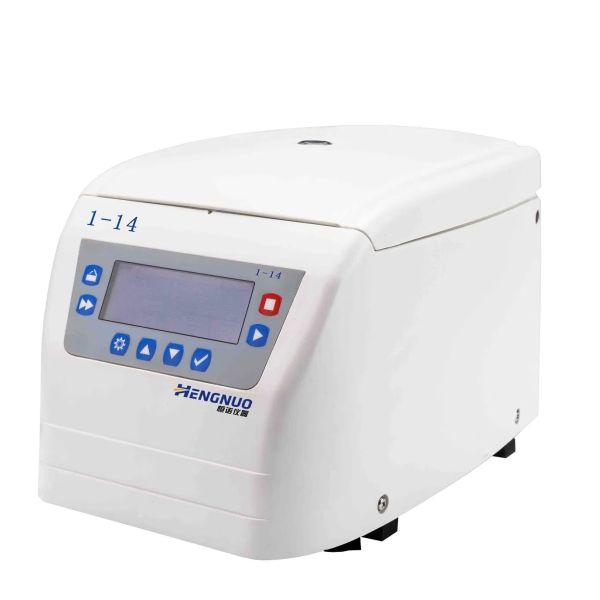

The Hengnuo 1-14 Micro High-Speed Centrifuge is a compact, powerful, and reliable laboratory instrument designed for life science, medical, and chemical applications. With a maximum speed of 14800rpm and RCF of 21000×g, it delivers fast and efficient separation of samples ranging from 0.2ml to 5ml. The unit features a 14-second acceleration/deceleration time, temperature monitoring, automatic lid opening, and a 3.5-inch LCD display for real-time parameter monitoring.

Key Features & Benefits
  • Max. Speed 14800rpm / RCF 21000×g Handles high-speed separation for a wide range of samples
  • Acceleration/Deceleration ≤14s Saves time and increases lab throughput
  • Rotor capacity 18×5ml (standard) Also supports 24×1.5/2ml, 8×0.5ml, 8×0.2ml, and 4×8×0.2ml strip tubes
  • 3.5″ LCD display Shows speed, RCF, time, ramp rate, error codes, chamber temperature, and rotor capacity
  • Temperature monitoring & chamber cooling Protects sensitive samples with real-time temperature detection
  • Automatic lid opening after run Allows sample cooling without manual intervention
  • Instant centrifugation (Pulse) function Quick short spins for convenience
  • Low noise ≤60dB(A) Quiet operation, suitable for shared labs
  • AC variable frequency motor Maintenance-free, durable, and reliable
  • Circulating air duct design Controls temperature rise within 5°C during use
  • High-strength corrosion-resistant rotor Autoclavable (without rotor lid)
  • Compact dimensions 360×245×230mm, weight ≤12kg
  • Universal power supply AC110V±10% 60Hz / AC220V±10% 50-60Hz
Technical Specifications
Model 1-14 Max. speed 14800 rpm
Max. RCF 21000 ×g Max. capacity 18 × 5ml (fixed angle rotor)
Acceleration / deceleration time ≤14 seconds (both) Noise level ≤60 dB(A)
Time control 1s – 99min59s Display 3.5″ LCD
Temperature monitoring Yes,real-time chamber temperature Auto lid open Yes, 1s after run ends
Pulse function Yes Power consumption 500W
Power supply AC 110V±10% 60Hz / AC 220V±10% 50-60Hz Dimensions (L×W×H) 360 × 245 × 230 mm

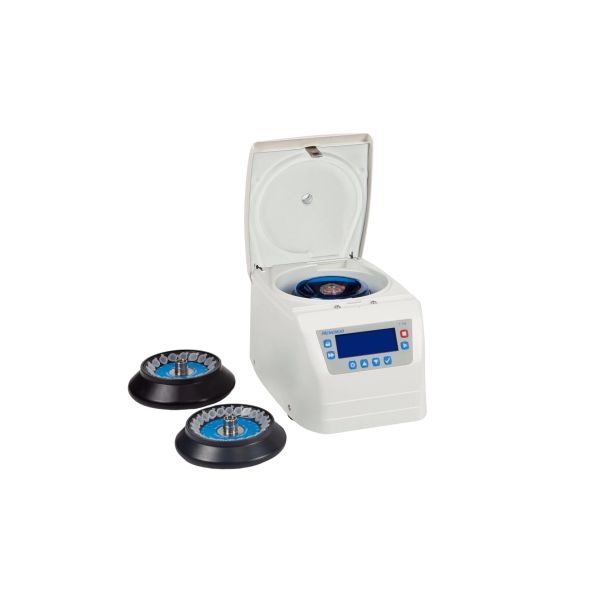

Rotor Configurations
Rotor Type Capacity Max Speed Max RCF PO No.
Fixed angle rotor #1 18 × 5ml 14800 rpm 21000 ×g 011800050
Fixed angle rotor #2 24 × 1.5/2ml 14800 rpm 21000 ×g 012400020
Additional adapters available 8×0.5ml, 8×0.2ml, 4×8×0.2ml (PCR strips) – – –

Note: All rotors are high-strength, corrosion-resistant, and autoclavable .

What’s Included
  • 1 × Hengnuo 1-14 Micro High-Speed Centrifuge main unit
  • 1 × Fixed angle rotor #1 (18×5ml)
  • 1 × Power cord (AC220V or AC110V according to destination)
  • 1 × User manual (English)
  • 1 × Warranty card

Optional: Rotor #2 (24×1.5/2ml) and adapters for 0.5ml / 0.2ml / PCR strips available upon request.

Certification & Quality
  • CE certified
  • ISO quality system certified
  • Class I medical device production qualification
  • Invention patent No. 202110927974.4
Applications
  • Life science research (DNA/RNA extraction, protein purification)
  • Medical laboratories (blood separation, urine analysis)
  • Chemical and pharmaceutical industry
  • Clinical diagnostics
  • Academic and research institutions
Why Choose Hengnuo 1-14?
  • Fast – 14s acceleration/deceleration saves time
  • Safe – Temperature monitoring, auto lid open, error code display
  • Smart – Large LCD shows all parameters at a glance
  • Quiet – ≤60dB(A) noise level
  • Reliable – AC variable frequency motor, corrosion-resistant rotors
  • Proven – 20+ years of R&D, patented core technology
Ordering Information
Item Description
Product model 1-14 Micro High-Speed Centrifuge
PO No. (main unit) 08141140
Rotor #1 PO No. 011800050
Rotor #2 PO No. 012400020
Power option Please specify: 110V/60Hz or 220V/50-60Hz
Frequently Asked Questions
1. Do you accept OEM or ODM service?

OEM and ODM services are both welcomed. We are a professional centrifuge manufacturer with over 8 years of OEM experience.

2. How about the delivery time?

Normally, delivery takes 20-30 days, depending on the quantity and mode of transportation.

3. What can you buy from us?

We offer a comprehensive range of centrifuge machines including high speed centrifuges, low speed centrifuges, refrigerating centrifuges, normal temperature centrifuges, benchtop centrifuges, floor-type centrifuges, mini centrifuges, centrifuge adapters, angle rotors, horizontal rotors, and more.

4. What delivery terms and payment types do you provide?

Accepted Delivery Terms: FOB, CIF, EXW, CFR. Accepted Payment Currency: RMB, USD, EUR, GBP, HKD. Accepted Payment Types: T/T, L/C, Western Union, Alipay, Cash. Languages Spoken: English, Chinese. We're always available to assist with any questions.

5. How about your after-sales service?

All questions are answered within 24 hours. As a professional centrifuge manufacturer, all products undergo strict quality inspection and proper packaging before delivery.
