Specifications
Work Plate Material :
Chemically Resistant PET
Reverse Rotation :
Automatic (FlatSpin)
Delivery Time :
5-15 days
Max Stirring Quantity :
0.8 L (FlatSpin), 1.5 L (EcoStir)
Protection Class :
IP21
Output Power :
3 W (FlatSpin), 1.2 W (EcoStir)
Brand Name :
Hengnuo/OEM LOGO
Speed Range :
15 - 1500 rpm (FlatSpin), 300 - 2000 rpm (EcoStir)
Dimensions :
175 x 120 x 15 mm (FlatSpin), 150 x 144 x 54 mm (EcoStir Square), 150 x 145 x 50 mm (EcoStir Round)
Operating Humidity :
80% RH
Operating Temperature :
5-40°C
Payment Terms :
L/C,T/T,Western Union
Electrode Holder :
Integrated (EcoStir)
Packaging Details :
Carton
Max Magnetic Bar Length :
40 mm
Net Weight :
0.3 kg
Model Number :
EcoStir
Speed Control :
Button Control (FlatSpin), Analogue Scale (EcoStir)
Voltage & Frequency :
100-240V, 50/60Hz (FlatSpin), 100-240V, 50/60Hz / DC 12V (EcoStir)
Certification :
CE, ISO, RoHs, FDA, FCC
Stirring Positions :
1
Form Factor :
Ultra-Flat (15mm)
Place of Origin :
China
MOQ :
1 set
Motor Type :
Motorless Technology (FlatSpin), Brushless DC Motor (EcoStir)
Power Consumption :
5 W (FlatSpin), 7.2 W (EcoStir)
Supply Ability :
20000 sets/year
Work Plate Dimension :
90 mm (FlatSpin), 120 x 115 mm (EcoStir Square), 120 mm (EcoStir Round)
Magnet Type :
Rare Earth Permanent Magnets (EcoStir)
Description
EcoStir Wholesale Magnetic Stirrer: Maintenance-Free Lab Liquid Mixer
Product Overview

Professional-grade magnetic stirrers designed for laboratory applications, featuring maintenance-free operation and superior chemical resistance.

Key Features
  • Maintenance-Free Brushless DC Motor: Premium brushless DC motor (EcoStir) or innovative motorless technology (FlatSpin) drastically reduces long-term maintenance and service costs.
  • Ultra-Silent & Vibration-Free Operation: Whisper-quiet performance ensures stable and comfortable laboratory environment during continuous operations.
  • Superior PET Top Work Plate: High-grade PET plate delivers exceptional chemical resistance against harsh acids, bases, and organic solvents.
  • Automatic Reverse Rotation (FlatSpin): Advanced built-in reverse mechanism optimizes mixing performance for demanding chemical analytical applications.
  • Powerful Rare Earth Magnets: High-coercivity rare earth permanent magnets ensure strong magnetic coupling, preventing stir bar decoupling.

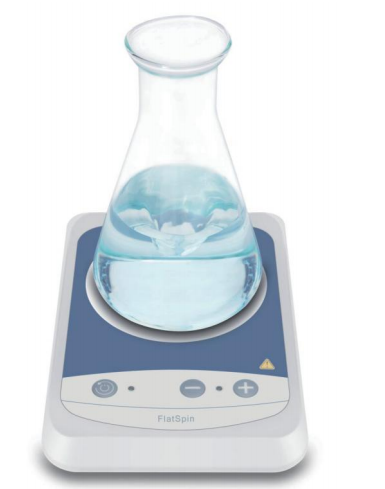

  • Ultra-Flat & Space-Saving Design: FlatSpin model features ultra-thin 15mm profile for minimal bench space and stackable storage.

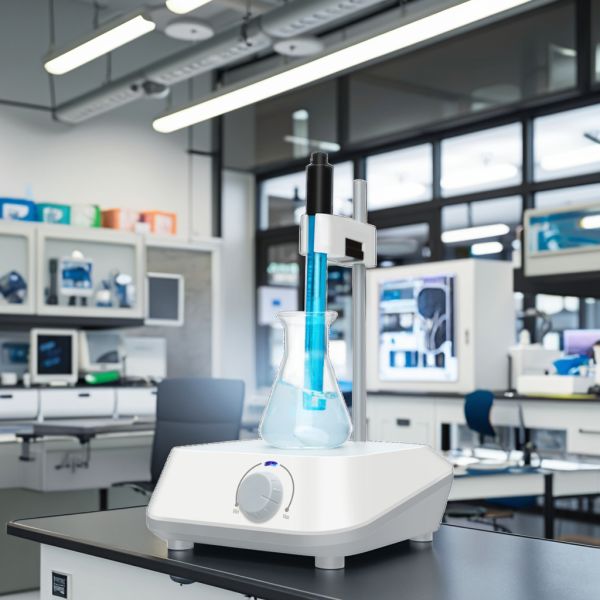

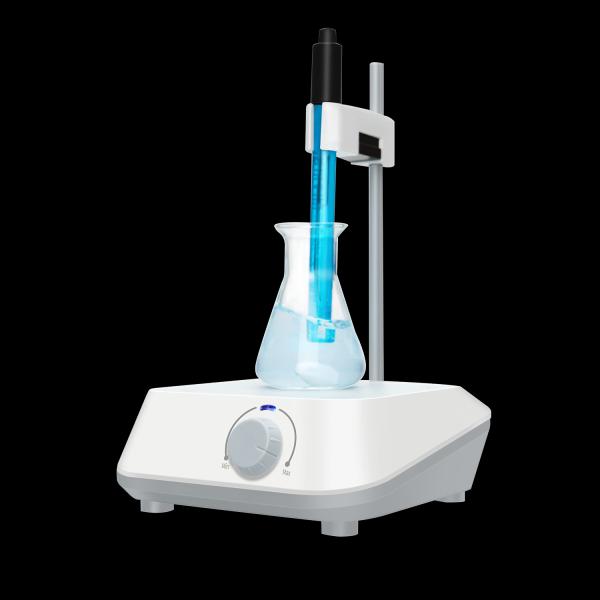

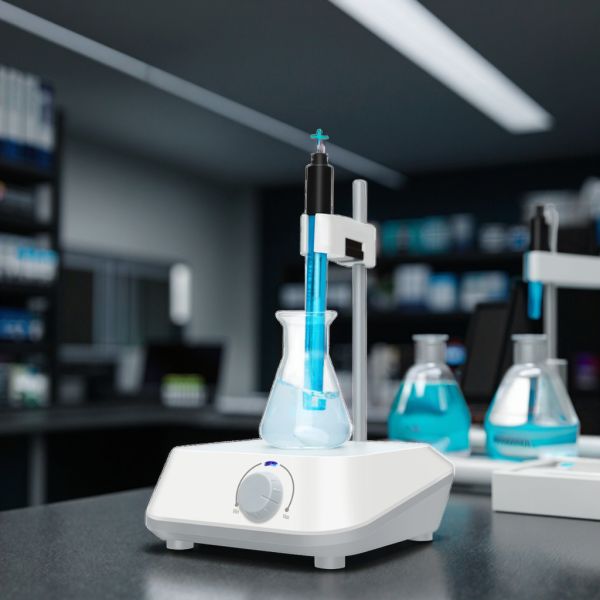

  • Versatile Sensor Integration: EcoStir models include integrated electrode holder/clamp for seamless attachment of pH sensors and analytical probes.
  • Mobile Lab Ready (12V DC Available): Dual power capability (100-240V AC or 12V DC) ideal for field research and mobile testing stations.
  • High-Capacity Scale Tuning: Stepless speed regulation up to 2000rpm, handling up to 1.5L of liquid mixing (H₂O).
  • Dust & Water Protection (IP21 Rated): IP21 protection class protects internal electronics from vertical water drops and condensation.
Technical Specifications
Technical Parameters FlatSpin (Ultra-Flat) EcoStir (Square Plate) EcoStir (Round Plate)
Work Plate Dimension 90 mm 120 x 115 mm 120 mm
Work Plate Material Chemically Resistant PET Chemically Resistant PET Chemically Resistant PET
Motor / Drive Type Motorless Technology Brushless DC Motor Brushless DC Motor
Stirring Positions 1 1 1
Max. Stirring Quantity (H₂O) 0.8 L 1.5 L 1.5 L
Max. Magnetic Bar Length 40 mm 40 mm 40 mm
Speed Range 15 - 1500 rpm 300 - 2000 rpm 300 - 2000 rpm
Speed Setting / Display Button Control Analogue Scale Analogue Scale
Protection Class IP21 IP21 IP21
Power Consumption 5 W (Output: 3 W) 7.2 W (Output: 1.2 W) 7.2 W (Output: 1.2 W)
Voltage & Frequency 100-240V, 50/60Hz 100-240V, 50/60Hz / DC 12V 100-240V, 50/60Hz / DC 12V
Dimensions (W x D x H) 175 x 120 x 15 mm 150 x 144 x 54 mm 150 x 145 x 50 mm
Net Weight 0.3 kg 0.3 kg 0.3 kg
Operating Conditions 5-40°C, 80% RH 5-40°C, 80% RH 5-40°C, 80% RH
IP21 Lab Vortex Mixer 15rpm - 1500rpm Magnetic Stirrer Machine
Target Applications
  • Analytical Chemistry & Titration: FlatSpin's motorless, zero-vibration build is ideal for bottle-top burette titration setups.
  • Environmental & Water Quality Monitoring: Compact footprints and 12V DC compatibility for environmental field test kits and river monitoring stations.
  • Electrochemistry Measurements: EcoStir series with specialized pH electrode holder for precise laboratory pH testing.
  • Biotechnology & Pharma Liquid Culture: Ideal for uniform reagent preparation, cell culture media mixing, and general solution preparation.
Partnership Benefits
  • Zero-Maintenance Design, Low After-Sales Costs: Eliminates carbon brushes and mechanical wear parts, reducing field failures and maintenance costs.
  • Full International Compliance for Tenders: Global voltage support (100-240V) with universal ratings for government educational and medical tenders.
  • Flexible OEM & Customization: Customized top plate designs and colored stickers for brand positioning and laboratory personalization.
  • Reliable Supply Chain & Bulk Margins: Substantial profit margins for distributors and wholesalers with guaranteed spare parts availability.
Technology Comparison
Comparison Features Our Premium Micro Stirrers (FlatSpin/EcoStir) Traditional Laboratory Magnetic Stirrers
Drive Technology Advanced Motorless & Brushless DC (BLDC) Traditional Brushed Motors
Maintenance & Longevity Zero-maintenance required. No carbon brush wear. High wear; requires frequent brush replacement and lubrication.
Acoustic & Vibration Profile Ultra-silent and completely vibration-free, ensuring ultra-precise analytical measurements. Noticeable motor humming and slight micro-vibrations that can destabilize high-precision probes.
Form Factor & Weight Ultra-flat (15mm) and ultra-lightweight (0.3kg); highly suitable for mobile labs and stackable storage. Heavy, bulky chassis that consumes substantial lab bench real estate.
Total Cost of Ownership High upfront reliability translates to virtually zero after-sales service costs for distributors. Low initial price but high long-term costs due to repairs and downtime.
Looking to upgrade your laboratory equipment portfolio or bidding on a medical/educational tender? Contact our B2B Sales Department today for custom bulk pricing, factory-direct quotes, and technical compliance data sheets. Click "Inquire Now" or email our wholesale desk for a sample evaluation package.
