80rpm - 1500rpm Digital Hot Plate Stirrer 7 Inch LCD Heated Magnetic Stirrer
80rpm - 1500rpm Digital Hot Plate Stirrer 7 Inch LCD Heated Magnetic Stirrer
80rpm - 1500rpm Digital Hot Plate Stirrer 7 Inch LCD Heated Magnetic Stirrer
80rpm - 1500rpm Digital Hot Plate Stirrer 7 Inch LCD Heated Magnetic Stirrer
80rpm - 1500rpm Digital Hot Plate Stirrer 7 Inch LCD Heated Magnetic Stirrer
80rpm - 1500rpm Digital Hot Plate Stirrer 7 Inch LCD Heated Magnetic Stirrer
80rpm - 1500rpm Digital Hot Plate Stirrer 7 Inch LCD Heated Magnetic Stirrer
80rpm - 1500rpm Digital Hot Plate Stirrer 7 Inch LCD Heated Magnetic Stirrer
Specifications
Model Number :
MS7-H380-E
Work plate dimension :
184×184mm
MOQ :
1
Packaging Details :
Cardboard box
Speed range :
80-1500rpm
Supply Ability :
3-5days
Power :
900W
Certification :
ISO
Work plate material :
Aluminum cover with ceramic coating
Brand Name :
Neutral
Name :
Digital Hot Plate Stirrer
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Heating temperature range :
Room Temp.- 380℃, increment 1℃
Delivery Time :
10-15 work days
Place of Origin :
China
Max. stirring quantity :
20 L
Description

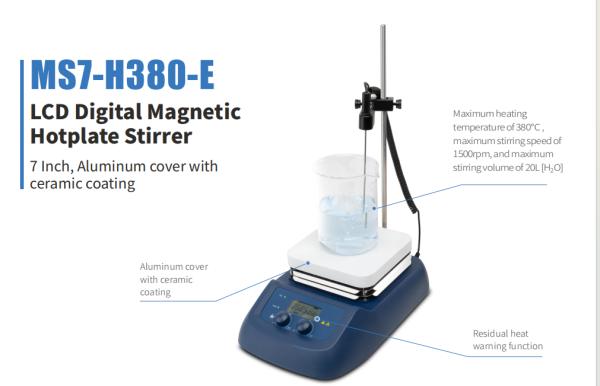

7 Inch LCD Digital Magnetic Hotplate Stirrer 20L Aluminum Cover MS7-H380-E
LCD Digital Magnetic Hotplate Stirrer
Features
  • Corrosion-resistant Ceramic Coated Aluminum Hot Plate - 178×178mm large heating surface with ceramic coating, excellent resistance to acid, alkali & organic solvents, smooth surface for easy cleaning, uniform & fast heat transfer.
  • Spill-proof Guided Platform Design - Sloped drainage structure diverts spilled liquid outward, prevents liquid penetration into internal circuit boards to extend machine service life.
  • High Volume Mixing Capacity - Max stirring volume up to 20L water, max heating temperature 380℃, adjustable stirring speed 0-1500rpm, ideal for large-volume & high-temperature reactions.
  • Clear LCD Digital Display - Simultaneously shows stirring speed, temperature & timer; two independent control knobs for separate heat & stir adjustment, user-friendly operation.

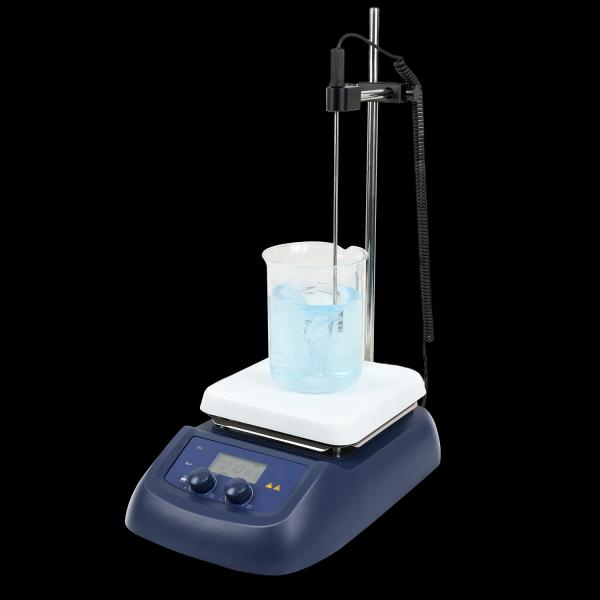

  • Compatible with PT1000 External Temperature Sensor - External PT1000 probe immerses directly into samples to monitor real liquid temperature, eliminates temperature deviation between plate & solution.
  • Multi-layer Safety Protection - Built-in dry-burn prevention, overcurrent, earth fault & overtemperature protection; auto power-off under abnormal conditions to avoid lab hazards.
  • Residual Heat Warning Function - Flashing "HOT" alert on screen when plate temperature exceeds 50℃; warning remains active even after power cut to prevent scald injuries.
Specifications
Item Parameter
Model MS7-H380-E
Work plate dimension 184×184mm
Work plate material Aluminum cover with ceramic coating
Motor type DC brush motor
Stirring positions 1
Max. stirring quantity [H2O] 20 L
Max. magnetic bar [length] 80×10mm
Speed range 80-1500rpm
Speed display LCD
Temperature display LCD
Display resolution 1rpm
Heating temperature range Room Temp.- 380℃, increment 1℃
Temperature display resolution ±0.1℃
Heating liquid temperature control accuracy ±1℃(＜100℃)±1%(＞100℃)
Overheating temperature protection 410℃
External temperature sensor PT1000
External temperature sensor accuracy PT1000 (accuracy±0.2℃)
Power 900W
Voltage, Frequency 100-120V,60Hz; 200-240V,50Hz
Hot warning 50℃
Protection class IP21
Dimension [WxDxH] 366×240×126mm
Weight 3.5Kg
Permissible ambient temperature and humidity 5-40℃, 80%RH
