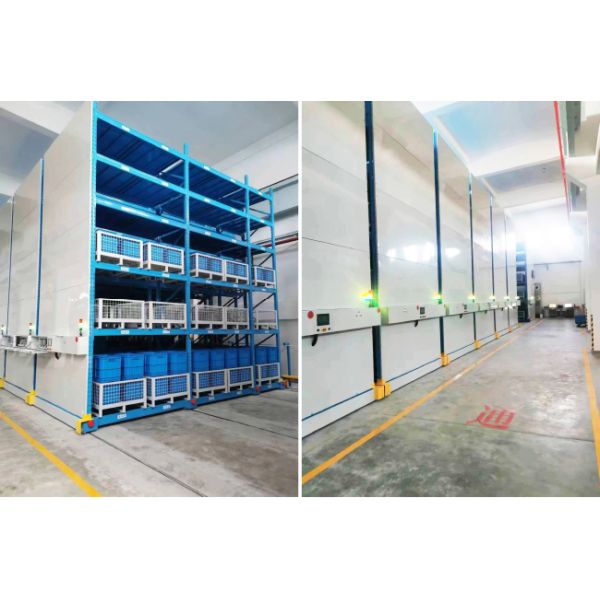

Electric Mobile Racking

—

Rail-Guided / Closed Type / Ground Track Guidance

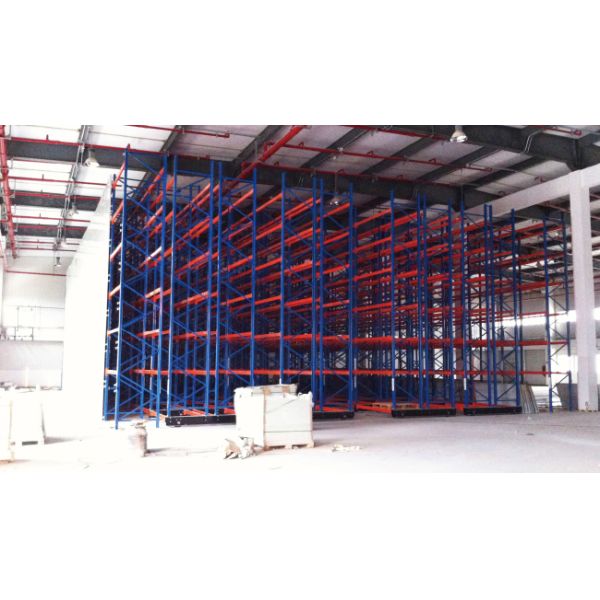

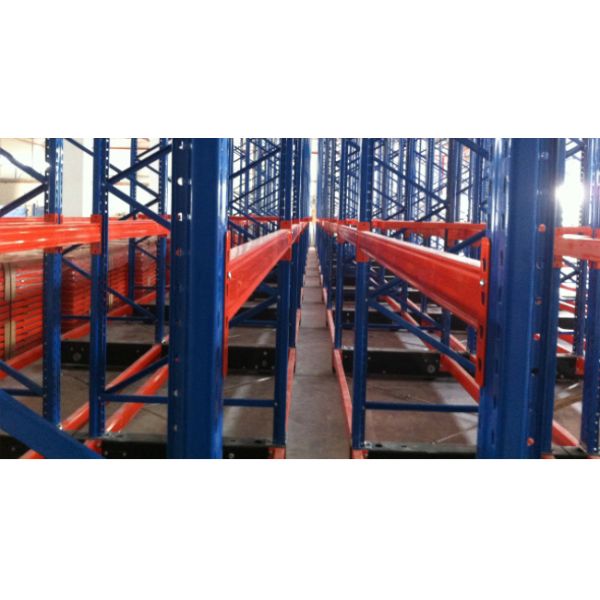

Electric mobile racking system is a high-density system for optimizing the space in the warehouse, where the racks are put on mobile chassis guided through tracks on the floor.The chassis is equipped with motor enabling the racks to move along the tracks, leaving the opening for the forklift to access. Opening of only one aisle is required instead of many aisles for forklift to go through as in traditional selective racking system.Upright frames are fixed to the chassis, and beams are used to load the pallets and connect the uprights and chassis, sometimes shelves are used for storage of smaller items. Because the height a forklift could reach is often limited, this racking system is usually for warehouses with low and medium height.
The electric mobile racking system is equipped with PLC to execute commands from the remote control by the operator, smart functions like increasing the opening gap between chassis for better air circulation could be done through PLC programming, such functions make it a semi-automated racking system.

Electric Mobile Pallet Rack · Warehouse Storage Rack · Made In China

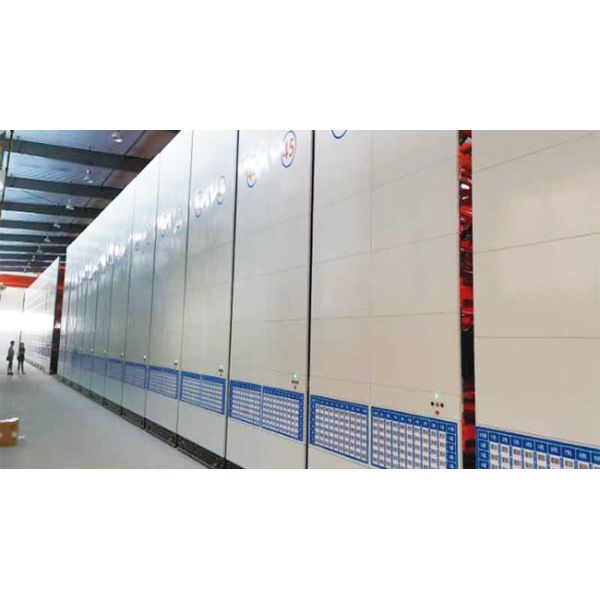

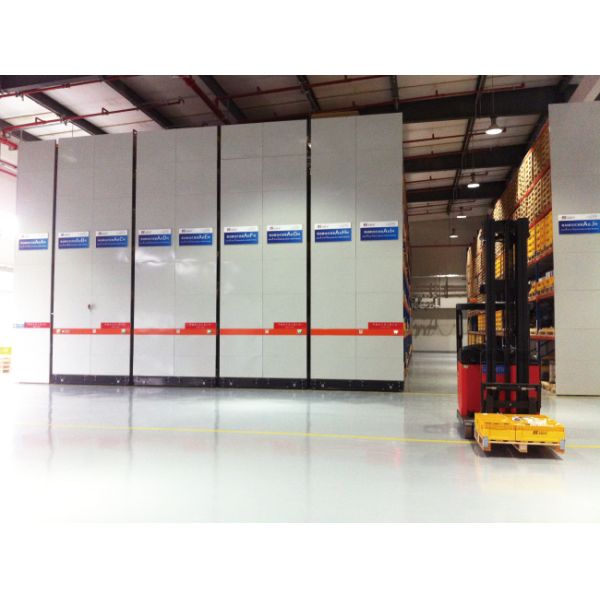

Closed Type

—

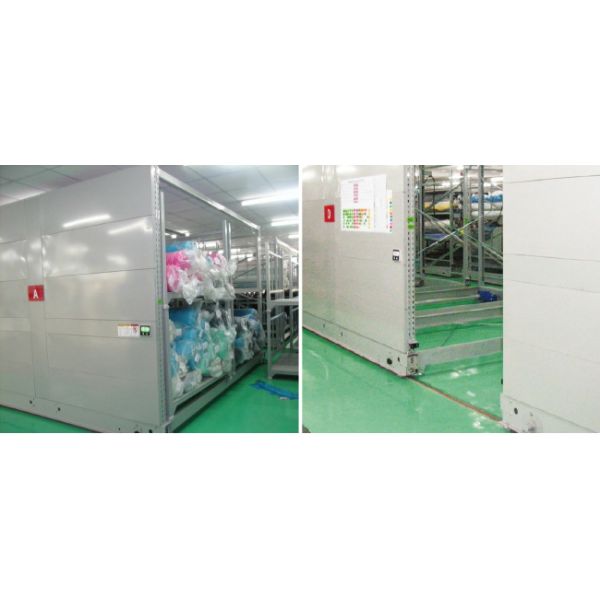

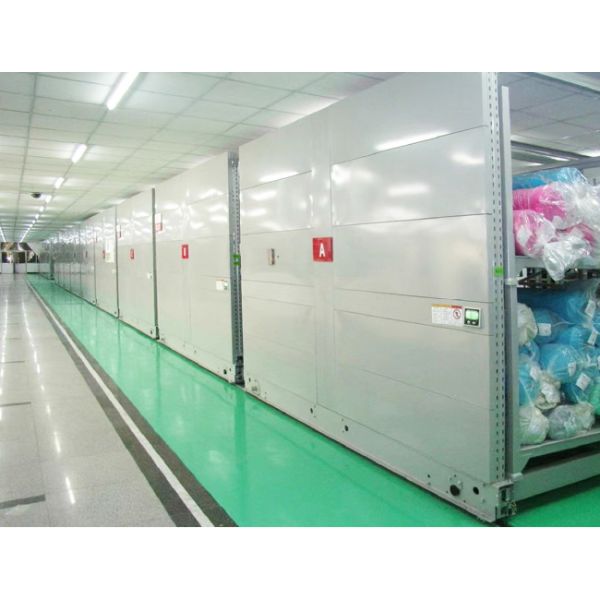

When the closed mobile racks do not need to access the goods, after the shelves are moved together, they are all closed and can be locked. Rubber seals are installed at the interface of each shelf, also known as closed shelves.

Electric Mobile Pallet Rack · Warehouse Storage Rack · Made In China

Advantages

—

1 ) Suitable for cold storage, explosion-proof and need higher warehouse utilization occasions;
2 ) No chain transmission, simple and reliable structure, low failure rate;
3 ) By computer control, automatic, semi-automatic, manual function;
4 ) Can realize single column movement; multi-column group movement can be realized. Uniform dispersion can be achieved;
5 ) Single lane movement is available;multi-lanes movement is available;dispersed evenly is achievable;
6 ) Set up a channel, good sealing, expand the warehouse utilization space. Compared with ordinary shelves, it can improve the warehouse utilization rate of about 80%;
7 ) Fewer channels, no need to find channels when accessing goods, high storage efficiency;
8 ) The structure of the electric mobile rack is simple, the operation is simple, not only the operation process is safe and reliable, but also the emergency movement when the power is cut off;
9 ) Electric mobile racks only need to be equipped with forward forklifts or balanced forklifts to be used. Electric mobile shelves have low operation requirements for forklifts;
10 ) With anti earthquake dumping function;
11 ) Protective measures such as emergency stop switches, photoelectric access barriers, manual release systems, proximity sensors as well as photoelectric safety barriers are in place to ensure the safety of workers and goods;

Electric Mobile Pallet Rack · Warehouse Storage Rack · Made In China

Safety Protection Function

—

The mobile rack is operated manually or automatically by means of an integrated PLC system, The PLC software may be adapted to the client's specific needs or linked to client's WMS. Safety is guaranteed by a photoelectric beam system. mounted on mobile rack upright. Adding P&D locations may further increase the warehouse efficiency, resulting in a higher return on investment.

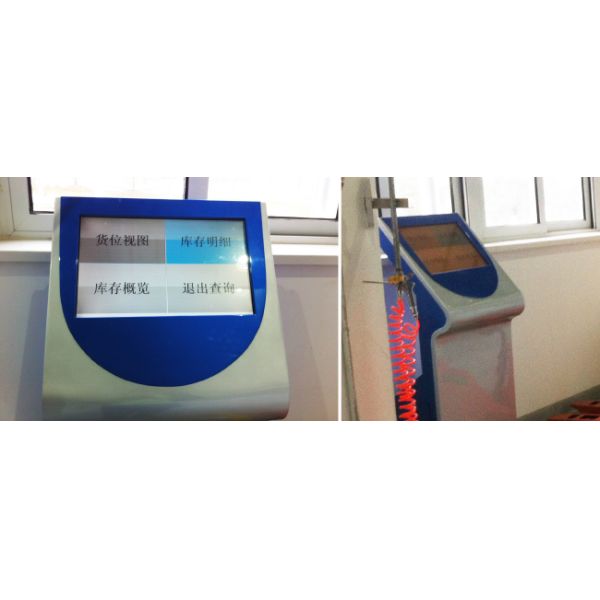

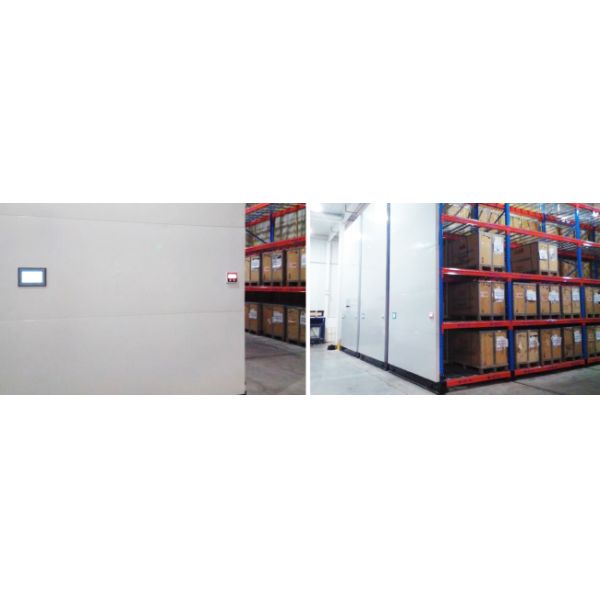

Touch Screeen And Operation Panelh

Electric Mobile Pallet Rack · Warehouse Storage Rack · Made In China

Technical Specifications

—

Electric Mobile Pallet Rack · Warehouse Storage Rack · Made In China

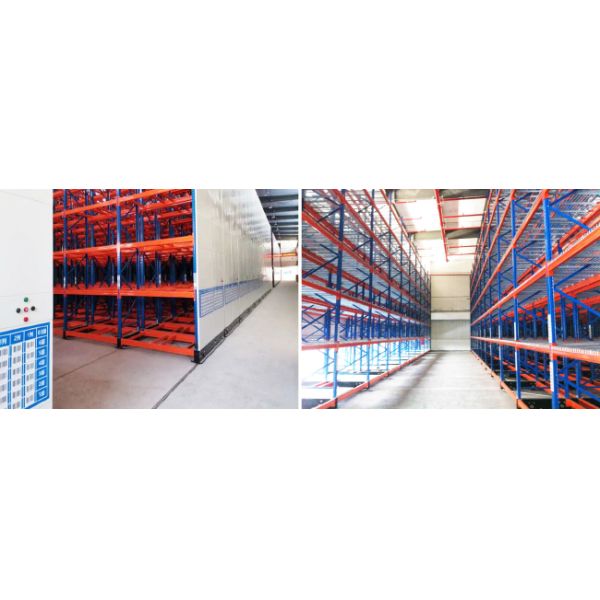

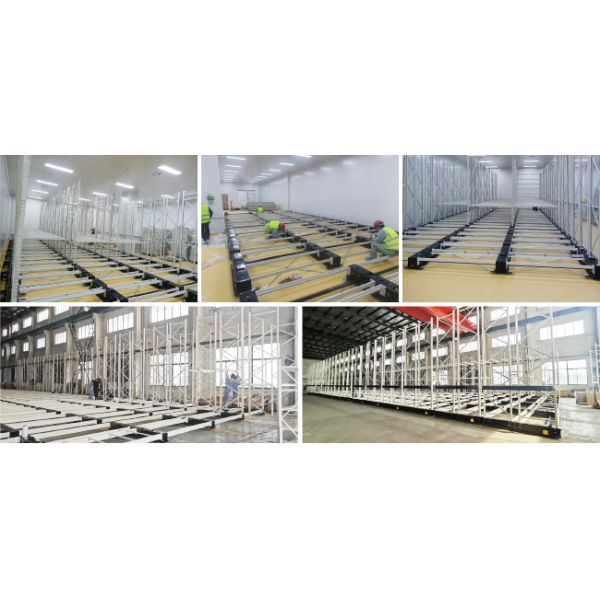

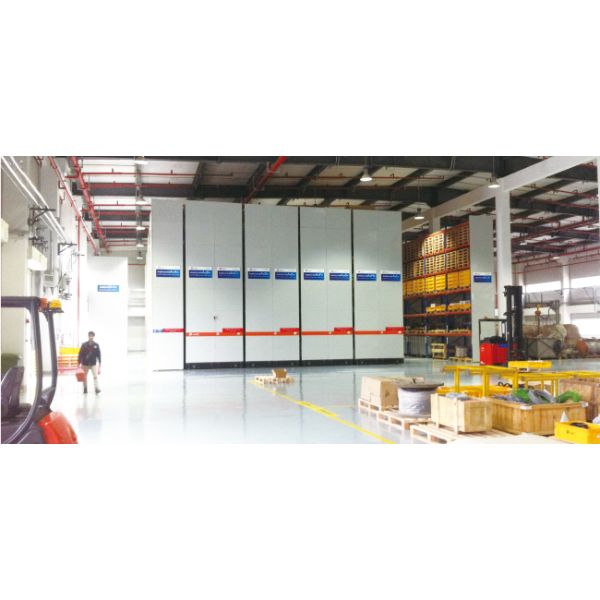

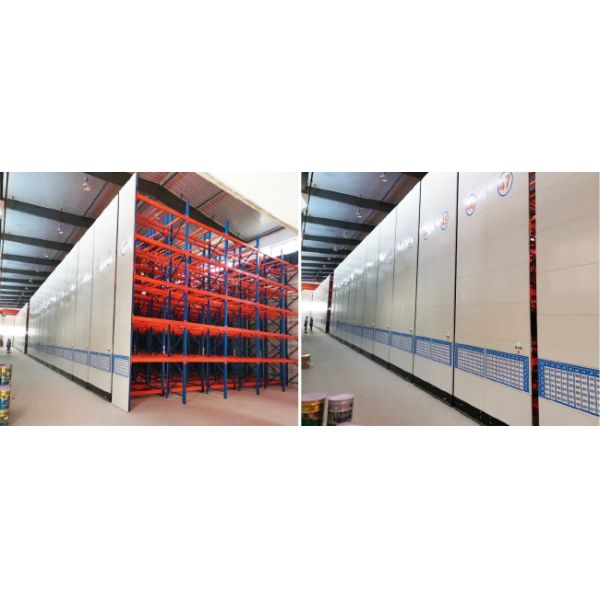

Engineering Case

—

Electric Mobile Pallet Rack · Warehouse Storage Rack · Made In China

Electric Mobile Pallet Rack · Warehouse Storage Rack · Made In China

Electric Mobile Pallet Rack · Warehouse Storage Rack · Made In China

Optional Accessories

—

Heavy Duty Pallet Rack · Warehouse Storage Rack · Made In China

Ensure the quality of Huayide racking products

—

Our factory has a product exhibition hall and on-site demonstration of vertical warehouse.

Welcome everyone visit and give guidance.
