Electric Mobile Telescopic Cantilever Racking Automatic Loading and Unloading Systems For Long Products Warehouse Storage Racking
Electric Mobile Telescopic Cantilever Racking Automatic Loading and Unloading Systems For Long Products Warehouse Storage Racking
Electric Mobile Telescopic Cantilever Racking Automatic Loading and Unloading Systems For Long Products Warehouse Storage Racking
Electric Mobile Telescopic Cantilever Racking Automatic Loading and Unloading Systems For Long Products Warehouse Storage Racking
Electric Mobile Telescopic Cantilever Racking Automatic Loading and Unloading Systems For Long Products Warehouse Storage Racking
Electric Mobile Telescopic Cantilever Racking Automatic Loading and Unloading Systems For Long Products Warehouse Storage Racking
Electric Mobile Telescopic Cantilever Racking Automatic Loading and Unloading Systems For Long Products Warehouse Storage Racking
Electric Mobile Telescopic Cantilever Racking Automatic Loading and Unloading Systems For Long Products Warehouse Storage Racking
Specifications
Brand Name :
Huayide
Model Number :
Electric Mobile Telescopic Cantilever Racking
Certification :
CE&ISO
Place of Origin :
China
MOQ :
1 set
Price :
USD1.1~1.29/KGS
Payment Terms :
L/C, T/T
Supply Ability :
900000KGS PER Month
Delivery Time :
10-20 working days
Packaging Details :
Plastic banding+Stretch film wrapped,easy loading and unloading with standard forklift truck or pallet jack .
Material :
Steel
Specification :
6000mm/9000mm/12000mm
Number of floor :
Customized
Load single side per layer :
3T/5T
Mode of movement :
Linear guide rail + chain
Vertical lifting Speed :
9m/min
Inlet and outlet Speed :
12m/min
Plate Support :
optional selection
Description

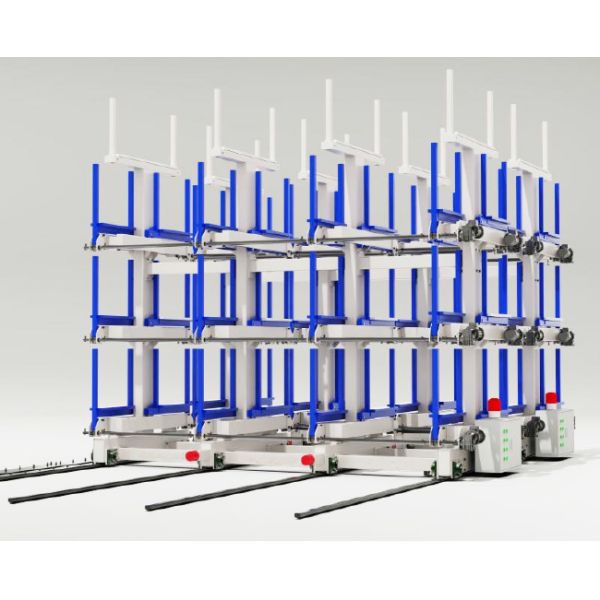

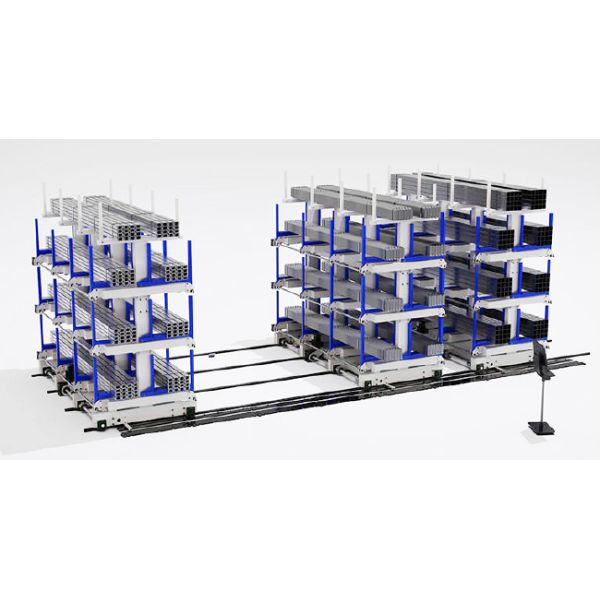

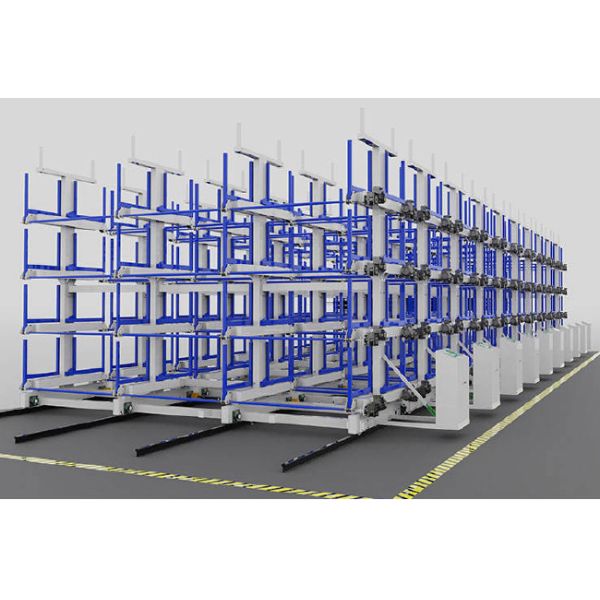

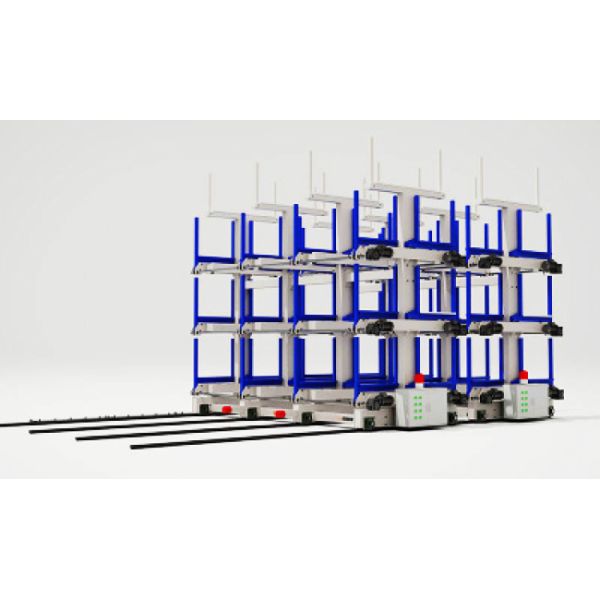

Electric Mobile Racking

—

Telescopic Cantilever Racking

Electric Mobile Telescopic Cantilever Racking Automatic Loading and Unloading Systems For Long Products Warehouse Storage Racking

Product Advantages

—

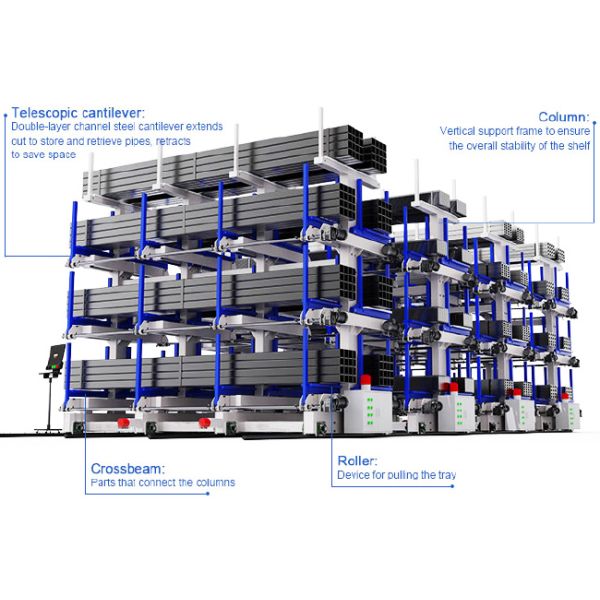

1. Rail-type telescopic cantilever shelves share a single ground rail,only one aisle is needed between the shelves for loading and unloading .
2. Suitable for storing long materials ,pipes,profiles,wires,bars and irregular goods.
3. Ground rail design features stable struture,good load-bearing capacity,and high space utilization.
4. Particularly suitable for warehouses with limited space and low height,easy to manage,wide field of view,and higher utilization rate than ordinary shelves.

Electric Mobile Telescopic Cantilever Racking · Made In China

Specification

—

Specifications

Load (single layer)

Size

Layers

Overall dimensions

HYD6053D

3t

6m

4+1(Bilateral assistance)

6435x3340x1750mm

HYD9055S

5t

9m

4+1(Unilateral assistance)

9435x3340x1550mm

HYD9055D

5t

9m

4+1(Bilateral assistance)

9435x3340x1750mm

HYD12055D

5t

12m

4+1(Bilateral assistance)

12435x3340x1750mm

Note: Both manual and electric can be customized, and the load-bearing capacity, length, number of layers, and layer height can be customized.

Electric Mobile Telescopic Cantilever Racking · Made In China

Electric Mobile Telescopic Cantilever Racking Automatic Loading and Unloading Systems For Long Products Warehouse Storage Racking

Electric Mobile Telescopic Cantilever Racking Automatic Loading and Unloading Systems For Long Products Warehouse Storage RackingElectric Mobile Telescopic Cantilever Racking Automatic Loading and Unloading Systems For Long Products Warehouse Storage RackingElectric Mobile Telescopic Cantilever Racking Automatic Loading and Unloading Systems For Long Products Warehouse Storage Racking

Electric Mobile Telescopic Cantilever Racking · Made In China



Electric Mobile Telescopic Cantilever Racking · Made In China

Ensure the quality of Huayide racking products

—



1 The raw material of the shelf is customized from China's large steel group of high quality carbon steel, durable and strong, to ensure the quality of the product from the source.
2 The shelf welding adopts dioxygen protection welding, the welding joint has good cracking resistance, small welding deformation, beautiful forming, and does not need slag cleaning.
3 Each column and beam of the shelf are designed by professional personnel with professional technology and cut by professional equipment, so as to ensure the accurate size of the shelf.
4 Professional spray before treatment, oil removal, rust removal, phosphating, powder, and then in high temperature oven baking molding, wear-resistant, rust proof.

Electric Mobile Telescopic Cantilever Racking Automatic Loading and Unloading Systems For Long Products Warehouse Storage Racking

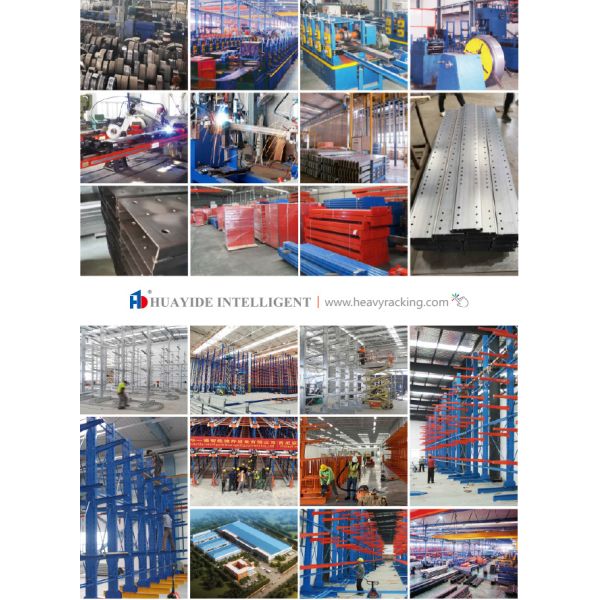

Our factory has a product exhibition hall and on-site demonstration of vertical warehouse.

Welcome everyone visit and give guidance.
