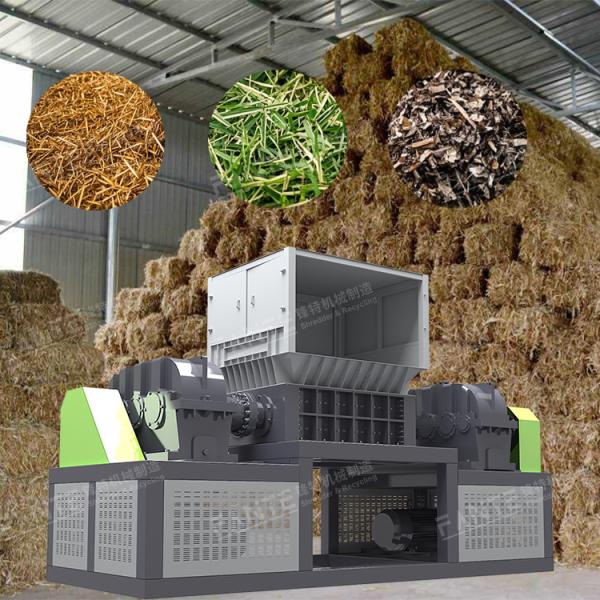

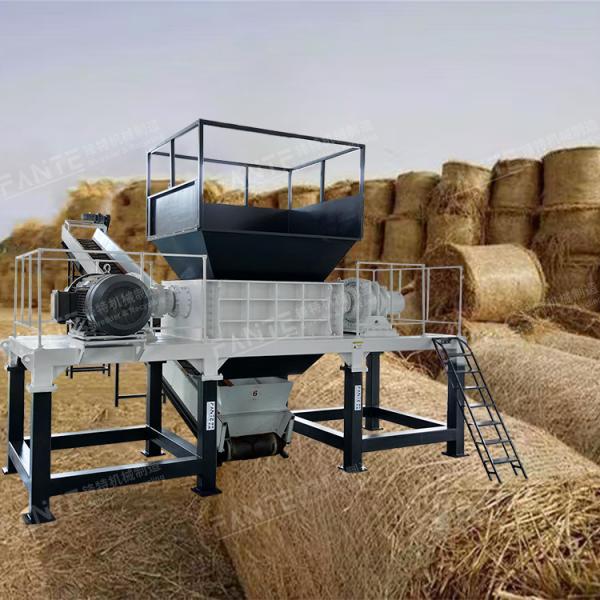

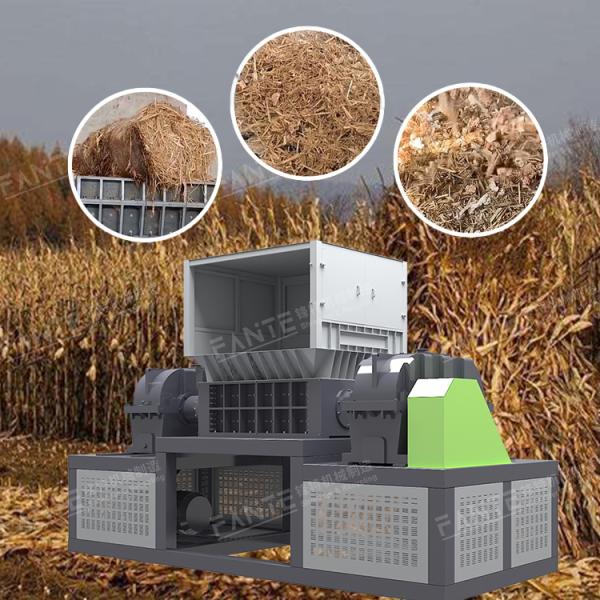

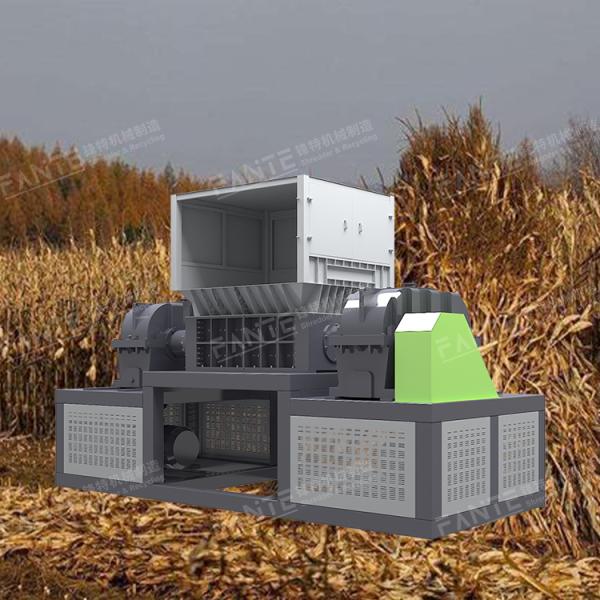

Straw & Hay Shredder for Sustainable Farming Support Zero-Waste Agriculture Practices

Specifications

Place of Origin :

Jiangsu, China

plastic type :

PVC, PET, ABS, PP/PE, PE, PP

Brand Name :

Fante

use :

Other

shaft design :

Double

voltage :

380V

dimension(l*w*h) :

5600x2250x2100mm

power (kw) :

weight (t) :

warranty :

2 years

key selling points :

High Safety Level

machinery test report :

Provided

video outgoing-inspection :

Provided

core components :

Bearing, motor, Gear, PLC

Application :

Recycle Waste Biomass

Name :

Biomass shredder machine

Usage :

waste Agriculture shredding and recycling

Warranty :

12 Months

Color :

Client's Requirements

Crushing material :

Types Waste Biomass

Blades material :

9CrSi/D2/SKD-11/ Customized

Other name :

Double Shaft Biomass shredder

Final product :

3-10 Cm

Function :

Waste Biomass

Description

◼︎ The equipment is made up of two blades on two shafts that cut each other to meet the requirements of shredding materials. The size of the shredded material is related to the thickness and number of teeth of the shredded blade. The thinner the blade, the smaller the size of the shredded material. The more teeth the blade has, the shorter the length of the shredded material. ◼︎ The device adopts a low speed and high torque design, which has the characteristics of high shear force, good tearing effect, low noise, and good stability.

01.Chamber

The chamber is processed as a whole, with small error, high accuracy, and reduced vibration and strain. Arc baffles are installed on both sides of the case to ensure smooth discharge and improve output.

02.Shaft and Blade

It is made by multiple heat treatment and low temperature freezing heat treatment processes, with good overall toughness and hardness, ensuring cutting performance and service life. The fixed tool is installed by hook to optimize the tool replacement efficiency.

03.Bearing seal

The bearing pedestal adopts the method of assembling and disassem-bling, which is convenient to remove the moving knife, fixed knife, bearing and other parts, easy to maintain and replace the tool, and the sealing structure is used to block the broken material, grease, liquid material, and protect the bearing and gear, etc. Self-aligning roller bearing is adopted.

04.PLC

PLC is programmed independently and equipped with start, stop, forward, reverse and overload protection functions. The overall automation ensures safety and stability and saves labor costs.
