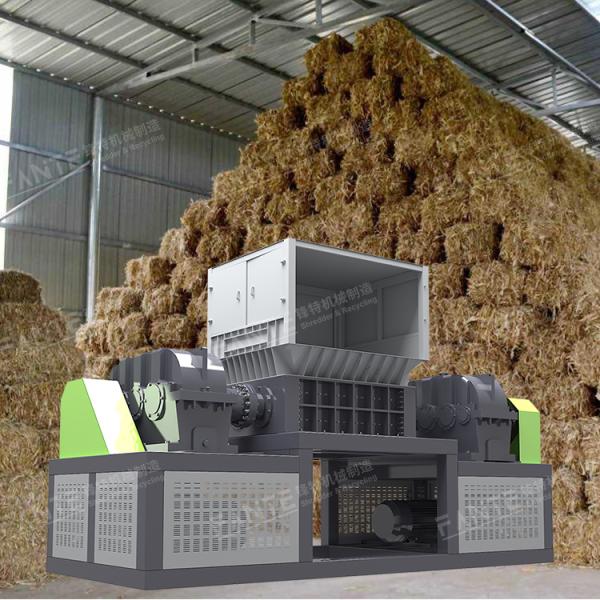

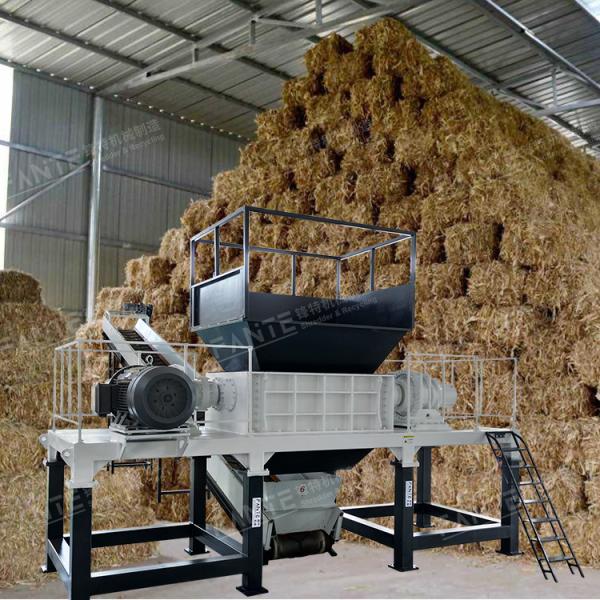

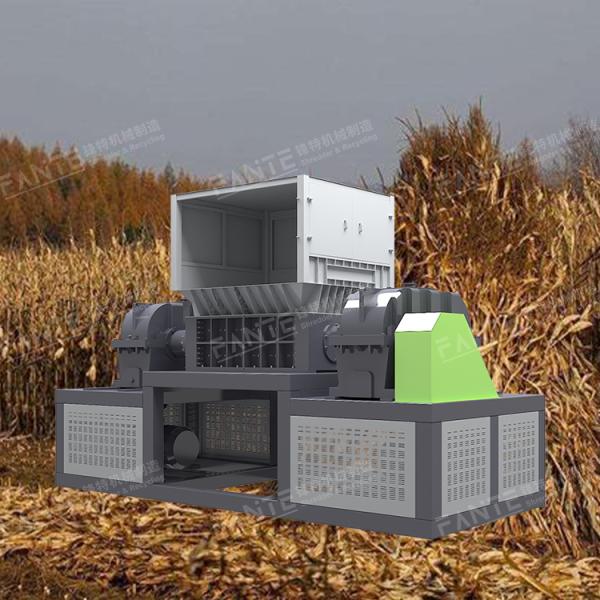

High Efficient Shredder Biomass Laboratory Crusher Straw Recycling Machine Fante
High Efficient Shredder Biomass Laboratory Crusher Straw Recycling Machine Fante
High Efficient Shredder Biomass Laboratory Crusher Straw Recycling Machine Fante
High Efficient Shredder Biomass Laboratory Crusher Straw Recycling Machine Fante
High Efficient Shredder Biomass Laboratory Crusher Straw Recycling Machine Fante
High Efficient Shredder Biomass Laboratory Crusher Straw Recycling Machine Fante
High Efficient Shredder Biomass Laboratory Crusher Straw Recycling Machine Fante
High Efficient Shredder Biomass Laboratory Crusher Straw Recycling Machine Fante
High Efficient Shredder Biomass Laboratory Crusher Straw Recycling Machine Fante
High Efficient Shredder Biomass Laboratory Crusher Straw Recycling Machine Fante
High Efficient Shredder Biomass Laboratory Crusher Straw Recycling Machine Fante
High Efficient Shredder Biomass Laboratory Crusher Straw Recycling Machine Fante
High Efficient Shredder Biomass Laboratory Crusher Straw Recycling Machine Fante
High Efficient Shredder Biomass Laboratory Crusher Straw Recycling Machine Fante
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
Fante
video outgoing-inspection :
Provided
machinery test report :
Provided
core components :
PLC, Engine, Bearing, Gearbox, motor
voltage :
380V
power(w) :
110
dimension(l*w*h) :
4600*1900*2700mm
warranty :
2 years
key selling points :
Long Service Life
weight (kg) :
8000
Capacity :
3T/h, 4t/h, 5T/h, 2T/H, 6t/h, 7t/h, 8t/h
Name :
Biomass Shredder
Application :
Crushing biomass
Product name :
Double Shaft Biomass Shredder
Raw material :
Straw Grass Wood Branches
Keywords :
Biomass Crusher
Function :
Recycling Shredding Waste Biomass
Usage :
Crush Biomass Waste Wood
Power :
18.5-2*90KW
Final product :
1-20cm
After-sales Service Provided :
Online Support
Description
High Efficient Shredder Biomass Laboratory Crusher Straw Recycling Machine Fante
High Efficient Shredder Biomass Laboratory Crusher Straw Recycling Machine Fante
High Efficient Shredder Biomass Laboratory Crusher Straw Recycling Machine Fante
High Efficient Shredder Biomass Laboratory Crusher Straw Recycling Machine Fante
High Efficient Shredder Biomass Laboratory Crusher Straw Recycling Machine Fante
High Efficient Shredder Biomass Laboratory Crusher Straw Recycling Machine Fante
◼︎ The equipment is made up of two blades on two shafts that cut each other to meet the requirements of shredding materials. The size of the shredded material is related to the thickness and number of teeth of the shredded blade. The thinner the blade, the smaller the size of the shredded material. The more teeth the blade has, the shorter the length of the shredded material. ◼︎ The device adopts a low speed and high torque design, which has the characteristics of high shear force, good tearing effect, low noise, and good stability.
Model
FTHS-600
FTHS-1000
FTHS-1200
FTHS-1600
FTHS-1800
FTHS-2000
Power(kw)
11-15
30-75
37-150
150-264
150-220
150-500
Breaking chamber length(mm)
600
1000
1200
1600
1800
2000
Blade Size(mm)
⌀300-⌀800





Reducer
ZSY Or Planetary reducer





High Efficient Shredder Biomass Laboratory Crusher Straw Recycling Machine Fante

01.Chamber

The chamber is processed as a whole, with small error, high accuracy, and reduced vibration and strain. Arc baffles are installed on both sides of the case to ensure smooth discharge and improve output.

02.Shaft and Blade

It is made by multiple heat treatment and low temperature freezing heat treatment processes, with good overall toughness and hardness, ensuring cutting performance and service life. The fixed tool is installed by hook to optimize the tool replacement efficiency.

03.Bearing seal

The bearing pedestal adopts the method of assembling and disassem-bling, which is convenient to remove the moving knife, fixed knife, bearing and other parts, easy to maintain and replace the tool, and the sealing structure is used to block the broken material, grease, liquid material, and protect the bearing and gear, etc. Self-aligning roller bearing is adopted.

04.PLC

PLC is programmed independently and equipped with start, stop, forward, reverse and overload protection functions. The overall automation ensures safety and stability and saves labor costs.
