Crimping Terminal 18pin High Density Connector
Crimping Terminal 18pin High Density Connector
Crimping Terminal 18pin High Density Connector
Crimping Terminal 18pin High Density Connector
Crimping Terminal 18pin High Density Connector
Crimping Terminal 18pin High Density Connector
Crimping Terminal 18pin High Density Connector
Crimping Terminal 18pin High Density Connector
Specifications
Model Number :
HEE-018-MC/HEE-018-FC
Place of Origin :
China
Currentrating :
16A per pin
Certification :
UL,COC,CE,UKCA,SGS,EAC,RoHS
Application :
Industrial Automation, Machinery
MOQ :
5pcs/30pcs/50pcs
Payment Terms :
T/T
Durability :
500Times
Contacts Nos :
18 + PE
Connector Type :
Ultra- High Density Connector
Operating Temperature :
-40°C to 125°C
Brand Name :
ZJHK
Housing :
H10B Series
Voltage Rating :
500V
Price :
$2.67/$2.5/$2.33
Delivery Time :
5~7 work days
Wire Connection :
Crimp
OEM :
Provided
Description
Crimping Terminal 18pin High Density Connector
The ZJHK HEE-018-MC and HEE-018-FC are 18-contact high-density inserts for 10B heavy-duty connector housings. The two versions form a male/female mating pair and use crimp termination, making wiring and maintenance relatively straightforward. They are rated at 16A and 500V, with 18 contacts plus PE, and support a wide range of wire sizes from 0.14 to 4.0 mm². The insert body is made of polycarbonate with UL94 V-0 flame-retardant performance, while the copper-alloy contacts can be silver- or gold-plated for stable electrical connection.
Technical Specifications
ColorGrey
MaterialPolycarbonate
Connector TypeCrimp
Current Rating16A
Insulation Resistance≤3MΩ
Max Operating Temperature125°C
Min Operating Temperature-40°C
Voltage Rating500V
Part Number Male09320183001
Part Number Female09320183101
Product Drawings

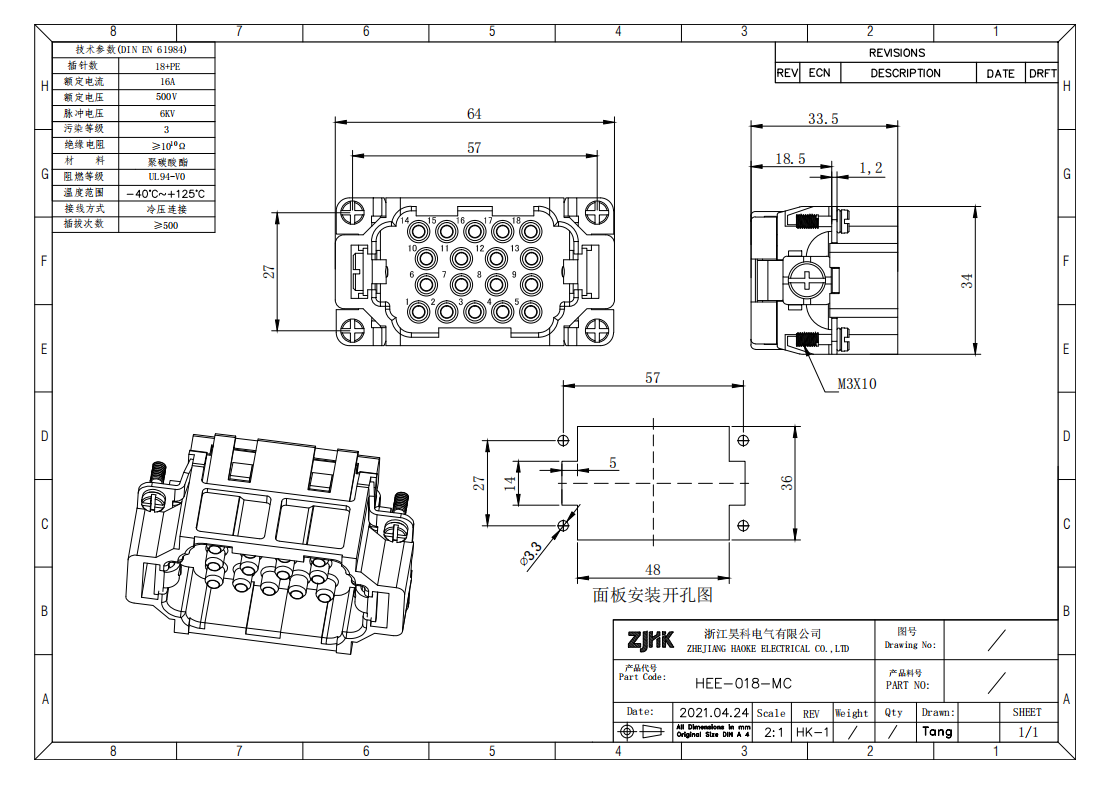

HEE-018-MC
Crimping Terminal 18pin High Density Connector

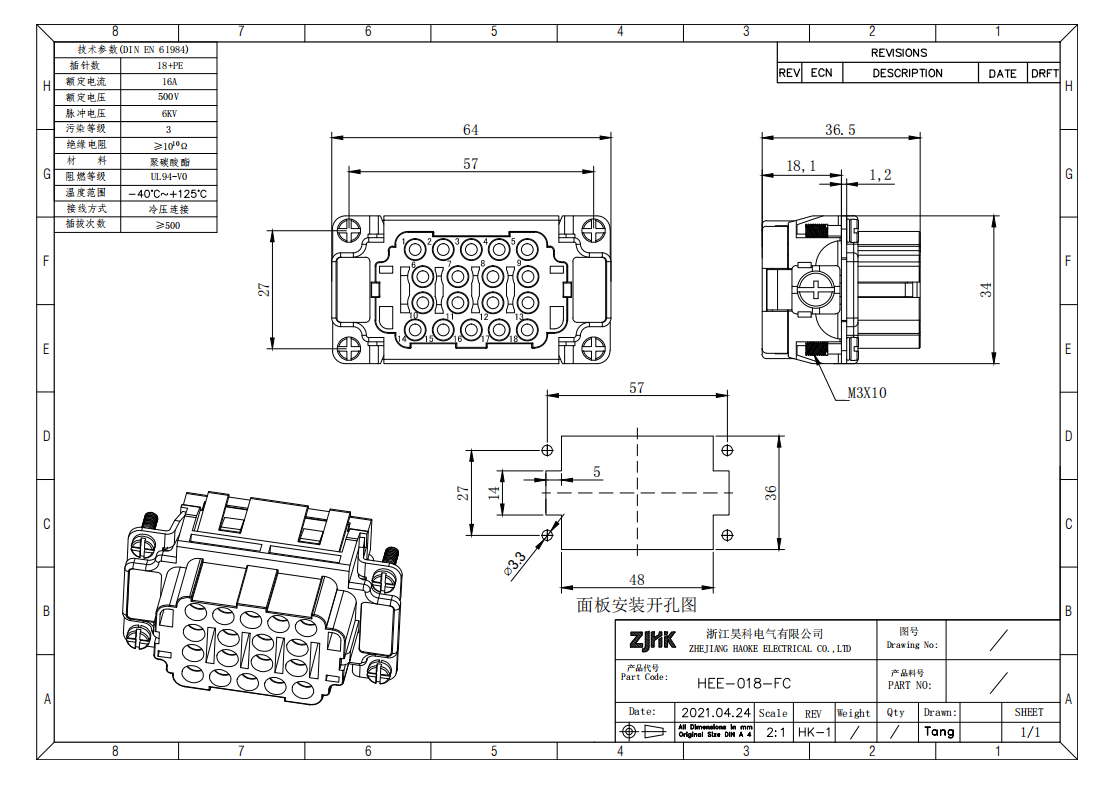

HEE-018-FC
Crimping Terminal 18pin High Density Connector

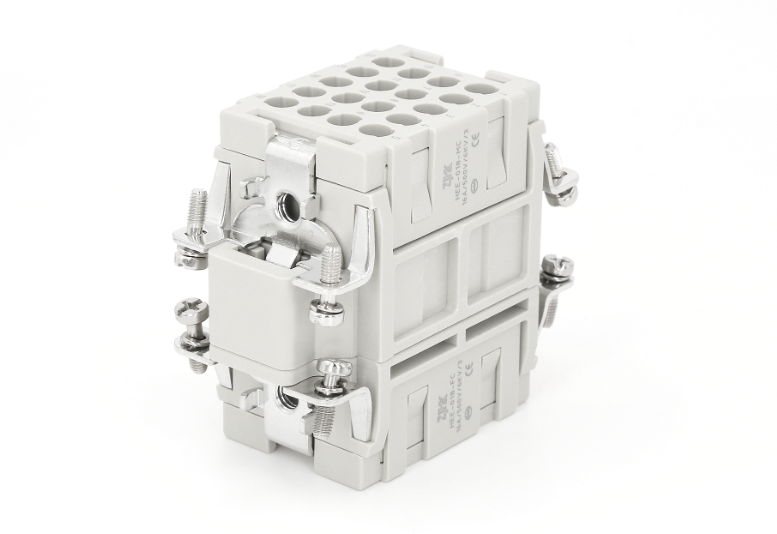

Product Overview
Crimping Terminal 18pin High Density Connector
With 18 contacts in a compact 10B format, the HEE-018 series is a good choice when more circuits are needed without taking up too much installation space. It can be used in industrial automation, machinery, control cabinets, power equipment and other applications where multiple circuits need to be connected in a compact connector.
Testing Equipment
Crimping Terminal 18pin High Density Connector
Crimping Terminal 18pin High Density Connector
Crimping Terminal 18pin High Density Connector
Certifications
Crimping Terminal 18pin High Density Connector
ZJHK products are supported by a comprehensive certification system, including UL, CE, RoHS, CQC, UKCA and EAC, together with ISO9001, ISO14001 and ISO45001 management system certifications. These certifications reflect our commitment to product safety, quality control and compliance with international market requirements.
Matching Contacts
Crimping Terminal 18pin High Density Connector
Rated Current: 16A
Gender: Male
Material: Copper with Silver
Wire Gauge: 0.37~4.0mm²
Crimping Terminal 18pin High Density Connector
Rated Current: 16A
Gender: Male
Material: Copper with Silver
Wire Gauge: 0.37~4.0mm²
Crimping Terminal 18pin High Density Connector
Rated Current: 16A
Gender: Male
Material: Copper with Silver
Wire Gauge: 0.37~4.0mm²
Crimping Terminal 18pin High Density Connector
Rated Current: 16A
Gender: Male
Material: Copper with Silver
Wire Gauge: 0.37~4.0mm²
Delivery and Packaging
Crimping Terminal 18pin High Density Connector
Crimping Terminal 18pin High Density Connector
We understand that reliable delivery is an important part of every industrial project. After order confirmation, we arrange production and shipment promptly and keep customers updated throughout the process. We work with reliable logistics partners and can provide express, air, sea, and land transportation options according to the order quantity, destination, and delivery requirements.
All products are carefully inspected before packing. Each connector is individually packed and protected to prevent damage during transportation, then securely packed into cartons suitable for international shipment. Once the packing is completed, we can provide the final packing list, carton dimensions, gross weight, and volume for your reference and shipping arrangements.
